Automatic Commercial 50ml Small Bottle CBD Oil Monoblock Liquid Filling Machine

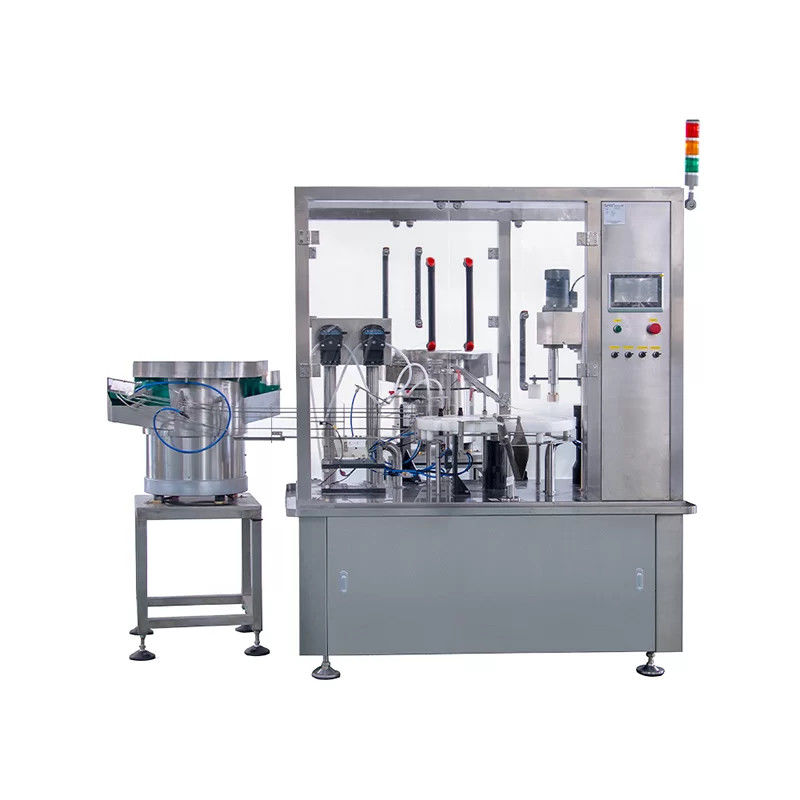

Automatic 50ml Small Bottle CBD Oil  Monoblock Liquid Filling Machine

The growing demand for CBD products has increased the need for reliable and precise CBD oil filling solutions. Designed for small-volume liquid packaging, the CBD oil filling machine provides accurate filling, capping, and labeling for a wide range of bottle types used in wellness, cosmetic, essential oil, and food industries.

With over 10 years of experience in liquid packaging technology, NPACK delivers efficient and cost-effective filling equipment tailored for free-flowing and slightly viscous liquids. The compact monoblock system combines filling, screw capping, and labeling functions in one machine, supporting bottle sizes from 5mL to 500mL with excellent accuracy and stable performance.

Equipped with an advanced peristaltic pump system, the machine allows quick product changeovers in less than two minutes without complex cleaning procedures. For different liquid viscosities, optional piston or flow meter filling systems are available to ensure precise dosing.

The complete CBD oil packaging line can apply up to two labels and achieve speeds of up to 60 bottles per minute. Featuring a user-friendly touchscreen control system with recipe storage, the machine offers easy operation, flexible adjustment, and efficient production for CBD oil bottles, essential oils, tinctures, cosmetic serums, and other liquid products.

Feature

1. A manipulator precisely adjusts the nozzles, optimizing the rate of feeding stoppers when using narrow-edge nozzles for enhanced efficiency.
2. The peristaltic pump filling process, controlled by a sophisticated single-chip system, delivers outstanding accuracy in dosing. This setup allows for on-the-fly dosage adjustments without needing to halt machine operations.
3. Designed as a compact monoblock unit, this machine integrates filling, feeding stoppers, and capping functions into one, conserving space while maintaining a simple yet elegant design. Its structure not only looks good but also simplifies the cleaning process.
4. The machine includes an accurate graduator for positioning, ensuring stable operation across bottles of various sizes, accommodating a versatile range of packaging needs.
5. It features a user-friendly touch panel control interface that enhances the machine's automation and ease of use. Speed variations are easily managed via an inverter, allowing for flexible operation.
6. An intelligent safety feature automatically stops the machine if bottles or caps are missing, preventing unnecessary filling or capping actions and reducing waste.

Parameter

Product Detials

Operation Process:

1. Material Preparation

Ensure an ample supply of bottles, plugs, covers, and liquid medicine. Vibrating hoppers maintain a continuous supply of plugs and covers, positioned both inside and outside the designated cover locations.

2. Bottle Feeding

Bottles are organized and directed by the bottle feeder turntable.

3. Filling

Bottles are carefully positioned for filling through oscillation, followed by intermittent drive for filling, stoppering, covering, and screw capping. Liquid filling is accomplished using a peristaltic pump and an automatically moving needle that precisely fills the liquid in the bottle.

4. Plugging

Plugs are delivered from a vibrating hopper to the stoppering station, where bottles are guided by wheel clearance. Optical fiber detection regulates the stoppering cylinder solenoid valve, ensuring proper stoppering.

5. Capping

Bottles with inserted plugs proceed to the capping station, where screw caps are applied using a cylinder-based mechanism. The screw caps are rotated and lowered until securely fastened, with torque adjustments made for optimal tightness.

6. Bottle Egress

Capped bottles are conveyed away from the machine via the conveyor belt, prepared for subsequent packaging procedures.

If you are interested in automatic cbd oil filling machine, please contact us
