5g-50g Single Head Lobe Pump Lotion Glass Cream Cosmetic Jar Filling Machine

Minimum Order Quantity : 1 Price : 5000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-MFC50

Detail Information


lotion filling machine cosmetic


cosmetic jar filling machine


Glass Jar Filling Machine

Product Description

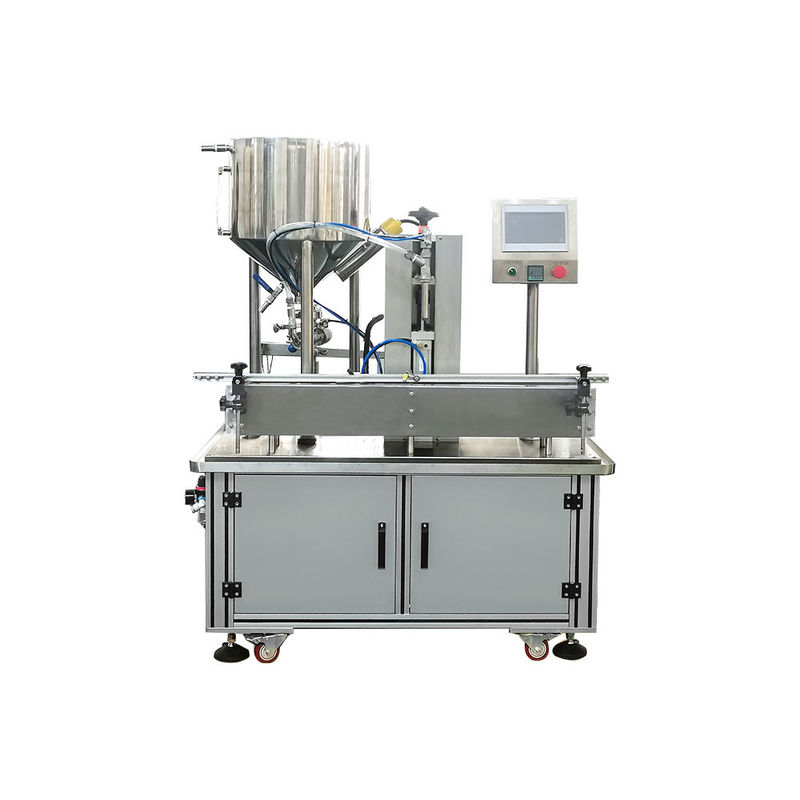

Automatic 5g-50g Single Head Lobe Pump Cosmetic Cream Glass Jar Filling Machine

Cosmetic refers to any substance utilized for the purpose of cleansing, enhancing, or altering the appearance of the complexion, skin, hair, nails, or teeth. Cosmetics encompass beauty products such as makeup, perfume, skin creams, and nail polish, as well as grooming aids like soap, shampoo, shaving cream, and deodorant.

 Cosmetic cream is also a type of cosmetics, but it has high viscosity and poor fluidity, with a general capacity of 10g-100g. Npack has launched our advanced automatic single head filling machine cosmetic cream, bidding farewell to the low efficiency of manual filling machine and embracing the future of beauty cream filling machine, ensuring accurate and efficient filling of each container.


This single head lobe pump filling machine offers high efficiency and precision, making it suitable for filling both thin and extremely viscous products without generating foam. It is adept at filling substances like sauce, paste, cream, cosmetics, honey, and more. Featuring a dedicated servo motor for driving the lobe pump and supplying products to each individual filling head, the machine is constructed with SUS304 & SUS316L materials, ensuring cleanliness and hygiene. It is easy to disassemble and clean. The filling heads incorporate anti-leakage and anti-dropping functions. Additionally, the filling machine can be equipped with a feeder for the automatic feeding of liquids or pastes into the hopper.



5g-50g Single Head Lobe Pump Lotion Glass Cream Cosmetic Jar Filling Machine 0

Main Feature

1. The automated single-head rotor pump filling machine comprises a PLC controller, servo motor, rotor pump, hopper, and filling head

2. Constructed entirely from 304 stainless steel, the entire machine utilizes food-grade materials for its contact surfaces. Filling volume and speed adjustments are easily made through the touchscreen, complemented by an aesthetically pleasing design.

3. This equipment offers robust compatibility, eliminating the need for part replacements. It facilitates swift adjustments and bottle replacements for various shapes and specifications, catering to the production needs of multiple varieties.

4. It supports an up-and-down movement type filling mechanism, effectively preventing the generation of foam.

5. Achieving a filling accuracy of ±0.5% (varies depending on the product), the machine employs a filling cylinder treated and ground with hard chromium, featuring a unique filling valve design that ensures no leakage.

6. Automatic cleaning functionality is incorporated, allowing for a one-time setup on the touchscreen to initiate automatic cleaning and sewage drainage without the need for manual disassembly.


Main parameter

Filling nozzles
1 nozzles
Filling range
10-500ml (customsized)
Filling accuracy
Hopper size
Working speed
Suitable bottle diameter
Suitable bottle height
Machine size
About 220*80*120CM
Machine weight
About 150kg


Product Details

5g-50g Single Head Lobe Pump Lotion Glass Cream Cosmetic Jar Filling Machine 1 5g-50g Single Head Lobe Pump Lotion Glass Cream Cosmetic Jar Filling Machine 2
5g-50g Single Head Lobe Pump Lotion Glass Cream Cosmetic Jar Filling Machine 3 5g-50g Single Head Lobe Pump Lotion Glass Cream Cosmetic Jar Filling Machine 4

Company Profile

With a heritage steeped in innovation and precision engineering, we proudly position ourselves as a premier manufacturer of sauce filling machines. Npack, as a specialized manufacturer, has refined its expertise in the creation of paste filling machines that establish industry benchmarks. Our machinery is meticulously crafted to cater to the varied requirements of the sauce processing and packaging sector.

Committed to staying at the forefront of sauce filling technology, we consistently invest in research and development to deliver the latest advancements. The Npack team is unwavering in its dedication to providing exceptional service and support throughout your association with us. Our reach extends globally, as we assist sauce processors and manufacturers in elevating their production capabilities.

After-sale Service

Our team of skilled technicians is ready to dispatch and install the cream filling machine. The service fee covers installation, travel, meal expenses, and so on.


For optimal performance of the paste filling machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.


When repairing the jar filling machine, expect efficient service, a one-year quality assurance period, parts supply, and swift feedback for troubleshooting.


4.Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the hot sauce filling machine.


5.Technical Support:
Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide quick feedback, ensuring you can be carefree.


6.Spare Part:
During transportation, we include a set of vulnerable spare parts for the filling machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time.
