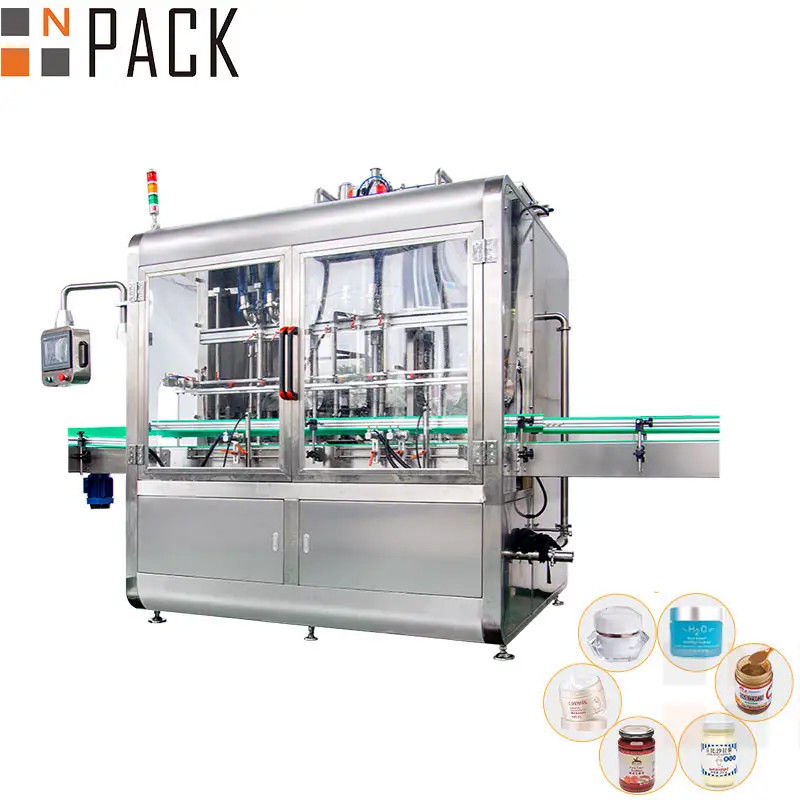

Automatic Lobe Pump Molasses Filling Machine
This automatic rotary lobe pump filling machine is specifically designed for accurately filling high-viscosity products such as molasses, syrup, honey, glucose, treacle, and other thick liquid products. Equipped with high-precision stainless steel rotary lobe pumps, the machine ensures consistent filling volumes while maintaining excellent product integrity.
Each filling pump is independently driven by a servo motor, providing exceptional filling accuracy, flexible volume adjustment, and stable performance. Operators can conveniently set and modify filling parameters through the touchscreen control system without requiring any mechanical adjustments.
The servo-driven diving nozzles move synchronously with the filling process, reducing foaming, splashing, and product dripping. This feature is particularly beneficial when handling sticky products like molasses that require clean and precise filling. The machine's hygienic design allows for easy cleaning and maintenance, making it suitable for food production environments.
Constructed entirely from food-grade SUS304 stainless steel, the machine offers excellent corrosion resistance and complies with food industry hygiene standards.
Features of Molasses Filling Machine
1.Advanced Rotary Lobe Pump Dosing System
The filling system utilizes high-precision rotary lobe pumps driven by servo motors, ensuring accurate and consistent filling of molasses, syrups, honey, and other viscous products. All filling parameters—including volume, filling speed, filling mode, suck-back function, and multi-stage filling profiles—can be easily adjusted through the intuitive touchscreen interface.
2. Anti-Drip Filling Nozzles
Pneumatically controlled shut-off nozzles effectively prevent dripping and stringing, ensuring clean filling performance when handling sticky products such as molasses and concentrated syrups.
3. Fast Cleaning and Product Changeover
Designed for maximum production flexibility, the rotary lobe pumps can be quickly disassembled and cleaned without complicated tools. This significantly reduces downtime and allows rapid switching between different products.
4.Intelligent Bottle Detection System
High-sensitivity photoelectric sensors accurately detect bottle presence and positioning, ensuring reliable and precise filling operations throughout the production process.
5. No Bottle, No Fill Technology
The PLC-controlled system automatically stops filling when no container is detected, minimizing product waste and improving production efficiency.
6. Recipe Storage Function
Multiple product recipes can be stored in the control system, enabling operators to recall preset parameters instantly. This reduces setup time, improves repeatability, and increases overall production efficiency.
Main parameter
|
Filling Volume
|
25ml-1000ml
|
|
Machine Construction Material
|
304SS
|
|
Voltage
|
220V ,50HZ, 1Phase (can be customer made)
|
|
Power
|
3.5 KW
|
|
Air Pressure
|
0.6MPa-0.8MPa
|
|
Accuracy
|
≤±0.5%
|
Molasses Filling Machine Applications
The fully automatic molasses filling machine is suitable for various container shapes and sizes, including plastic bottles, glass bottles, jars, and cans. It is widely used for filling:
- Molasses
- Sugar syrup
- Honey
- Maple syrup
- Corn syrup
- Glucose syrup
- Caramel sauce
- Chocolate syrup
- Date syrup
- Thick food sauces and concentrates
With its ability to handle both highly viscous and semi-liquid products, this machine provides an efficient and reliable filling solution for food processing manufacturers seeking improved productivity and consistent packaging quality.
Product Details
FAQ about Automatic Lobe Pump Molasses Filling Machine
1.What is the working principle of the lobe pump molasses filling machine?
