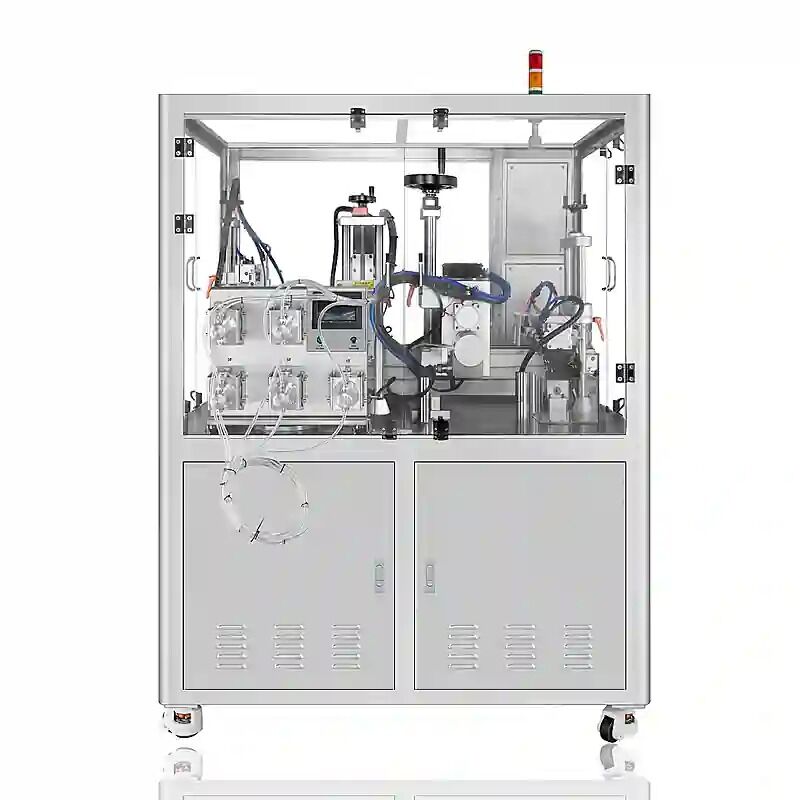

Automatic Mono-Dose Strip Tube Filling Sealing Machine with Touch Screen

Automatic Mono-Dose Strip Tube Filling and Sealing Machine Working Process

1.Auto Tube Feeding


The machine is fed automatically by a vibratory feeding system with pre-formed strip tubes.

2.Tube placement and orientation

The strip tubes are automatically positioned and oriented to ensure the correct direction of feeding and to avoid overlap or misalignment.

3.Mold Location

Each strip tube is loaded into a dedicated fixture and precisely aligned with the respective filling nozzles.

4.Detection of the tubes

Sensors determine the presence and position of each tube prior to filling. The No Tube, No Fill function helps reduce product waste, and ensures reliable operation.

5.Multi Head Accurate Filling


The product is dosed into each tube by several filling nozzles which work simultaneously, thus ensuring fast and consistent filling.

6.Anti-Drip and Suck Back

After filling, the suck-back function aids in reducing dripping, stringing and product residue around the tube opening, leaving the sealing area clean.

7.Securing the Tube

The ends of the tube are sealed ultrasonic or thermal sealing depending on the tube material and product requirements

8.Trimming the Tail

Any excess tube material is automatically trimmed to leave a clean, uniform and consistent finished edge.

9.Inspection and rejection by auto

Optional vision inspection, seal inspection, weight checking and automatic reject systems can be incorporated for quality control.

 10. Release of Finished Product


Finished strip tubes are automatically discharged onto the conveyor and can be linked with downstream equipment such as labeling, bagging, cartoning and case packing machines for complete line automation.

FAQ on Automatic Mono-Dose Strip Tube Filling and Sealing Machine

1. What is an automatic mono-dose strip tube filling and sealing machine?

This is an automatic packaging machine for filling and sealing preformed multi-lane strip tubes for single-dose liquid, semi-liquid and gel products.

2. What kind of strip tubes can the machine handle?

The machine is capable of making pre-formed 2-lane, 3-lane, 5-lane and customized strip-tube formats as per the tube design and production requirements.

3. What type of products can be filled in the mono-dose strip tubes?

It is suitable for gels, care liquids, drops, oral care products, pet care liquids and other unit-dose products.

4. How does the machine load more tubes?

Several filling nozzles work simultaneously to dose the product accurately into each tube, thus increasing filling efficiency and consistency.

5. Does the machine have several filling volumes?

Yes. Filling volume can be adjusted according to the product, tube size and required dose. Depending on the product characteristics, different dosing systems can be selected.

6. What sealing options do you offer?

Depending on the tube material, structure and product requirements, the machine can be equipped with ultrasonic sealing or thermal sealing.

7. Does the machine have a No Tube, No Fill feature?

Yes. When filling, sensors check for the presence and location of the tubes. If a tube is missing or wrongly placed, the filling operation corresponding to that tube can be stopped.

8. How to prevent dripping of the product after filling?

To reduce dripping, stringing, and product residue around the tube opening before sealing, an anti-drip or suck-back function can be set.

9. Can the machine check the finished strip tubes?

Yes. Quality control can be incorporated with optional vision inspection, seal inspection, weight checking and automatic rejection systems.

10. Can I customize the machine?

Yeah The machine can be adjusted to tube format, number of lanes, filling volume, product characteristics, sealing method and production capacity.

11. Can it be connected with other packaging equipment?

Yes. The machine can be combined with downstream equipment like labeling machines, bagging machines, cartoners and case packing systems to form a complete automated packaging line.
