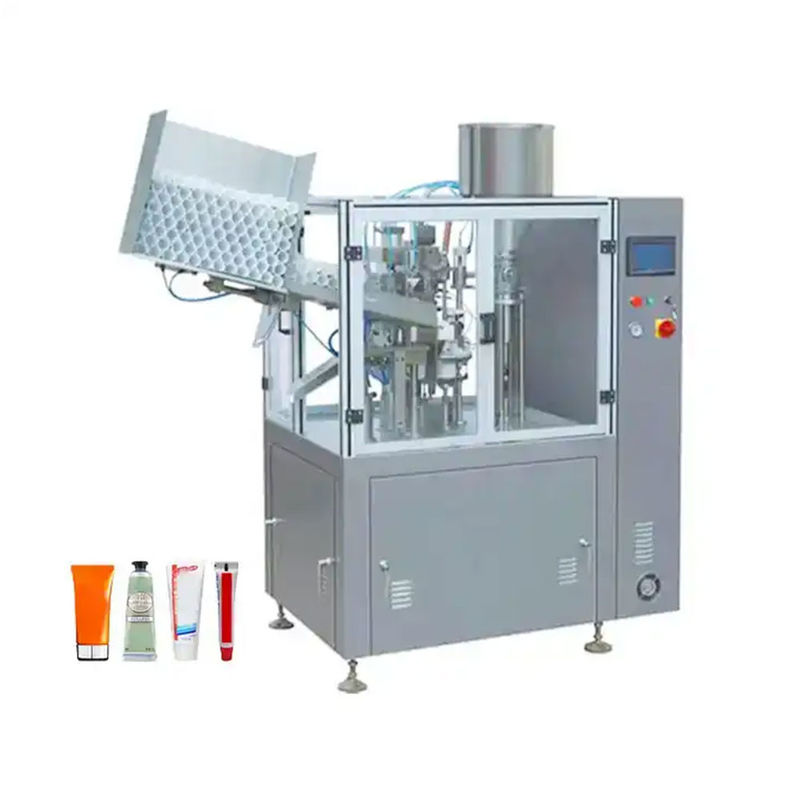

Automatic 30ml 50ml 75ml Toothpaste Tube Filling And Sealing Machine For Sale

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NPF-50A

Detail Information

Power Consumption: 2.5kW Filling Precision: 0.1%
Voltage: 220V/50Hz Key Word: Tube Filling And Sealing Machine
Keyword: Plastic Tube Filler And Sealer Filling Volume: 5-500ml
Driven Type: Electricity Control System: PLC Control System+Touch Screen
Warranty: One Year Packaging Type: Tube
Place Of Origin: Shanghai, China Key Selling Points: High-accuracy
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Highlight:

Automatic Toothpaste Tube Filling Sealing Machine

,

50ml Toothpaste Tube Filling Sealing Machine

,

75ml Toothpaste Tube Filling Sealing Machine

Product Description

The automatic toothpaste tube filling and sealing machine is expertly designed and constructed using the latest advancements in foreign technology. All parts that come into contact with the material are crafted from high-quality stainless steel, ensuring both durability and hygiene. This machine is specifically designed for filling and sealing aluminum and plastic tubes. It performs automatic tube filling, tail folding, and output seamlessly. With a maximum operating speed of 50 pieces per minute and frequency control, it maintains consistent performance. The machine ensures a filling accuracy of 1%, which is crucial for maintaining product consistency and quality. This sophisticated equipment not only boosts efficiency but also guarantees the highest standards of hygiene and precision in the toothpaste production process, making it indispensable for manufacturers striving to meet stringent production and quality standards.



Main Features
1. Touch Screen and PLC Control System: Offers simple, intuitive, and convenient operation with comprehensive functions and stable performance.
2. Safety and Reliability: Transmission components are enclosed beneath the platform.
3. High-Quality Materials: All contact parts are made of 316L stainless steel, adhering to GMP standards for cleanliness and hygiene in drug production.
4. Ease of Maintenance: The filling and sealing sections are housed in a semi-closed, non-static, visually accessible cover above the platform, making them easy to observe, operate, and maintain.
5. High Precision: A CAM-driven rotary wheel ensures fast speed and high precision.
6. Photoelectric Calibration: Equipped with a high-precision probe and stepper motor, the photoelectric calibration workstation ensures the correct positioning of the hose pattern.
7. Leak Prevention: The filling nozzle uses an imported sealing ring to prevent leakage during filling.
8. Tail Sealing System:Employs a hot air gun for internal heating and an external cooling device.
9. Automatic Coding: The encoding workstation automatically prints the code in the required position.
10. Safety Features: Includes a no-tube-no-fill function and overload protection.
11. Optional Add-ons: Equipped with a stirring storage hopper, a heating insulation double storage hopper, and a dust cover.

Parameter

1
Filling volume
50-300ml/unit (Adjustable)
2
Filling accuracy
≦±1﹪
3
Capacity
2400-3000unit/hour, Adjustable
4
Tube diameter
Φ10-50 mm
5
Tube length
50-200mm
5
Hopper volume
40L
6
Power
380V/220V (Optional)
7
Air pressure
0.4-0.6 MPa
8
Equipped motor
1.1KW
9
Machine power
5kw
10
Inner wind motor
0.37kw



Application:

This automatic tube packing machine is extensively used in the pharmaceutical, cosmetic, food, and chemical industries. It is suitable for various aluminum-plastic composite soft tubes or plastic soft tubes, filling a wide range of materials such as ointments, adhesives, AB glue, neoprene, epoxy glue, skin creams, hair creams, oils, toothpaste, lotions, creams, and more.

Product Detail

Automatic 30ml 50ml 75ml Toothpaste Tube Filling And Sealing Machine For Sale 0 Automatic 30ml 50ml 75ml Toothpaste Tube Filling And Sealing Machine For Sale 1
Automatic 30ml 50ml 75ml Toothpaste Tube Filling And Sealing Machine For Sale 2 Automatic 30ml 50ml 75ml Toothpaste Tube Filling And Sealing Machine For Sale 3



How Does an Automatic Tube Filling Machine Work?

1. Tube Loading: Empty tubes are placed into a magazine or hopper, which organizes and feeds them into the machine systematically.

2. Orientation and Alignment:The machine orients and aligns the tubes to ensure they are correctly positioned for the filling process. This step may involve the use of sensors and mechanical guides.

3. Filling: At the filling station, a precise dosing system dispenses the predetermined amount of product into each tube. Electronic sensors typically control the filling process to ensure accuracy.

4. Sealing:After filling, the tubes move to the sealing station. Various sealing methods, including heat sealing, ultrasonic sealing, or other techniques, are used depending on the machine’s design and the type of tube material. The sealing process ensures a secure and airtight seal.

5. Coding/Marking (Optional):Some machines include a coding or marking station where information such as batch numbers, expiration dates, or product codes is imprinted on the tube. This step is often automated for accuracy and efficiency.

6.Trimming (Optional):In some machines, a trimming mechanism removes excess material from the sealed end of the tube, ensuring a clean and professional appearance.



 After-sales Service

1. Installation:
Our team of skilled technicians is ready to dispatch and install the tube filling and sealing machine. The service fee includes installation, travel, meal expenses, and other related costs.

2. Training:
To maximize the performance of the tube filling machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.

3. Warranty:
For repairs on the tube filling and sealing machine, we provide efficient service, a one-year quality assurance period, parts supply, and prompt troubleshooting feedback.

4. Consulting Service:
Take advantage of our complimentary consultation service. Our expert sales team will guide you to the most suitable solution, including CAD drawing designs for the tube filling and sealing machine.

5. Technical Support:
Enjoy our round-the-clock, long-term technical support. Just send us an email or give us a call, and we'll provide quick feedback, ensuring your peace of mind.

6. Spare Parts:
During transportation, we include a set of essential spare parts for the tube filling and sealing machine at no extra cost. Additionally, you can order a wide range of high-quality parts at any time.
