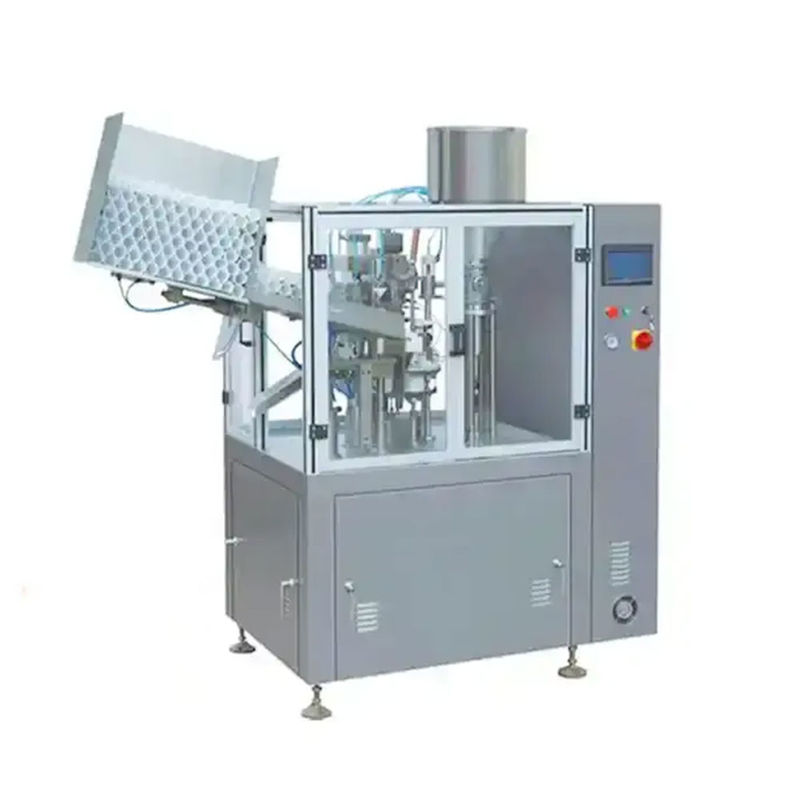

Automatic Plastic Toothpaste Tube Soft Paste Tube Filling and Sealing Machine

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NPF-50A

Detail Information

Power Consumption: 2.5kW Filling Precision: 0.1%
Voltage: 220V/50Hz Key Word: Tube Filling And Sealing Machine
Keyword: Plastic Tube Filler And Sealer Filling Volume: 5-500ml
Driven Type: Electricity Control System: PLC Control System+Touch Screen
Warranty: One Year Packaging Type: Tube
Place Of Origin: Shanghai, China Key Selling Points: High-accuracy
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Highlight:

Plastic Tube Filling and Sealing Machine

,

Automatic Tube Filling and Sealing Machine

,

Plastic Toothpaste Tube Filling Sealing Machine

Product Description

The automatic toothpaste tube filling and sealing machine is meticulously designed and manufactured according to the most recent advancements in foreign technology. It ensures that all parts in contact with the material are made from high-quality stainless steel, ensuring durability and hygiene. This machine is specially engineered for the filling and sealing of both aluminum and plastic tubes. Its operations include automatic tube filling, tail folding, and output, all performed seamlessly. The machine boasts a maximum operating speed of 50 pieces per minute and features frequency control to maintain consistent performance. Additionally, the machine ensures a filling accuracy of 1%, which is critical for maintaining product consistency and quality. This sophisticated equipment not only enhances efficiency but also guarantees the highest standards of hygiene and precision in the toothpaste production process, making it an indispensable asset for manufacturers aiming to meet rigorous production and quality standards.

Main Feature

1. Features a touch screen and PLC control system for simple, intuitive, and convenient operation with comprehensive functions and stable performance.
2. The transmission components are enclosed beneath the platform, ensuring safety and reliability.
3. All parts in contact with materials are made of 316L stainless steel, meeting GMP standards for cleanliness and hygiene in drug production.
4. The filling and sealing sections are housed in a semi-closed, non-static, visually accessible cover above the platform, making them easy to observe, operate, and maintain.
5. A CAM-driven rotary wheel provides fast speed and high precision.
6. The photoelectric calibration workstation, equipped with a high-precision probe and stepper motor, ensures the hose pattern is correctly positioned.
7. The filling nozzle uses an imported sealing ring to prevent leakage during filling.
8. The tail sealing system employs a hot air gun for internal heating and an external cooling device.
9. The encoding workstation automatically prints the code in the process-required position.
10. Safety features include a no-tube-no-fill function and overload protection.
11. (Optional) Equipped with a stirring storage hopper, a heating insulation double storage hopper, and a dust cover.

Parameter

1
Filling volume
50-300ml/unit (Adjustable)
2
Filling accuracy
≦±1﹪
3
Capacity
2400-3000unit/hour, Adjustable
4
Tube diameter
Φ10-50 mm
5
Tube length
50-200mm
5
Hopper volume
40L
6
Power
380V/220V (Optional)
7
Air pressure
0.4-0.6 MPa
8
Equipped motor
1.1KW
9
Machine power
5kw
10
Inner wind motor
0.37kw



Application:
Widely used for filling and sealing plastic, PE, and aluminum laminated tubes in the food, pharmaceutical, cosmetics, and chemical industries.

Product Detail

Automatic Plastic Toothpaste Tube Soft Paste Tube Filling and Sealing Machine 0 Automatic Plastic Toothpaste Tube Soft Paste Tube Filling and Sealing Machine 1
Automatic Plastic Toothpaste Tube Soft Paste Tube Filling and Sealing Machine 2 Automatic Plastic Toothpaste Tube Soft Paste Tube Filling and Sealing Machine 3



Mechanical Principle:

The toothpaste tube filling machine operates based on advanced mechanical principles designed for precision, speed, and accuracy. Using tube feeding systems, dosing pumps, and filling nozzles, it precisely measures and dispenses the exact quantity of toothpaste into each tube. The sealing mechanisms, often featuring high-speed technology, ensure that the tubes are securely sealed, maintaining the freshness and effectiveness of the toothpaste. Integrated sensors and programmable logic controllers (PLCs) manage the entire process, ensuring uniformity, minimizing errors, and enhancing overall efficiency.



In conclusion, the toothpaste tube filling machine epitomizes precision and efficiency in the oral care industry. Its exceptional features, diverse applications, and advanced mechanical principles make it an invaluable asset for toothpaste manufacturers globally. By embracing cutting-edge technology, this machine not only guarantees the accuracy of toothpaste filling but also upholds the highest standards of presentation, consistency, and quality. As a crucial component in the production of oral care products, it continues to revolutionize the way toothpaste is filled, ensuring each tube embodies the essence of precision and the promise of a radiant smile.



 After-sales Service

1. Installation:
Our team of skilled technicians is ready to dispatch and install the tube filling and sealing machine. The service fee includes installation, travel, meal expenses, and other related costs.

2. Training:
To maximize the performance of the tube filling machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.

3. Warranty:
For repairs on the tube filling and sealing machine, we provide efficient service, a one-year quality assurance period, parts supply, and prompt troubleshooting feedback.

4. Consulting Service:
Take advantage of our complimentary consultation service. Our expert sales team will guide you to the most suitable solution, including CAD drawing designs for the tube filling and sealing machine.

5. Technical Support:
Enjoy our round-the-clock, long-term technical support. Just send us an email or give us a call, and we'll provide quick feedback, ensuring your peace of mind.

6. Spare Parts:
During transportation, we include a set of essential spare parts for the tube filling and sealing machine at no extra cost. Additionally, you can order a wide range of high-quality parts at any time.
