Automatic Plastic Soft Tube Ointment Tube Filling And Sealing Machine

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-SF30A

Detail Information

Air Consumption: 0.6m³/min Filling Capacity: Max 35PCS/M
Filling Volume: 10-300ml Hopper Cubage: 30L
Operating Mode: Semi Automatic Power Consumption: 1.5kW
Sealing Type: Hot Air Sealing Tube Type: Laminated Or PE Tubes

ointment filling and sealing machine


ointment sealing machine


ointment tube filling machine

Product Description

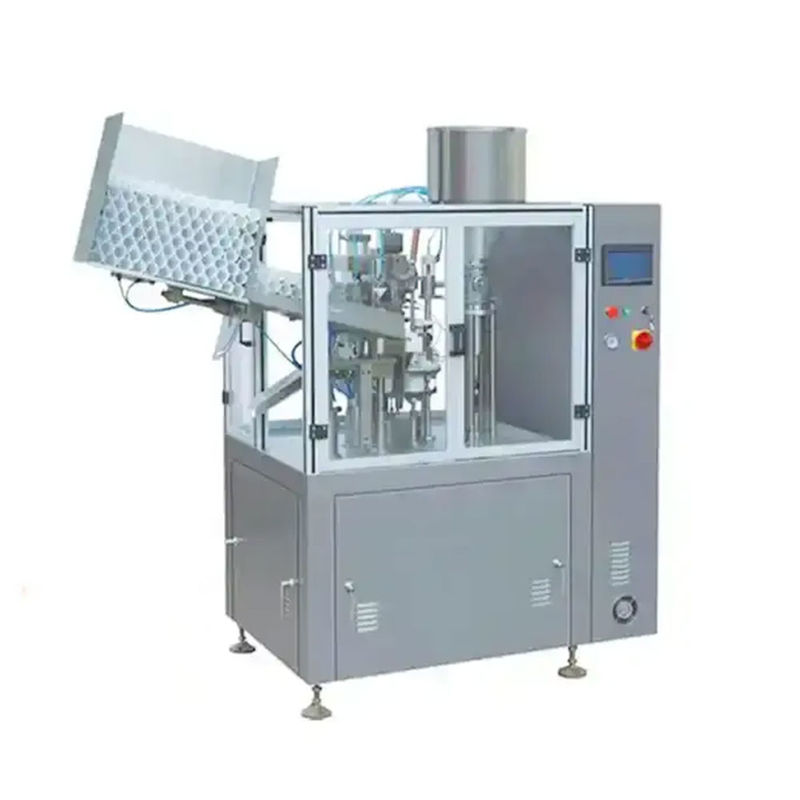

Automatic Plastic Soft Tube Ointment Filling And Sealing Machine

The automatic ointment filling and sealing machine is expertly designed for the efficient packaging of ointments in polyethylene and laminated tubes. Utilizing hot air to seal the tubes, this versatile machine also embosses dates and/or batch numbers and trims any surplus plastic from the tube ends, a common by-product of the tube sealing process.


Crafted from robust stainless steel and incorporating a pneumatic system, the machine facilitates straightforward adjustments in filling volume and speed. Beyond the manual loading of empty tubes, the machine automates every step of the process, including filling, sealing, cutting, and code printing. This ointment tube filling machine is particularly adept at filling a wide variety of products, from medicinal ointments and creams to toothpaste, ensuring they are securely packed into plastic or laminated tubes.


This cost-effective tube filling and sealing solution finds its applications predominantly in the pharmaceutical sector, where precision and hygiene are paramount, but it is also suitable for the cosmetics, chemicals, and food industries. Designed with efficiency in mind, it caters to small and medium-sized batches, making it perfect for both regular manufacturing cycles and laboratory settings.


NPACK is a renowned manufacturer of tube filling and sealing machines, specializing in solutions for filling and packaging ointments. Our machines are designed to handle thermoplastic tubes, such as polyethylene (PE) and laminated materials, as well as aluminum tubes. We encourage potential customers to contact us for a competitive price quote, offering new, top-quality machinery that promises to meet the diverse needs of our clients with exceptional value.

Name Automatic Tube Filling Sealing Machine
Tubes material Laminated material, or PE
Products Liquid, cream, or paste
Volume 10-250ml
Filling Piston pump
Precision ±0.5%
Tube size Caliber:15-50mm, length 50-220mm
Pneumatic 0.6-0.8Mpa, 0.2 CBM/min
Capacity 20-35 pcs/min (Up to the size of the tubes and the filling volumes in each tube)
Voltage AC220V, 1 phase, 50/60Hz.
Power 3.3Kw.
Material Stainless steel 304
G.W. 450Kg.
Dimension L1250*W1050*H1600mm


Key Features:

1.Features dual heating mechanisms for both the inner wall and exterior, ensuring tubes are sealed securely and rapidly.

2. Employs a SUNX or SICK sensor for accurate mark detection, guaranteeing tubes are consistently sealed at the exact desired location.

3.Includes a mixing bucket suitable for a variety of product types, from liquids and creams to pastes.

4.Utilizes an advanced SIEMENS PLC alongside a user-friendly touch screen interface for simplified operation.

5. Equipped with a precision graduator, ensuring the rotary plate holding 8 (or 10) tubes rotates accurately to the same angle or distance each cycle.

6.Automated embossing feature for imprinting dates or batch codes on each tube tail.

7. Comes with a water circulation chiller to cool tube tails post-sealing, creating firm and visually appealing seals.

8.Incorporates a shearing mechanism for neatly trimming the sealed edges, resulting in uniform and polished tube finishes.

9.Highly automated, conducting all operations automatically except for the manual loading of empty tubes.

10.Designed to automatically place finished tubes into cartons or boxes, reducing manual labor.


Main Workflow:

1. Manual Tube Loading:The operator loads tubes into the machine manually.

2. Automatic Benchmarking:The machine automatically identifies a reference point for precise tube positioning.

3. Automatic Filling:Performs automated filling with a fail-safe to avoid filling if no tube is detected. Offers an option for bottom filling based on material viscosity.

4. Automatic Heating: Uses both internal and external heaters for effective tube sealing.

5. Sealing and Date Coding: Automatically seals tubes and applies date codes.

6. Excess Trimming Post-Sealing:Automatically cuts away any excess tube material post-sealing for a neat finish.

7. Output of Finished Product: Automatically directs finished tubes to the output, facilitating seamless production flow.
