Customized Soft / Test Aluminum Tube Filling And Sealing Machine With Multi-Head Valve

Product Details:

Place of Origin:	China
Brand Name:	N PACK
Certification:	CE ISO SGS

Detail Information

Place of Origin:

China

Brand Name:

N PACK

Certification:

CE ISO SGS

Feed Cylinder Structure:

Multi-Room Feeding

Dosing Device:

Plunger

Filling Principle:

Pressure

Packaging Container Lifting Structure:

Pneumatic Lifting

Structure:

Rotary

Packaging:

Soft Tube

Packaging Material:

Plastic

Appliaction:

Soft/Test/Aluminum Tube

Control:

PLC Control

Suitable Product:

Paste/Sauce/Cream

Transport Package:

Wood

Specification:

2m*1.4m*2m

Trademark:

Npack

Origin:

China

HS Code:

8422309090

Supply Ability:

2000-2500unit/Hour, Adjustable

After-sales Service:

Online Instruction

Warranty:

1 Year

Type:

Tube Filling Machine

Automatic Grade:

Fully Automatic

Material Type:

Paste

Filling Valve Head:

Multi-Head

Highlight:

High Light

Highlight:

Customized Tube Filling Sealing Machine

Soft Tube Filling Sealing Machine

Trading Information

Minimum Order Quantity:

Price:

9000USD/set to 50000USD/set

Packaging Details:

Wooden box

Delivery Time:

40 working days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

100 set

Product Description

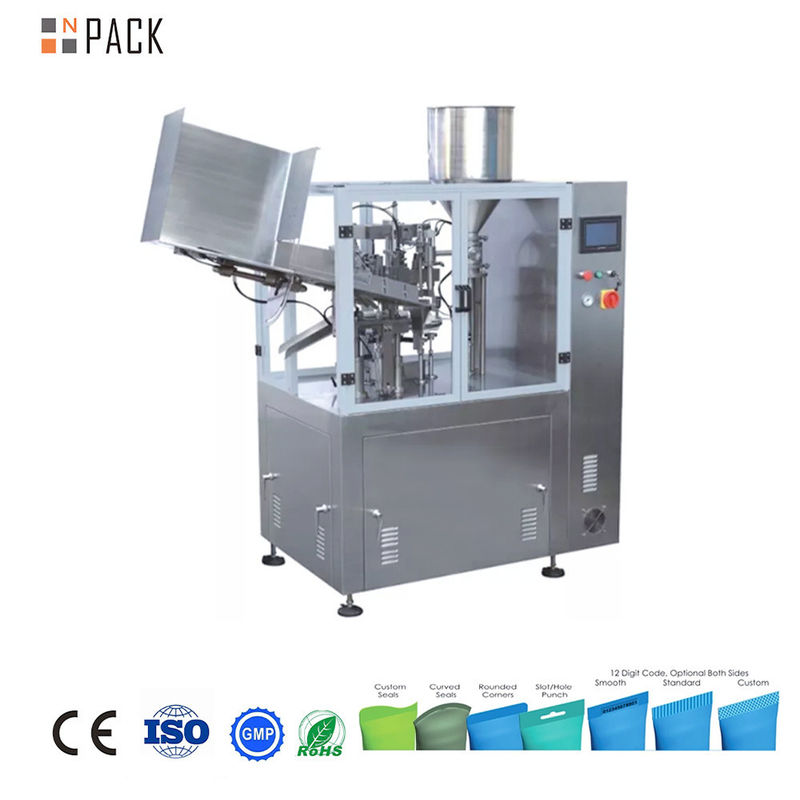

Automatic Paste/Cream Tube Filling and Sealing Machine

Customized Soft / Test Aluminum Tube Filling And Sealing Machine With Multi-Head Valve 0

The tube filling and sealing machine utilizes both closed and semi-closed systems for filling pastes and liquids, ensuring leak-proof seals and consistent filling weight and capacity. The processes of filling, sealing, and printing are completed in one operation. This machine is widely used in the cosmetics industry, light industry (daily-use chemical industry), pharmaceutical industry, food industry, and other sectors. It is ideal for products packaged in tubes. The equipment fills materials such as ointments, creams, gels, or high-viscosity fluids into tubes, then folds and seals the tube's tail, and prints the code on the tube to produce the finished product.

Product Parameters

Filling volume	30-125g /unit (Adjustable)
Filling accuracy	<=±1%
Capacity	2000-2500unit/hour, Adjustable
Tube diameter	Φ10-50 mm
Tube length	50-200mm
Hopper volume	30L
Power	380V/220V (Optional)
Air pressure	0.4-0.6 MPa
Equipped motor	1.1KW
Machine power	5kw
Inner wind motor	0.37kw
Convulsions motor	0.37kw

Product Details

Product Application

Customized Soft / Test Aluminum Tube Filling And Sealing Machine With Multi-Head Valve 2

Company Profile

Customized Soft / Test Aluminum Tube Filling And Sealing Machine With Multi-Head Valve 3
