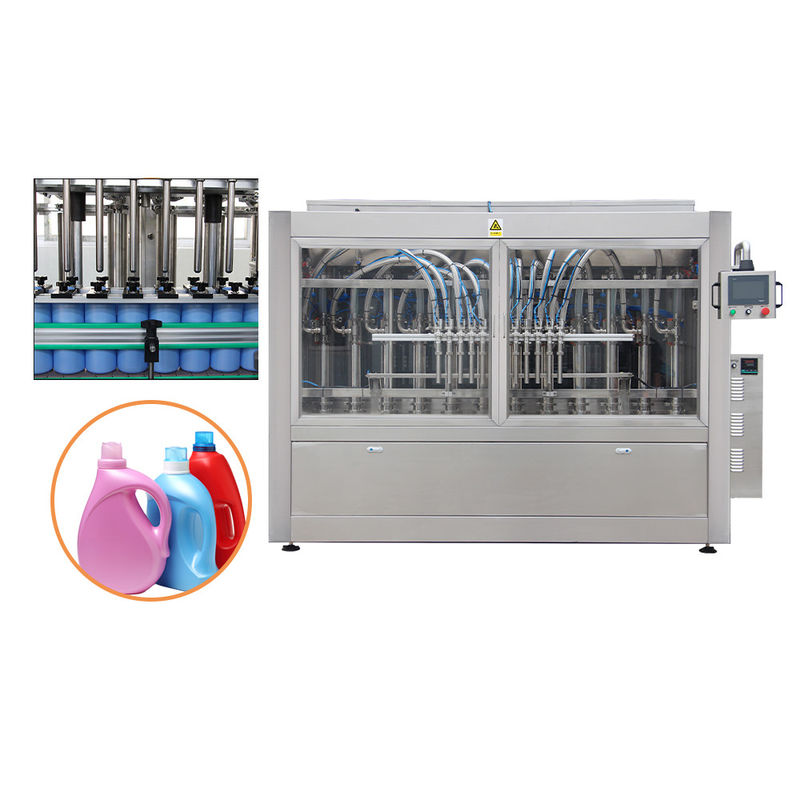

Automatic Laundry Detergent Solution Filling Machine
Our laundry detergent filling machine is specifically designed for liquid detergents (such as laundry liquid, fabric softener, concentrated cleaners, etc.). Key components are constructed with 316 stainless steel and corrosion-resistant engineering plastics, complying with GMP hygiene standards to eliminate liquid contamination risks. Capable of handling liquids across viscosity ranges (from low-viscosity detergents to high-density concentrates), it features drip-resistant nozzles to ensure clean filling. An intelligent sensing system automatically detects bottle positions, preventing misaligned filling with a malfunction rate below 0.5%. The multi-station synchronized design (4-16 nozzles optional) supports production capacities of 400–5,800 bottles per hour, adaptable to both small-batch customization and large-scale manufacturing. Integrated with automated bottle feeding, positioning, filling, and optional capping functions, it enables "one-touch start" operation to minimize manual intervention. This system delivers a one-stop filling solution for your production line.
Parameter
|
|
|
|
|
|
|
|
NP-VF-16
|
|
|
|
|
|
|
|
|
16
|
|
|
100-500,100-1000,1000-5000
|
Capacity(bpm)base on 500ml
|
12-14
|
24-28
|
36-42
|
48-56
|
60-70
|
70-80
|
80-100
|
|
|
|
|
|
|
|
|
220VAC SINGLE PHASE 1500W
|
220VAC SINGLE PHASE 3000W
|
Main Feature
-
Compact & Space-Efficient Design: The automated laundry detergent filling system is engineered for space optimization without compromising operational efficiency, ideal for streamlined production environments.
-
Premium Electrical Components: Equipped with internationally renowned electrical parts to guarantee durability, reliability, and consistent long-term performance.
-
Flexible Customization Options:
-
Filling Heads: Configurable with 6, 8, or 10 filling heads to match production scale.
-
Piston Cylinder Capacity: Multiple volume ranges available: 25–250ml, 50–500ml, 100–1000ml, and 250–2500ml.
-
Adjustable Speed: Full-speed variability ensures adaptability to diverse production rhythms.
-
Tool-Free Maintenance & Precision Control:
-
Simplified disassembly, cleaning, and reassembly with no specialized tools required.
-
Dual-adjustment system: Broad-range initial calibration followed by micro-adjustments for precise control over fill volume and accuracy.
-
Versatile Viscosity Compatibility:
-
Specialized filling valves accommodate materials of varying thicknesses.
-
Precision Filling System: Integrated descending nozzle mechanism ensures accurate material placement into bottles, paired with a horizontal bottle-stabilizing fixture to minimize spillage and enhance consistency.
Product Detail
Main structure of the filling machine Detergent:
1. Available with a top hopper capacity ranging from 20L to 200L, and an optional double jacket hopper with heating and mixing systems.
2. The machine's main body is made from 304 stainless steel.
3. Specially designed filling nozzles to prevent dripping of sauces.
4. Vertically adjustable filling nozzles, with options for adjustment via air cylinders or a servo motor.
5. PLC control system with a user-friendly HMI interface.
6. Custom-made hose and valve for viscous liquid, with a CIP system connection for hygiene.
After-sales Support:
1. Expert Installation
Our experienced technicians handle the delivery and installation of your filling machine seamlessly. The service fee includes installation, travel costs, meal allowances, and related expenses.
2. Comprehensive Training
To maximize your filling machine’s efficiency, we provide tailored on-site or factory training for dealers, operators, engineers, and technicians.
3. Reliable Warranty
Enjoy worry-free repairs with our one-year quality guarantee, inclusive of parts replacement and rapid troubleshooting support for your automatic filling machine.
4. Free Consultation
Leverage our complimentary consultation service. Our expert sales team will recommend optimal solutions for your needs, complete with custom CAD drawings for your bottling machine setup.
5. 24/7 Technical Support
Access lifelong, round-the-clock technical assistance. Contact us via email or phone for immediate responses and resolutions.
6. Spare Parts Assurance
Essential spare parts for your filling machine are included free of charge during transportation. Additionally, we offer a full range of premium-quality replacement parts available for order anytime.
FAQ
Q1: What is the working principle of this filling machine?
A: The equipment automatically completes the bottle positioning, quantitative filling, capping (optional) and other processes through high-precision flow meters or servo control systems, supporting the filling of various viscosity liquids (such as laundry detergent and softener), and the entire process is automated.
Q2: What types of products are applicable?
A: Specially designed for liquid daily chemical products, including laundry detergent, fabric softener, concentrated cleaning agent, disinfectant, etc., with viscosity ranging from aqueous to medium to high viscosity liquids.
Q3: What is the production capacity? Can it meet the requirements of large-scale production?
A: The standard model has a production capacity of 500-3000 bottles per hour (depending on the number of filling heads and bottle capacity), supports multi station synchronous operation, and can flexibly adapt to the needs of small or large production lines.
Q4: What is the filling accuracy? What is the range of error?
A: By using high-precision sensors or servo control, the error can be controlled within ± 1%, ensuring consistent capacity of each bottle and reducing raw material waste.
Q5: Is it compatible with bottles of different shapes and sizes?
A: Support modular quick switching, adaptable to circular, square, irregular bottles and various calibers (customized fixtures required), with a capacity range of 50ml-5L.
