Wholesale Price Automatic Acid Liquid Chlorine Fluid Water Toilet Cleaner Filling Machine

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-VF

Detail Information

Filling Volume: 100-5000ML Processing: Piston Filling
Function: Bottle Filling Packing: Wooden Case Packing
Packaging Material: Wood Suitable Bottle Type: Round, Square, Flat,Plastic,Pet,Glass Bottle
Filling Error: <0.1% Control: Servo Motor Control Filling Volume
The Material: Stainless Steel Automatic Grade: Automatic
Control System: PLC Control System+Touch Screen Warranty: One Year
Highlight:

Water Toilet Cleaner Filling Machine

,

Automatic Acid Liquid Chlorine Filling Machine

Product Description

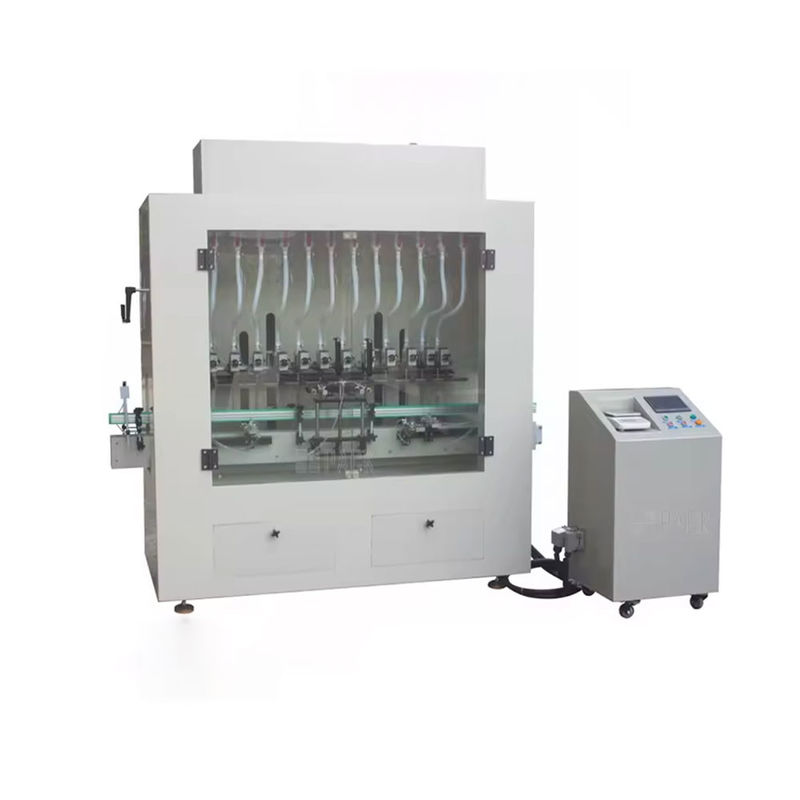

This gravity-type filling machine is specially designed for filling corrosive liquids, including bleach, sulfuric acid, 84 disinfectant, gel water, toilet cleaner, and more. It features an in-line structure that allows for customization of the filling head quantity based on different production capacities, such as 6, 8, 10, 12, 16, or 20 heads. This flexibility ensures that the machine can be tailored to meet specific production needs. The filling volume is controlled by the filling time, with weight feedback from each filling nozzle provided to the PLC to ensure precise filling accuracy. This advanced control system helps maintain consistency and quality in the filling process. All parts that come into contact with the product are made from strong, corrosion-resistant materials, ensuring durability and longevity even when handling highly corrosive substances. This makes the machine highly reliable and suitable for use in various industries requiring the filling of corrosive liquids. Its robust construction and customizable features make it an excellent choice for businesses looking to improve their production efficiency and maintain high standards of product quality.



Main Features:
1. The liquid contact parts are made from anticorrosive non-metallic materials and feature a diving function.
2. This vertical filler is an advanced filling machine that combines PLC microcomputer programmable control, photoelectric transduction, and pneumatic action.
3. Designed to accommodate various vessel sizes, the machine allows quick changes to the filling sizes within a few minutes, ensuring a short filling cycle and high production capacity.
4. Users can select the desired filling volume and configure the number of filling heads according to their production needs.
5. The pneumatic valve filling precision can be set to 0.01 seconds, achieving measurement accuracy within ±0.1%, which minimizes material waste and boosts economic efficiency.
6. Each filling head’s measurement can be individually fine-tuned to ensure uniform filling accuracy.
7. The machine includes a bottle-feeding counting program, preventing filling when there are no bottles or when the count does not reach the preset number. Filling only begins when the counter verifies that the number of bottles matches the set filling number.
8. The filling volume can be roughly adjusted to the desired amount, followed by fine adjustments to achieve optimal filling precision.



Parameter



Filling range
750ml
Filling accuracy
0.5%
Filling speed
1000-1400BPH (Depends on the viscosity of the material)
Machine Dimension
l 2750×1300×2450 mm
Air pressure
0.6-0.8 MPA
Power
l2KW, 220V , 50 HZ
Machine Weight
about 850KG


Application

This machine is ideal for filling bleach, acidic liquids, 84 disinfectant, gel water, and toilet cleaner. It is especially designed for filling highly corrosive liquids and cosmetics that cannot come into contact with metal.

Wholesale Price Automatic Acid Liquid Chlorine Fluid Water Toilet Cleaner Filling Machine 0

Product Detail

Wholesale Price Automatic Acid Liquid Chlorine Fluid Water Toilet Cleaner Filling Machine 1 Wholesale Price Automatic Acid Liquid Chlorine Fluid Water Toilet Cleaner Filling Machine 2
Wholesale Price Automatic Acid Liquid Chlorine Fluid Water Toilet Cleaner Filling Machine 3 Wholesale Price Automatic Acid Liquid Chlorine Fluid Water Toilet Cleaner Filling Machine 4



After-sales Support:

1. Installation:
Our experienced technicians are ready to deliver and install your filling machine. The service fee includes installation, travel, meal expenses, and additional related costs.

2. Training:
To maximize the efficiency of your filling machine, we provide on-site or factory training sessions for dealers, machine operators, engineers, and technicians.

3. Warranty:
Our repair service for the automatic filling machine is reliable, offering a one-year quality assurance period, parts supply, and prompt troubleshooting feedback.

4. Consultation Service:
Utilize our free consultation service. Our knowledgeable sales team will help you find the best solution and provide CAD drawing designs for your bottling machine.

5. Technical Support:
Enjoy 24/7 long-term technical support. Whether you contact us via email or phone, we will promptly address your inquiries, ensuring your peace of mind.

6. Spare Parts:
Essential spare parts for the filling machine are included in the transportation at no additional cost. Additionally, you can order a wide range of high-quality parts at any time.
