Automatic Toilet Cleaner Bottle Filling Machine

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-VF

Detail Information


toilet cleaner bottle filling machine


toilet cleaner filling machine


toilet cleaner filling machine manufacturers

Product Description

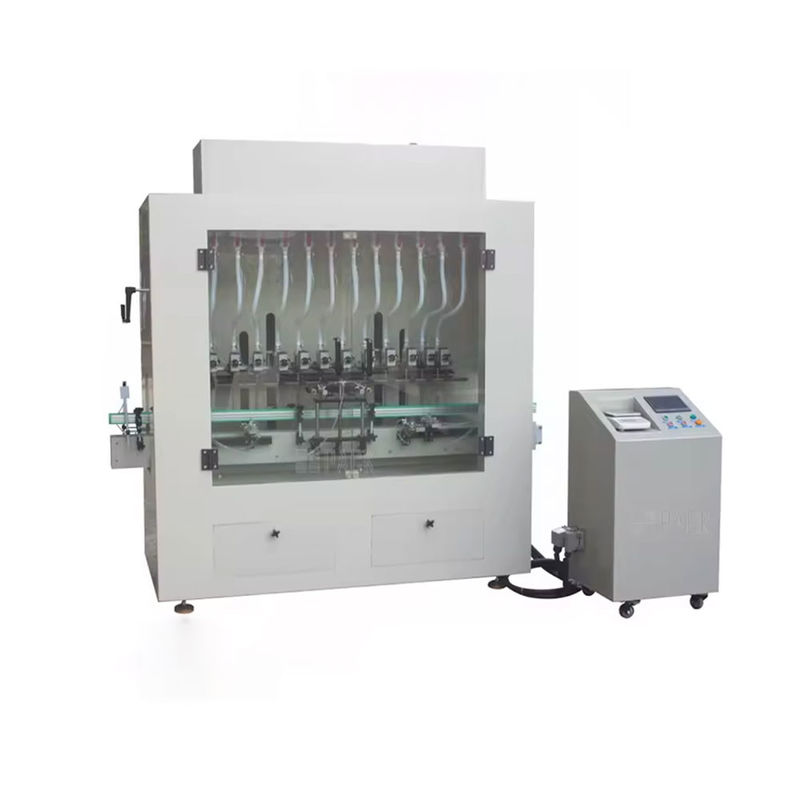

Automatic Toilet Cleaner Filling Machine For Bottle

Toilet cleaner formulations are crafted to effectively clean and disinfect toilets, tackling grime, stains, bacteria, and odors. These products typically possess a low viscosity, akin to water, allowing for straightforward pouring or application on the toilet's surface. Depending on their formulation, toilet cleaners can be categorized as either acidic or alkaline. Acidic cleaners, with a pH value below 7, excel at breaking down limescale and stains, whereas alkaline cleaners, with a pH above 7, are adept at eliminating grease, fats, and organic stains. Certain components in toilet cleaners may exhibit corrosive properties to enhance their efficacy against tough dirt and limescale deposits.


Selecting a filling machine that aligns with the toilet cleaner's viscosity, pH, and corrosive characteristics is crucial for optimizing production efficiency and precision. This alignment ensures the toilet cleaner is filled into bottles smoothly and efficiently, reducing waste and preserving the integrity of the product.


The Anti-Corrosion PP inline liquid filling machine represents the latest innovation from our company, marking the third iteration of our filling machine designs. Engineered entirely to anti-corrosion specifications, this machine embodies cutting-edge filling technology, merging microcomputer (PLC) control, photoelectric sensing, and pneumatic action.

Designed specifically for highly corrosive liquids like bleach, 84 disinfectant, toilet cleaner, and similar substances, this machine ensures safe handling and precision filling. It offers a customizable Dive filling feature, which can be adjusted according to customer needs, including the option for non-Dive filling. Key attributes include accurate fill volumes, a no-drip system, photoelectric bottle detection, and a policy of no filling in the absence of a bottle, showcasing its advanced operational capabilities.


Unique Features:

1. This machine employs a gravity filling method, incorporating a diving filling system to manage foam and is fitted with nozzle stoppers resembling wine bottle stoppers to guarantee drip-free operation.

2. It is ideal for filling corrosive liquids into straight-neck bottles and can be easily adapted for oblique neck bottles by simply switching out a plate, making it highly versatile.

3. Designed to handle both viscous and non-viscous corrosive liquids, this machine can be equipped with a piston device to accommodate liquids with viscosity.

4. Available in various models, it comes with different numbers of filling heads (6, 8, 10, 12, or more), offering flexibility to meet diverse production needs.

5. Constructed from PP material, its latest design enhances its strength against corrosion and ensures a completely leak-proof operation. PP is superior for anti-corrosion compared to PVC and stainless steel, providing unmatched durability and protection.



Filling range 1000ML (filling volume can be set through touch screen)
Filling accuracy ±1%
Filling speed 1 .5circles per minute.
Working air pressure 6-7kg/c㎡
Operation voltage 220V (available to be customized)


Product Detail

Automatic Toilet Cleaner Bottle Filling Machine 0 Automatic Toilet Cleaner Bottle Filling Machine 1
Automatic Toilet Cleaner Bottle Filling Machine 2 Automatic Toilet Cleaner Bottle Filling Machine 3


After-sales Support:

1. Installation:
Our team of seasoned technicians is equipped to deliver and install your  filling machine. The service fee covers installation, travel, meal expenses, and more.

2. Training:
To optimize the performance of your filling machine, we offer on-site or factory training sessions for dealers, machine operators, engineers, and technicians.

3. Warranty:
Rest assured, our repair service for the automatic filling machine is efficient, backed by a one-year quality assurance period, parts supply, and prompt troubleshooting feedback.

4. Consultation Service:
Take advantage of our complimentary consultation service. Our knowledgeable sales team will guide you to the most suitable solution, providing CAD drawing designs for your bottling machine.

5. Technical Support:
Benefit from our round-the-clock, long-term technical support. Whether you reach out via email or phone, we'll promptly address your inquiries, ensuring your peace of mind.

6. Spare Parts:
Included in transportation are essential spare parts for the filling machine at no additional cost. Moreover, you can order a comprehensive range of high-quality parts at any time.
