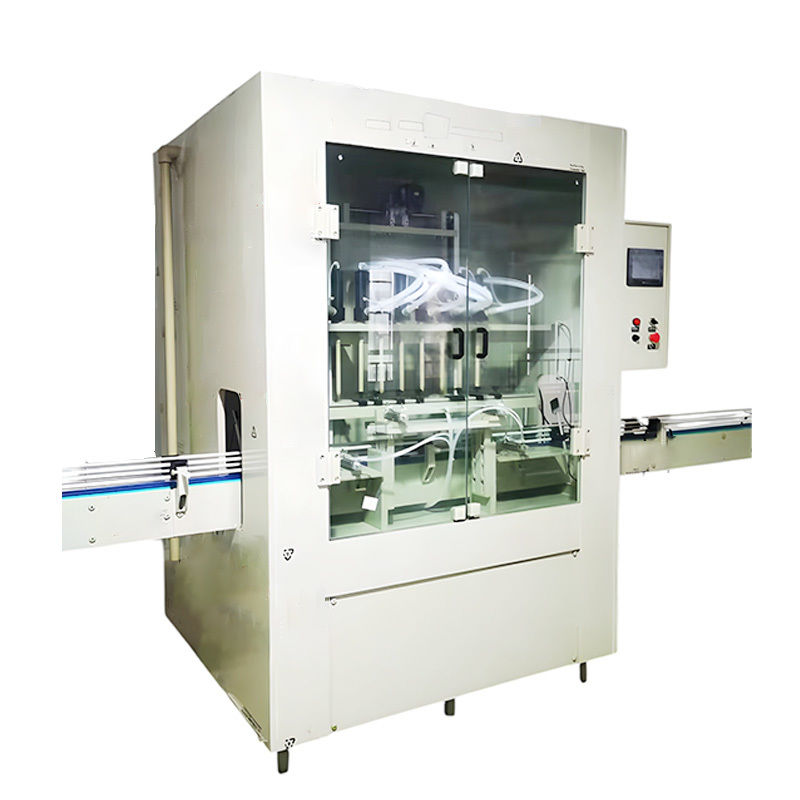

Automatic Linear Gravity Filling Machine is manufactured for the automatic filling of free-flowing and low viscous liquids in the Plastic Bottles, HDPE Bottles, PET Bottles and other rigid containers.
The machine adopts the gravity feeding filling system and linear inline structure and automatically completes the bottle conveying, positioning, filling and discharging. It is ideal for filling products such as bleach, disinfectant, household cleaners, liquid chemicals, water-based detergents and other low-viscosity liquids.
It can be connected with an automatic bottle unscrambler, capping machine, labelling machine, coding system and downstream packing equipment to complete an automatic bottling line.
Main Features
1.Automatic Linear Filling
Designed for continuous bottle filling, with automatic conveying, positioning, filling and discharge.
2.Gravity Filling System
For free flowing low viscous liquids like bleach, disinfectant and cleaning solutions.
3.Multiple Filling Nozzles
It can fill multiple bottles at the same time, thus improving the production efficiency.
4.Anti-Drip Design
Special filling nozzles minimise dripping, splashing and product waste during filling.
5.No bottle, no fill
Photoelectric sensors automatically detect bottles and prevent unnecessary filling.
6.Changeover between bottles is easy
Guide rails, nozzle pitch and fill height can all be adjusted for different size bottles.
7.PLC Touchscreen Control
Through the HMI the filling parameters and the operation of the machine can be easily set and monitored.
8.Flexible Line Integration
Can be combined with capping, labelling, coding and conveying equipment to form a complete bottling line.
Main parameter
|
|
|
|
|
|
|
|
NP-VF-16
|
|
|
|
|
|
|
|
|
16
|
|
|
100-500,100-1000,1000-5000
|
Capacity(bpm)base on 500ml
|
12-14
|
24-28
|
36-42
|
48-56
|
60-70
|
70-80
|
80-100
|
|
|
|
|
|
|
|
|
220VAC SINGLE PHASE 1500W
|
220VAC SINGLE PHASE 3000W
|
Product Details
How Does a Gravity Filling Machine Work
The conveyor transfers empty bottles to the filling station. Sensors detect and position the containers under the filling nozzles. When the containers are in the correct position, the filling cycle starts automatically.
The liquid is filled in each container with the gravity filling system at the setting filling parameters. The containers are automatically unloaded after filling and moved on to the next stage of production, such as placing the lid on, capping, labelling or packing
Standard Bottle Filling Procedure
The normal automatic bottle filling process involves:
Bottle Infeed → Bottle Detection → Bottle Positioning → Gravity Fill → Bottle Release → Bottle Exit
Bottles can be directed straight from the filler to downstream packaging equipment.
A complete bottling line can be set up as:
Unscrew Bottle → Gravity Fill → Cap Feed → Capper → Labelling → Coding → Inspection → Finished Bottle Conveying
Line layout can be customised according to bottle size, production speed, factory space and packaging process.# Integration of Fully Automatic Bottling Line.
The gravity filler can be used as a standalone filler, or as part of a complete automatic bottling line.
Optional equipment may include:
Automatic unscrambler for bottles Bottle conveyor
Auto cap feeder
Cap placing machine
Screw for capping machine
Capping machine Press
Induction sealing machine
Labelling machine
Inkjet printer
Laser marking machine
Weighing machine
Inspection system for bottles
Carton packing machine
Case sealer
By connecting the filling machine with the upstream and downstream packaging equipment, the manufacturer can realise continuous automatic production from the feeding of the empty bottle to the packing of the finished product.
