Npack Automatic Servo Motor Piston Pump Ink Filling Machine Ink Production Line for Glass Jar

Automatic Ink Filling Machine Ink Production Line

The Fully Automatic Ink Filling, Capping, and Labeling Production Line is an integrated automated packaging system specially developed and designed by our company for liquid products such as ink, printing ink, and writing ink.

This production line integrates multiple processes, including automatic bottle unscrambling, filling, cap sorting, cap feeding, capping, sealing, labeling, and coding. It can automatically complete the entire production process from empty bottle loading to finished product output.

The equipment is widely used for the filling and packaging of various ink products, including printer ink, inkjet ink, ceramic ink, printing ink, and writing ink.

Main Feature

1.High Filling Accuracy

Equipped with a piston filling system, the filling error is ≤±0.5%, ensuring consistent volume in every bottle.

2.High Automation Level

The PLC + touchscreen control system enables centralized operation with one-touch control. It features functions such as no bottle, no filling, automatic counting, and fault alarms. The entire production line requires only 1–2 operators for operation.

3.Wide Range of Bottle Compatibility

No tools are required for bottle changeover. The filling nozzle spacing and guide rail height can be quickly adjusted to accommodate various sizes of round or square bottles/containers.

4.High-Quality Materials

All parts in contact with the product are made of 304/316 stainless steel, offering excellent corrosion resistance and meeting hygiene standards for the chemical industry.

5.Anti-Drip Design

The filling system effectively prevents ink dripping and splashing during the filling process, helping keep the equipment and working environment clean.

Main parameter

Product Details

Complete ink filling capping labeling machine line

The complete ink filling line mainly consists of the following equipment:

Automatic Bottle Unscrambler/Bottle Feeding Machine

Automatically organizes and conveys empty bottles to the production line.

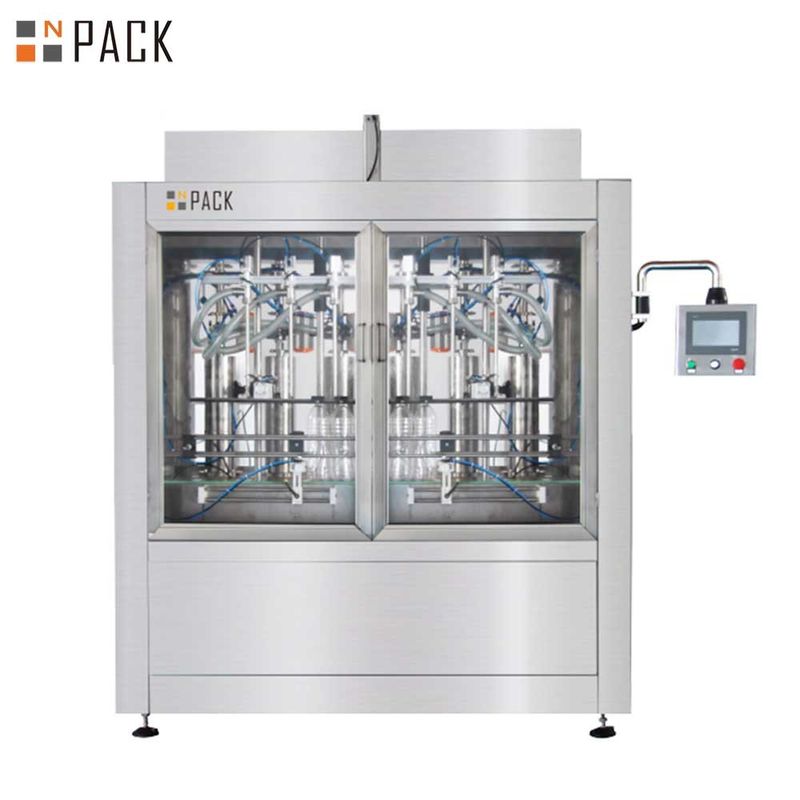

Fully Automatic Piston Filling Machine

Uses a piston filling system with multiple filling heads to achieve precise and accurate filling.

Four-Wheel Capping Machine

Automatically sorts, feeds, and tightens bottle caps.

Double-Sided Labeling Machine

Automatically applies single-sided or double-sided self-adhesive labels onto the bottles.

Conveyor System

Uses stainless steel chain conveyors running throughout the entire production line to ensure smooth connection between each process.

Each machine is equipped with an independent control system, allowing it to operate either as part of the complete production line or independently.
