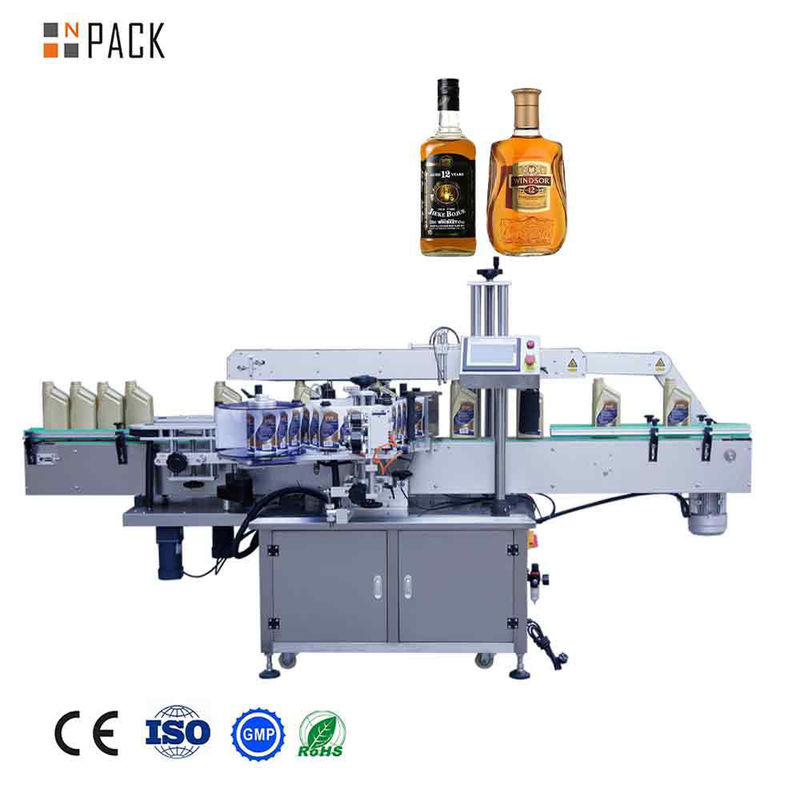

Automatic Sticker Square Bottle Labeling Machin
This square bottle labeling machine is an advanced automatic system designed for precise labeling on one or two sides of square or flat bottles. It features adjustable label spacing to accommodate different bottle sizes and labeling requirements, ensuring high flexibility in production.
The machine can be integrated with a circumferential positioning system for accurate label placement, as well as a date coding device for printing production dates, batch numbers, and other information, delivering efficient and consistent labeling performance.
Main Feature
1.Adjustable pressure system
The pressure between the drive shaft and pressure roller can be finely adjusted, allowing flexible control of label direction and ensuring smooth, unrestricted label movement.
2.Double pressure-roller design
A dual roller structure at the label outlet tightens labels while preventing damage from die-cut backing paper, ensuring stable and smooth tension control.
3.High-precision servo system
Equipped with a branded servo motor with closed-loop control, enabling high-speed operation and accurate labeling positioning.
4.Accurate positioning mechanism
A specially designed sizing system ensures precise alignment of products for consistent and accurate label application.
5.Synchronized transmission system
The pressing belt and main drive gear are fully synchronized, eliminating the need for manual adjustment and ensuring stable conveying performance.
6.Multi-functional labeling capability
Supports flat, round, and square bottles, including single-side, double-side, circumferential, and multi-side labeling applications.
7.Advanced control system & structure
Features PLC control and HMI interface for easy operation, and is built with 304 stainless steel for durability, hygiene, and long service life.
Product Parameters
|
|
|
Labeling Speed
|
60-350pcs/min (Depending on label length and bottle thickness)
|
|
Height of Object
|
30-350mm
|
|
Thickness of Object
|
20-120mm
|
|
Height of Label
|
15-140mm
|
|
Length of Label
|
25-300mm
|
|
Label Roller Inside Diameter
|
76mm
|
|
Label Roller Outside Diameter
|
420mm
|
|
Accuracy of Labeling
|
±1mm
|
|
Power Supply
|
220V 50/60HZ 3.5KW Single-phase
|
|
Gas Consumption of Printer
|
5Kg/cm^2
|
|
Size of Labeling Machine
|
2800(L)×1650(W)×1500(H)mm
|
|
Weight of Labeling Machine
|
450Kg
|
