Home > products >
Automatic Packing Machine
>
High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag
High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag
  • High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag
  • High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag
  • High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag
  • High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag
  • High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag
  • High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag

High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag

Product Details:
Place of Origin: China
Brand Name: N PACK
Certification: CE ISO SGS
Detail Information
Place of Origin:
China
Brand Name:
N PACK
Certification:
CE ISO SGS
Application:
Cleaning, Detergent, Cosmetics, Skin Care Products, Dairy Products, Hair Care Products, Oil
Type:
Forming Filling Sealing Machine
Forming Species:
Bag Moulding
Forming Function:
Forming, Filling, Seal
Driven Type:
Electric
Material Type:
Paste
Packaging:
Bag
Packaging Material:
Plastic
Control:
PLC Control
Suitable Product:
Liquid/Sauce/Oil/Paste
Transport Package:
Wood
Specification:
6000*1100*1500mm
Trademark:
Npack
Origin:
China
HS Code:
8422303090
Supply Ability:
3000-3600bph
Package Size:
230.00cm * 190.00cm * 250.00cm
Package Gross Weight:
750.000kg
After-sales Service:
Online Instruction
Warranty:
1 Year
Automatic Grade:
Automatic
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

High Light

Highlight:

Automatic Doypack Bag Filling Machine

,

High Efficient Paste Sauce Filling Machine

Trading Information
Minimum Order Quantity:
1
Price:
9000USD/set to 50000USD/set
Packaging Details:
Wooden box
Delivery Time:
40 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100 SET
Product Description

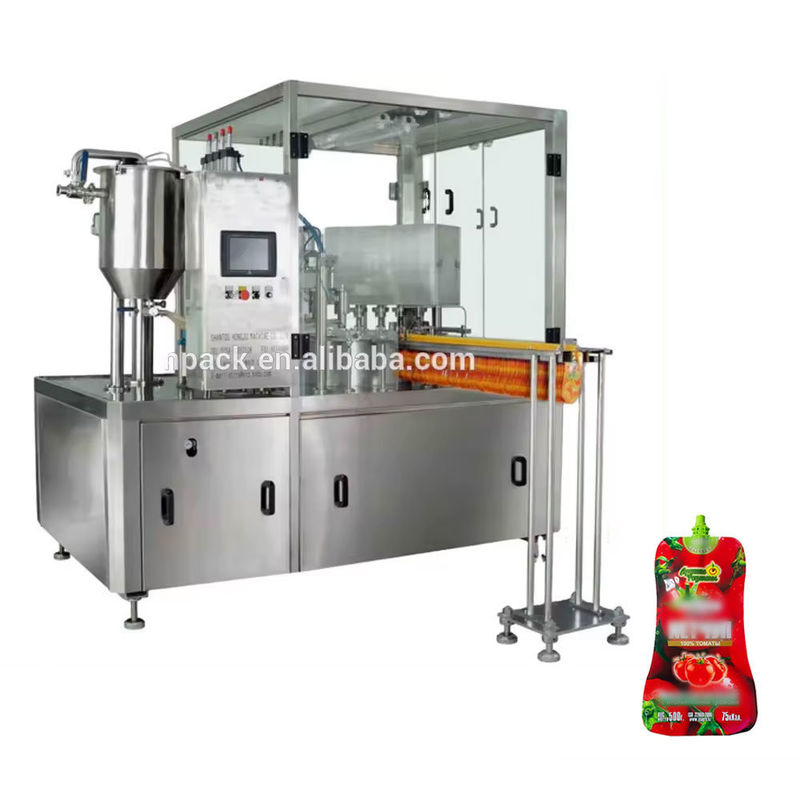

 Automatic Spout Pouch Filling and Capping Machine

High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag 0

 The Full Automatic Spout Pouch Liquid Filling Capping Machine is designed for efficient handling of liquid and semi-liquid products into nozzle bags. It's ideal for a variety of products such as jelly, soy milk, yogurt, mineral water, juice, ice cream, edible oil, seasonings, and cleaning agents like scour and laundry detergent. The machine automates several processes, including pouch-loading, vacuuming, precise filling, nitrogen flushing, spout cleaning, cap feeding and inserting, and capping, which ensures stability through magnetic torque adjustment. Additionally, it handles the final discharge of the filled product.

This machine can be equipped with a CIP cleaning system, PLC controls with a touchscreen interface, an air-purifying system, safety switches, and a glass cover, depending on client needs. Each feature is customizable, allowing for additions or removals to meet specific requirements.



Product Parameters

Nozzles Injector
2
Packing Speed
800-1500 bags/Hour
Volume
100-500ml
Powder
1.2kw
Voltage
380V/50HZ (three phase four line )
Air Pressure
0.5 - 0.7Mpa
Air consumption
0.65 m3/min
Out dimension
Main Machine: 1700*1100*2000mm
Weight
600kg

  Product Details

High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag 1
Filling--adopt with leak-proof nozzles


Feeding and Inserting the Cap

High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag 2
High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag 3
Cylinder--Control the transportation and filling of materials





Product Application

High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag 4



Related Products



1.NP-LC Automatic Spindle Screw Capping Machine

High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag 5



The NP-LC automatic spindle screw capping machine is extremely flexible , is capable of capping accurately and rapidly any cap,such as trigger cap, metal cap, flip cap and so on.



2.NP-TS Automatic Double Sides Labelling Machine

High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag 6

NP-TS Automatic double sides labelling machine also called front and back labelling machine, double sides labeller, it is application for labelling round, square, flat and unshaped and shaped bottles& containers.



3.NP-W Automatic Glass/Plastic Bottle Washing Machine

High Efficient Paste Sauce Spout Pouch Filling Machine For Automatic Doypack Bag 7



The machine is universal for glass bottle and plastic bottle rinsing with water. It adapts servo motor system for turning bottle up to down for water blowing and sucking. It can blow inside of bottle with clean water and sucking the dust out of the bottle.
