Full Automatic 10~1000g Monoblock Powder Filling And Capping Machine

Full Automatic 10~1000g Monoblock Powder Filling And Capping Machine

Product Details:
Place of Origin: China
Brand Name: N PACK
Certification: CE ISO SGS
Detail Information
Place of Origin:
China
Brand Name:
N PACK
Certification:
CE ISO SGS
Application:
Powder,flour,milk,condiments
Type:
Filling Machine
Driven Type:
Electric
Packaging:
Bag/Bottle/Jar
Control:
PLC Control
Suitable Product:
Powder
Transport Package:
Wood
Trademark:
Npack
Origin:
China
After-sales Service:
Online Instruction
Warranty:
1 Year
Automatic Grade:
Semi Automatic
Highlight:

High Light

Highlight:

1000g Powder Filling And Capping Machine

,

Monoblock Powder Filling And Capping Machine

Trading Information
Minimum Order Quantity:
1
Price:
9000USD/set to 50000USD/set
Packaging Details:
Wooden box
Delivery Time:
40 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100 SET
Product Description

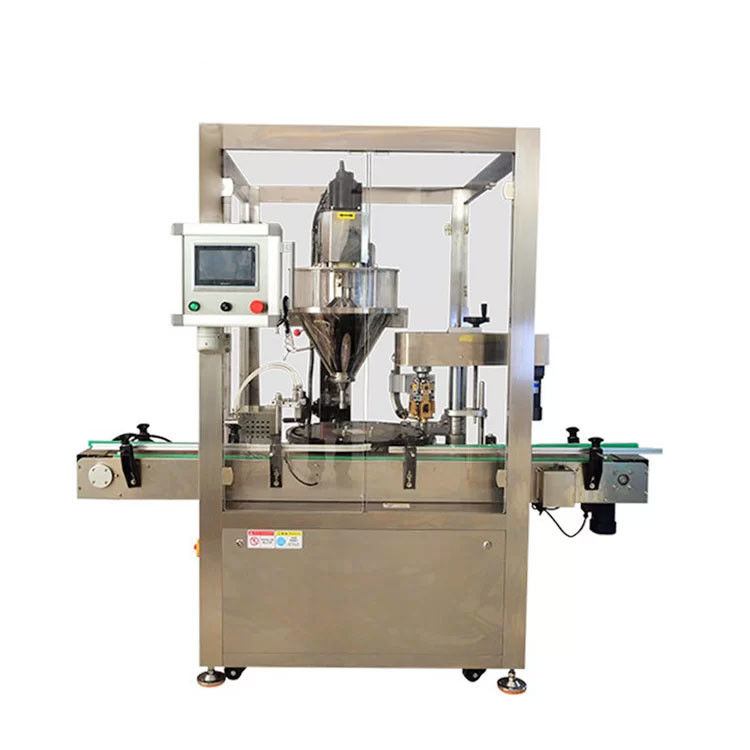

Automatic Monoblock Powder Filling And Capping Machine

The automatic monoblock powder filling and capping machine is a key component in powder production lines, designed for filling powders between 10g and 1000g. This machine integrates powder filling, cap feeding, and capping with advanced features like servo motor-driven screw filling, a user-friendly touch screen interface, and frequency control. It also offers high automation, with functions such as no bottle, no fill, and no cap detection, ensuring seamless operation. The system is designed to prevent powder leakage and utilizes electromagnetic vibration for cap feeding, while the dust cover keeps the work area clean. The machine is built with SUS304 stainless steel, meets GMP standards, and is CE certified for safety and quality.



This versatile machine is ideal for automatic bottle filling, cap feeding, and capping of various powders across industries, including pharmaceuticals, food, beverages, and chemicals. It can handle products like milk powder, soy milk powder, sesame paste, flour, starch, pharmaceutical powder, pesticide powder, coffee powder, seasoning powder, and spices such as allspice and pepper.





Key Features

1.Precision Auger Metering System: This machine uses an auger-type metering method combined with a linear conveyor system for accurate powder filling into bottles or cans.

2.High-Quality Stainless Steel Construction: The auger tool is manufactured from a single piece of durable stainless steel, ensuring hygiene and longevity.

3.Optional Add-Ons for Enhanced Functionality: Additional features such as a bottle auto-positioning device and a filling vibration system can be integrated to further improve filling accuracy.

4.Automatic Error Detection and Stop Function: The machine automatically stops filling when errors occur, including missing bottles, bottle jams, lack of air supply, or insufficient air pressure, ensuring seamless operation and reducing downtime.

5.Integration with Material Supply System: The machine can be linked with a material supply system for continuous, efficient operation.

6.Servo Motor-Driven for Precision: The transmission system is powered by a servo motor, providing high accuracy and stability in the filling process.

7.User-Friendly HMI Touch Screen: Operators can easily control the machine and monitor operations through an intuitive HMI touch screen interface.







Product Parameters

Product Name Automatic Monoblock Powder Filling And Capping Machine
Voltage 220V 50HZ
Power 3KW
Measuring method Screw auger measuring
Filling volume 5-500ML or 5-500G
Filling speed 20-60BPM
Filling accuracy ±1%
Bottle size Customizable
Cap diameter Customizable
Outline dimension 3000*1900*1800MM
Weight 500KG




Applications

The automatic powder auger filler machine is a versatile and efficient solution for filling a wide range of powders. It excels in handling fluffy, non-free-flowing, and sticky powders, ensuring accurate and consistent filling into containers. This machine is ideal for various industries and can be used to fill products such as milk powder, coffee powder, spice powder, protein powder, nutritional supplements, medicine powder, and meal replacement powders, among others.



Product Details

Full Automatic 10~1000g Monoblock Powder Filling And Capping Machine 0

Full Automatic 10~1000g Monoblock Powder Filling And Capping Machine 1 Full Automatic 10~1000g Monoblock Powder Filling And Capping Machine 2





After-sale Service
Installation:
Our expert technicians are available for on-site installation of your monoblock powder filling and capping machine, ensuring a smooth setup process. The service fee includes installation, travel, meals, and all related expenses.

Training:
Maximize the efficiency of your monoblock powder filling and capping machine with our specialized training services. We offer both on-site and factory training for dealers, machine operators, engineers, and technicians to ensure optimal machine performance.



Guarantee:
Our after-sale guarantee includes a one-year quality assurance period, fast troubleshooting response, and reliable parts supply to ensure your monoblock powder filling and capping machine runs smoothly.



Consulting Service:
Enjoy our free consultation service with personalized recommendations from our professional sales team. We provide CAD design solutions for labeling machines, ensuring you select the best equipment for your needs.



Technical Support:
We offer 24/7 technical support to keep your machine running efficiently. Whether by email or phone, our team is ready to provide quick and reliable feedback whenever needed.



Spare Parts:
We include a complimentary set of spare parts for the monoblock powder filling and capping machine during shipment. Additional high-quality spare parts are available for order at any time to keep your machine in top condition.
