Auto Low Cost Powder Bottle Filling Machine With PLC Control

Auto Low Cost Powder Bottle Filling Machine With PLC Control

Product Details:
Place of Origin: China
Brand Name: N PACK
Certification: CE ISO SGS
Detail Information
Place of Origin:
China
Brand Name:
N PACK
Certification:
CE ISO SGS
Type:
Filling Machine
Driven Type:
Electric
Packaging:
Bottle
Control:
PLC Control
Suitable Product:
Powder
Transport Package:
Wood
Trademark:
Npack
Origin:
China
After-sales Service:
Online Instruction
Warranty:
1 Year
Automatic Grade:
Automatic
Highlight:

High Light

Highlight:

PLC Control Powder Bottle Filling Machine

,

Auto Powder Bottle Filling Machine

,

Low Cost Powder Bottle Filling Machine

Trading Information
Minimum Order Quantity:
1
Price:
9000USD/set to 50000USD/set
Packaging Details:
Wooden box
Delivery Time:
40 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100 SET
Product Description

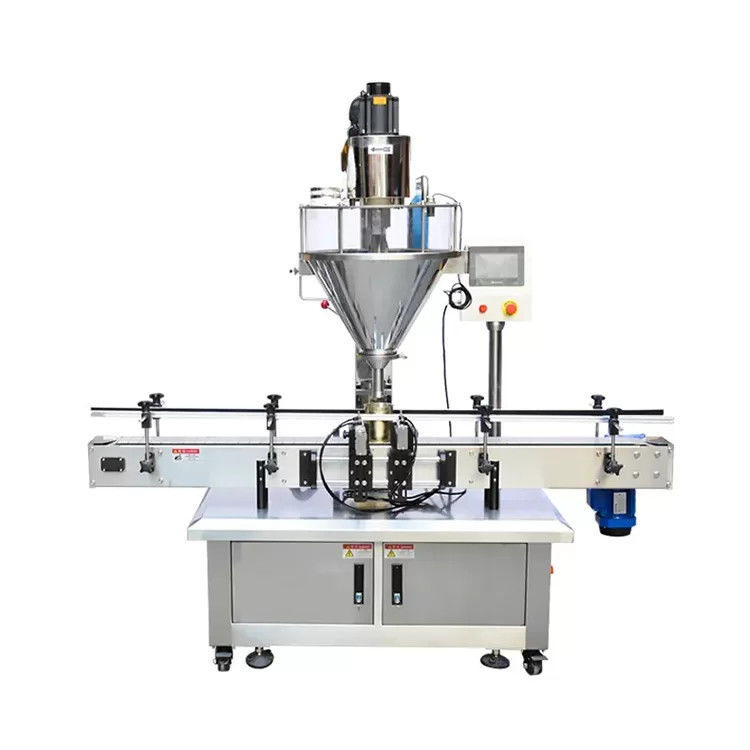

Auto Low Cost Powder Bottle Filling Machine

This machine offers a complete and cost-effective solution for your powder and granule filling production line needs. It includes a filling head, a motorized chain conveyor mounted on a sturdy and stable frame, and all essential accessories to efficiently move and position containers for filling. It precisely dispenses the required amount of product, then quickly moves the filled containers to the next stage of your production line, such as capping, labeling, or other processes.



This model is ideal for handling fluidic or low-fluidity materials, including milk powder, protein powder, pharmaceuticals, condiments, instant drinks, white sugar, dextrose, coffee, agricultural pesticides, granule additives, and more.



With guaranteed smooth operation, durability, and reliable accuracy, this machine represents the most economical option among Npack's automatic powder filling machines.





Main Feature



1. All-stainless steel construction for easy disassembly and cleaning, ensuring durability and hygiene.

2.High-precision servo motor control for accurate and consistent filling.

3.Capable of storing multiple product adjustment parameters, allowing for quick and easy recall of formulas for future use.

4.Interchangeable auger accessories enable the machine to handle a variety of materials, from ultra-fine powders to small granules.

5.Touchscreen PLC control for simple and intuitive operation.

6.Suitable for use in the food, pharmaceutical, and corrosive chemical industries. Equipped with centralized dust removal to prevent dust pollution in the workshop.







Product Parameters

Product Name Auto Low Cost Powder Bottle Filling Machine
Container size φ50—200mm H50—350mm(can be customized)
Filling weight 10-5000g (can be customized)
Filling accuracy ≤500g, ≤±1% / >500g, ≤±0.5%
Filling speed 25-45 bottles/min(depend on the material and weight)
Voltage 110V/220V/380V
Air compression 6KG/cm2 0.05M/3/min
Power 2.3KW
Machine weight 350KG
Outline dimension(mm) 2000*800*1800mm
Hopper capacity 50L/hopper



  Product Details

Auto Low Cost Powder Bottle Filling Machine With PLC Control 0


1.With a large hopper and a powerful motor, the machine ensures stable operation and makes it easier to load filling materials, significantly enhancing working efficiency.

2.The machine is equipped with a chain conveyor belt that smoothly transports bottles. The width and length of the conveyor can be customized to meet specific production needs.

3.A high-quality electric eye sensor detects passing bottles, controlling the machine's operation to prevent missed bottles and improving overall filling accuracy.

4.Additionally, the machine features a weighing device, which can be used to control filling volume when the conveyor belt is removed. This provides multiple working modes, offering flexibility to adapt to different production requirements.





After-Sale Service

Installation:
Our experienced technicians are ready to travel and install the powder filling machine. The service fee covers installation, travel, meals, and any other related expenses.

Training:
To ensure optimal performance of the powder filling machine, we offer comprehensive on-site or factory training for dealers, operators, engineers, and technicians.

Guarantee:
We provide efficient repair services with a one-year quality assurance period, reliable parts supply, and prompt troubleshooting support when needed.

Consulting Service:
Take advantage of our free consultation services. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the powder filling machine.

Technical Support:
Enjoy all-weather, long-term technical support. Just send us an email or give us a call, and we'll provide prompt feedback, ensuring smooth operations.

Spare Parts:
We include a set of essential spare parts for the powder filling machine at no extra cost during shipping. You can also order a full range of high-quality parts anytime to keep your machine running efficiently.
