Automatic Powder Filling And Capping Machine Monoblock Filling System

Minimum Order Quantity : 1 Price : 16000USD/set to 80000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-PK

Detail Information


monoblock filling system


Powder Filling Machine


powder filling and capping machine

Product Description

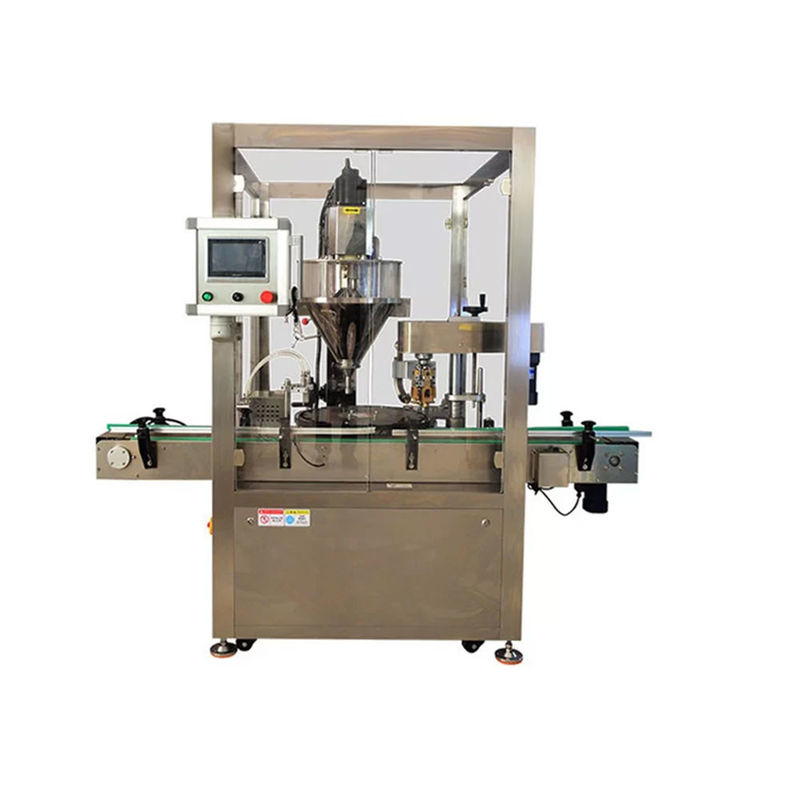

Automatic Monoblock Powder Filling And Capping Machine

The monoblock powder filling and capping machine serve as integral components within powder production lines, primarily designated for filling powder ranging from 10 to 1000g, as well as capping and feeding caps. It employs servo motor screw filling, features a user-friendly touch screen interface, and incorporates frequency control. Additionally, it offers functions such as bottle detection, absence of bottles, and absence of caps, ensuring a high level of automation. The filling process is leak-free, with electromagnetic vibration facilitating cap feeding and a dust cover included for added protection. Engineered with a rational design, the machine is straightforward to operate, boasting a SUS304 machine body compliant with GMP standards and CE certification.


This machine is suitable for the automatic filling, cap feeding, and capping of various substances including medicines, food items, beverages, and chemical powders such as milk powder, soy milk powder, sesame paste, flour, starch, pharmaceutical powder, pesticide powder, coffee powder, seasoning powder, allspice powder, and pepper, among others.


Key Features:
1. Utilizes an auger-based metering method alongside a linear conveyor system for precision powder filling into bottles or cans.
2. The auger tool is constructed as a single piece of stainless steel.
3. Options for bottle auto-positioning and filling vibration devices are available for integration.
4. Equipped with automatic error detection and stoppage capabilities, halting filling operations in the event of bottle absence, bottle jamming, lack of air supply, or insufficient air pressure.
5. Capable of system linkage with material supply systems.
6. Transmission system driven by servo motor ensures high accuracy and stability.
7. Features an HMI touch screen interface for intuitive operational control.



Product Name Automatic Monoblock Powder Filling And Capping Machine
Voltage 220V 50HZ
Power 3KW
Measuring method Screw auger measuring
Filling volume 5-500ML or 5-500G
Filling speed 20-60BPM
Filling accuracy ±1%
Bottle size Customizable
Cap diameter Customizable
Outline dimension 3000*1900*1800MM
Weight 500KG


Product details

Automatic Powder Filling And Capping Machine Monoblock Filling System 0 Automatic Powder Filling And Capping Machine Monoblock Filling System 1


1. The entire machine employs a servo-driven index plate positioning system and touch panel, enhancing both packing precision and speed. It can be customized as single or double-headed to meet clients' packing needs.

2. The machine is thoughtfully designed for easy adaptation to different packing products and for straightforward cleaning procedures.

3. Featuring a touch panel interface, the machine provides operational instructions in both Chinese and English, ensuring simplicity and clarity. Packing weight can be adjusted, and operational modes can be easily switched. It alerts users in case of malfunctions.

4. The control system utilizes PLC technology, ensuring smooth operation and resistance to interference.

5. Filling operations utilize servo drive technology, offering accuracy, precision, and extended operating life. The filling speed is adjustable, and stirring is performed by a maintenance-free motor from Taiwan.

6. With interchangeable screw attachments, the machine is suitable for packing products ranging from fine particles to ultrafine powders. Additional features such as aspiration and vibration devices can be added to accommodate different materials.

7. The machine allows for the storage of various product formulation parameters, easily accessible at any time.

8. This model complies with national GMP and QS health certification requirements, ensuring adherence to quality and safety standards.
