Automatic E Cigarette Tube Filling Machine

Product Description

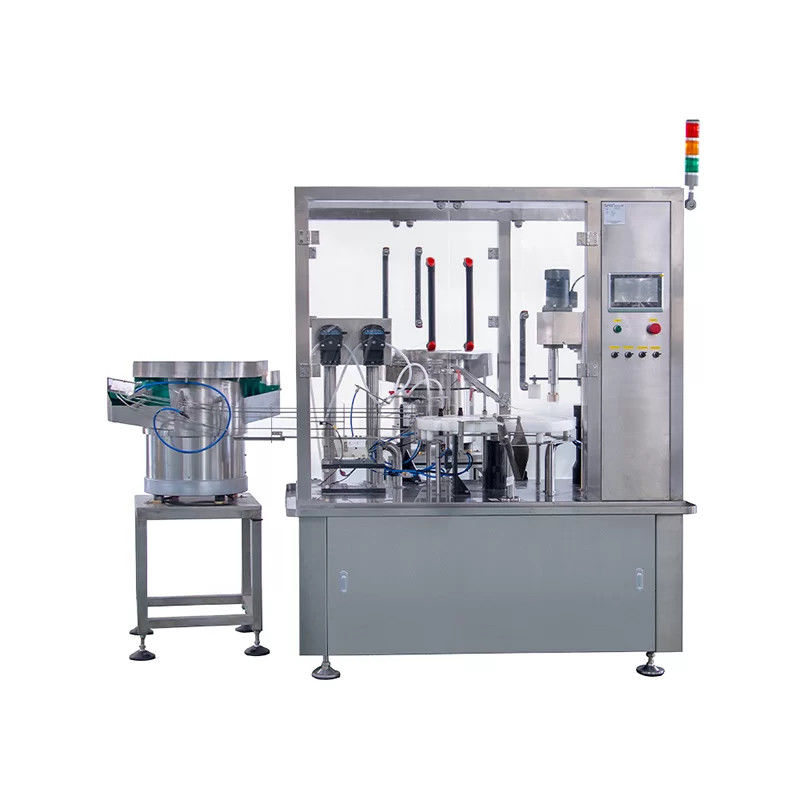

automatic e cigarette filling machine

An electronic cigarette (e-cigarette) is a device that replicates tobacco smoking electronically. It comprises an atomizer, a power source such as a battery, and a container such as a cartridge or tank. Rather than producing smoke, the user inhales vapor, a process commonly referred to as "vaping."

The e-cigarette filling machine discussed here specifically pertains to equipment used for bottling e-cigarette oil.

In the E-Cigarette industry, there's a demand for cost-effective and reliable liquid filling equipment. With over a decade of experience in liquid filling, NPACK offers the expertise and assistance needed to address the industry's evolving requirements, presenting significant challenges for businesses. We take pride in our industry collaborations, positive reputation through word-of-mouth, equipment quality, and exceptional post-sale service, all of which are well-regarded within the industry.

Filling machines suitable for free-flowing liquids and precise, small fill volumes are prevalent in the vaping sector. Npack suggests utilizing peristaltic pump filling machines for products thicker than water but with lower viscosity solutions, including E-Liquid, E-Smoke, Smoke Juice, and E-Cigarette solutions.

The filling and capping machine can cater to various products and industries, including e-liquid bottles for e-cigarettes, food processing (such as flavors, oil, etc.), or cosmetics (like cream, liquid soap, etc.). This compact-sized machine, capable of dosing, screw capping, and labeling products, meets the highest expectations regarding filling and labeling requirements. With its latest innovations, it can handle products ranging from 5mL to 500mL (16oz) with a maximum diameter of 90mm (3.5″).

Featuring a peristaltic pump system, it enables liquid change in under 2 minutes without necessitating pump cleaning. Moreover, it can be outfitted with a volumetric pump using a flow meter or piston, depending on the product's viscosity.

The complete packaging line can apply up to 2 labels and achieve a filling rate of up to 60 products per minute. Controlled via an intuitive touch screen interface, it offers storage for 50 product settings and ensures ease of adjustment and operation. This monobloc is ideally suited for e-liquid vials, soap bottles, essential oil, and food bottles, although it can also be utilized for various other applications.

Feature

1. The manipulator fine-tunes the nozzles to optimize the feeding stoppers rate when utilizing narrow-edge nozzles.
2. Peristaltic pump filling, managed by a single-chip system, guarantees exceptional dosage precision, facilitating dosage adjustments without interrupting machine operation.
3. This monoblock machine is designed for filling, feeding stoppers, and capping, prioritizing space efficiency and featuring a straightforward structure. It presents an elegant appearance and facilitates easy cleaning.
4. Accurate graduator positioning ensures steady operation, enabling the filling of bottles of varying sizes.
5. Equipped with a touch panel control interface for effortless operation and elevated automation levels. Speed adjustments can be made using an inverter.
6. Automatic halting in the absence of bottles or caps prevents any filling or capping processes from taking place.

Parameter

Operation Process:

1. Material Preparation: Ensure an ample supply of bottles, plugs, covers, and liquid medicine. Vibrating hoppers maintain a continuous supply of plugs and covers, positioned both inside and outside the designated cover locations.

2. Bottle Feeding: Bottles are organized and directed by the bottle feeder turntable.

3. Filling: Bottles are carefully positioned for filling through oscillation, followed by intermittent drive for filling, stoppering, covering, and screw capping. Liquid filling is accomplished using a peristaltic pump and an automatically moving needle that precisely fills the liquid in the bottle.

4. Plugging: Plugs are delivered from a vibrating hopper to the stoppering station, where bottles are guided by wheel clearance. Optical fiber detection regulates the stoppering cylinder solenoid valve, ensuring proper stoppering.

5. Capping: Bottles with inserted plugs proceed to the capping station, where screw caps are applied using a cylinder-based mechanism. The screw caps are rotated and lowered until securely fastened, with torque adjustments made for optimal tightness.

6. Bottle Egress: Capped bottles are conveyed away from the machine via the conveyor belt, prepared for subsequent packaging procedures.

If you are interested in automatic e cigarette filling machine, please contact us
