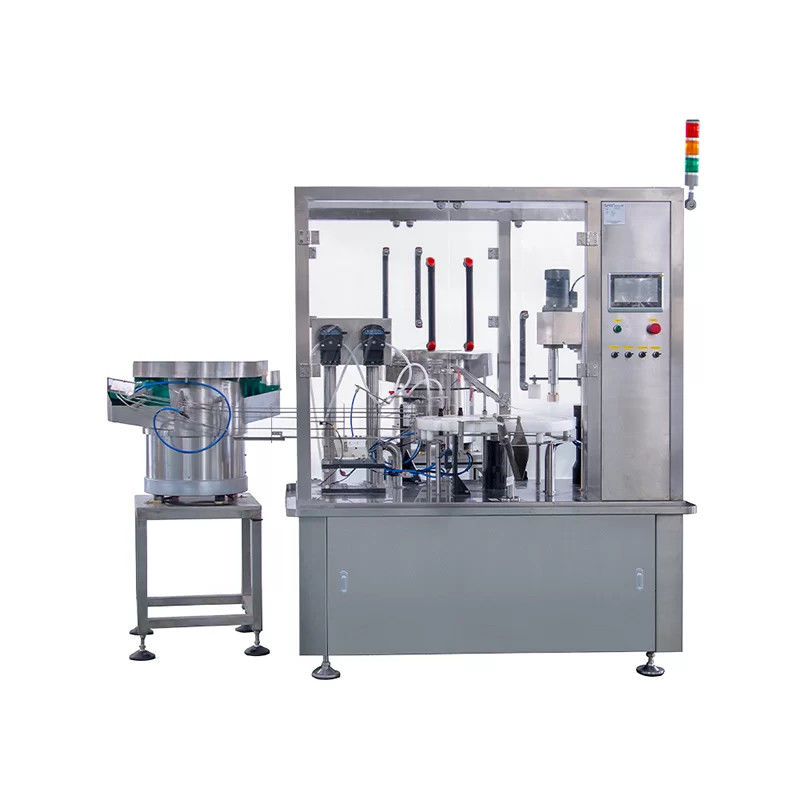

Automatic E-liquid Monoblock Filling and Capping machine

This e-liquid filling machine is designed to fill both round and irregularly shaped bottles with liquids. It is widely utilized in various industries, including pharmaceuticals, food, beverages, cosmetics, and more, for filling different types of containers with liquids.

The e-juice monoblock filling capping machine consists of several critical components, each serving a specific function, such as filling the product, capping, screwing on caps, and labeling. It includes peristaltic pumps, nozzles, unloading carts, and moving conveyors. The machine also incorporates the latest parts used in modern machines. Constructed with high-quality materials, this e-liquid filling machine adheres to GMP standards.

E Liquid Filling Machine Applications

This e-liquid filling machine is ideal for screw capping e-liquid bottles without wasting materials. It is suitable for filling various products, including:

1. Eye drops
2. E-liquids
3. Nail polishes
4. Essential oils

Product Detials

Feature

1. E-liquid filling machines are equipped with constant torque screw caps and an automatic sliding system to prevent cap breakage.
2. Filling is done using peristaltic pumps, ensuring precise measurements and easy control.
3. The filling mechanism includes a suction function to prevent liquid leakage.
4. The machine features a colorful touchscreen display, a high-quality PLC control system, and mechanisms that ensure no filling, plugging, or capping occurs without a bottle.
5. The filling nozzle is made of 316 stainless steel, while the rest of the machine body is made of 304 stainless steel. It is easy to disassemble and clean, meeting all GMP requirements.

Parameter

E-Liquid Bottle Filling and Capping Main Parts


Filling
After placing the oscillating bottle opener, the same thick disk is used for filling, sealing, and screwing on the cap. A peristaltic pump draws the solution through a silicone tube, and the filling station automatically fills the bottle as the needle moves up and down. Repetition of this needle movement ensures complete filling.

Capping
The solid plug in the bottle is repositioned with the screw cap disc. The cylinder spins to screw lids below and around, adjusting up and down to cover various sizes. When the bottle stops straight, a decrease in spin secures the lid, finishing the screw cover. The continuous torque design of the screw cap body ensures firmness after installation and facilitates automatic sliding, preventing damage to the bottle cover or threads.

If you are interested in automatic e cigarette filling machine, please contact us
