NP-MFC Liquid Automatic Monoblock Filler Capper Machine For Vial Bottles

Minimum Order Quantity : 1 Price : 16000USD/set to 80000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-MFC

Detail Information

Filling Speed: 30-80bottles/minute Material: 304 Stainless Steel
Bottle Type: Plastic Bottle And Glass Bottle Power Consumption: 3.5KW
Packaging Type: Bottles, Plastic Tube Control: PLC And Touch Screen
Model: NP-MFC Usage: Filling Capping
Filling Accuracy: ±0.5%

monoblock automatic filling machine


Monoblock Liquid Filler and Capper


monoblock filling machines

Product Description

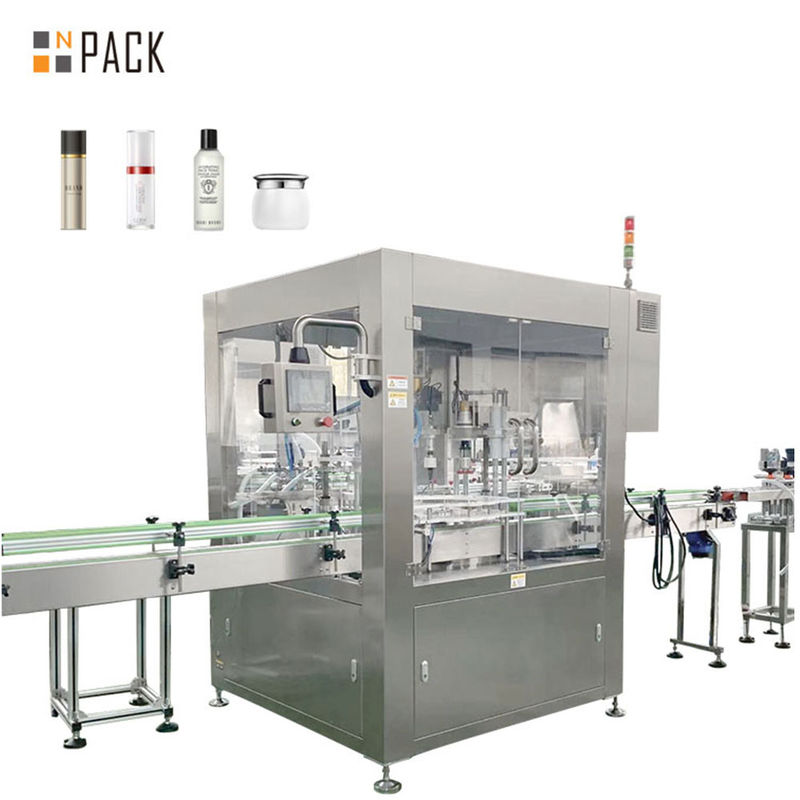

NP-MFC Automatic Monoblock Filling and Capping Machine for vial bottles

The Npack compact automatic liquid filling machine is specifically crafted for liquid filling applications in pharmaceutical, cosmetic, biotech, food, and e-liquid industries. Its Fill-Plug-Cap-Torque system is designed to streamline the process.Monoblock Filleris a Fill-Plug-Cap-Torque system especially designed for applications in pharmaceuticals, cosmetics, biotech, food, and e-liquid industries.

Incorporating precise dispensing mechanisms such as volumetric pistons or peristaltic pumps and diving nozzles, our compact filler ensures accuracy in liquid filling, even when volumes vary between containers. The servo-driven starwheel facilitates the smooth movement of bottles and jars through each stage, maintaining precision.

With a compact, the Monobloc can be accommodated in tight spaces. Additionally, it offers customization options like labeling, nitrogen purge, and various other functions tailored to enhance your specific process requirements.


Features & Advantages:


  • Equipped with a servo motion controller to synchronize operational stations for seamless performance.

  • The machine features a servo-powered 16-pocket starwheel with a backing plate, ensuring precision in its movements.

  • Achieves a speed of 55 cycles per minute in a single index configuration, enhancing overall productivity.

  • Incorporates a nozzle dive station with an adjustable, servo-controlled stroke for flexibility in liquid dispensing.

  • Utilizes a Plug & Cap sorting system with 304 Stainless Steel electromagnetic vibratory bowls for reliable and durable operation.

  • Employs a Plug & Cap indexing servo-driven starwheel for pick-up stations, ensuring a smooth and efficient process.

  • Features torque control using a servo motor with a range of 2-30 inch lbs., allowing for accurate sealing.

  • Incorporates glow-light status beacons in green, amber, and red, accompanied by white light illumination when guard doors are open.

  • Utilizes an Siemens PLC Compact Logix series for robust and reliable control.

  • Equipped with an SIEMENS HMI Panel View Plus 10" for an intuitive and user-friendly interface.



Filling capacity


Production capacity

30-70 bottles/minute(Adjustable Customized according to client needs)

Filling accuracy


Finished cap yield


Equipment power

220V / 50Hz

Equipment power


Equipment size



Eye drops, Creams, Essential Oil, CBD Oil, E-Liquid, E-Juice etc
