Full Automatic Multi-Head Honey Bottle Filling Machine 100-1000ml With Heating system

Product Description

What is Honey?

Honey, a natural sweet substance, is meticulously crafted by honeybees through the collection of nectar from plants or plant secretions. This process results in a viscous liquid food with a rich, dark golden hue, produced in the honey sacs of various bees. The unique flavor and color profiles of honey are intricately linked to the specific flowers from which the nectar is gathered.

Beyond its visual and taste characteristics, honey is a complex food primarily composed of two simple sugars, glucose, and fructose. Its composition extends further to include a myriad of organic compounds, contributing not only to its delightful taste but also offering significant health benefits.

Due to honey's notably high viscosity (10,000 cps, as detailed in the Common Liquid Viscosity Chart), NPACK recommends the use of a piston filling machine for efficient honey filling. Properly heating the honey facilitates its flow during the filling process, emphasizing the importance of temperature control to preserve the distinct flavor and texture of this natural sweetener.

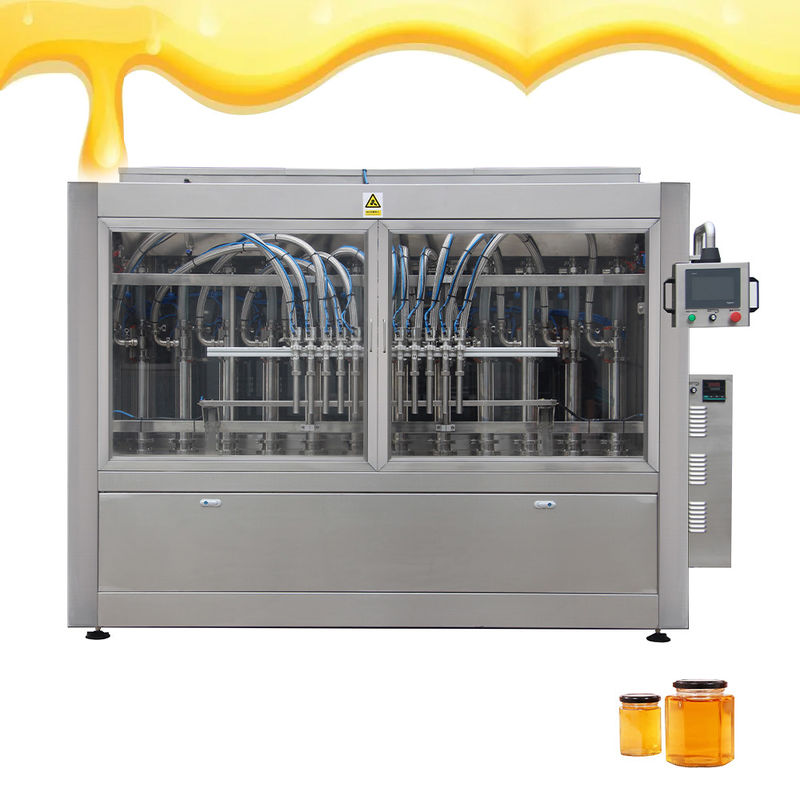

Automatic Multi-Head Honey Bottle Filling Machine 100-1000ml

The Automatic Honey Filling Machine operates based on a volumetric principle utilizing a rotary valve-type piston. Encased in an elegantly matte-finished stainless steel body, the unit is designed to be compact and versatile. It features a stainless steel slat conveyor with self-centering devices and a stainless steel piston. The primary driving components of the machine, including the main drive and conveyor drive, are powered by an A/C Motor with a synchronized variable A/C Frequency drive, ensuring efficient and precise operation.

ROTARY VALVE MODEL

The rotary valve model is equipped with a rotary valve, making it ideal for dispensing lotions and creams with an accuracy of ±1%. This automatic model facilitates the movement of containers on a conveyor belt, lifting them at the filling station to ensure a precise layer of honey, ointment, or cream. It includes features such as an in-feed hopper, a rotary valve with a positive shut-off nozzle to eliminate drips, stroke limitation for fill volume adjustment, and is designed to function independently. Constructed with stainless steel, the machine boasts a pneumatic (3.5kgf/cm square) and electric (single phase) control system over air for efficient and reliable performance.

How it works?

The operation involves containers progressing along a stainless steel slat conveyor, positioned beneath the filling nozzles via an adjustable twin pneumatically operated valve system. This twin pneumatically operated stopper system is meticulously designed to ensure accurate centering of the container below the nozzles, effectively preventing any spillage of honey onto the container.

Features:

• No Container, No Filling System:Ensures a systematic arrangement where filling occurs only when a container is present.

• Automatic Single Head Honey Filling Machine:Accurately fills products of different viscosities in jars, containers, and bottles of various shapes and sizes with precision up to ±1%.

• Drip-Free Filling:Equipped with a positive cut-off valve to prevent dripping during filling.

• Adjustable Fill Quantity:Easily adjust the quantity of fill as needed.

• Compatibility with Sealing/Capping Machines:Can be seamlessly linked with automatic sealing or capping machines.

• Versatility in Product Types:Suitable for filling honeys, adhesives, balms, gums, and various food, pharmaceutical, or cosmetic products in honey form.

• Drive System:The main drive and conveyor drive operate with an A/C Motor synchronized with a variable A/C Frequency drive.

• Wide Range of Product Handling:Capable of filling a diverse range of products.

• Handling Viscous and Thick Products:Effectively fills viscous fluids and thick products, including those with particulates.

• Mechanically Reliable:Simple and mechanically reliable operation.

• Easy Cleaning and Maintenance:User-friendly design for easy cleaning and maintenance.

• Accurate Metered Dosing:Ensures accurate and reliable metered dosing.

• Filling Range Options:Offers a choice of filling ranges from 5 ml to 1000 ml for pasty products with the use of changeable parts.

• Optional Features:Water jacketed hopper (Optional),Acrylic cabinet (Optional),Stirrer screw type to push material down (Optional).

Main parameters
