Automatic Vinegar Filling Machine For Glass Bottle Liquid Solution

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-VF

Detail Information


vinegar filling machine


Vinegar Filling Solution


Vinegar bottle liquid filling machine

Product Description

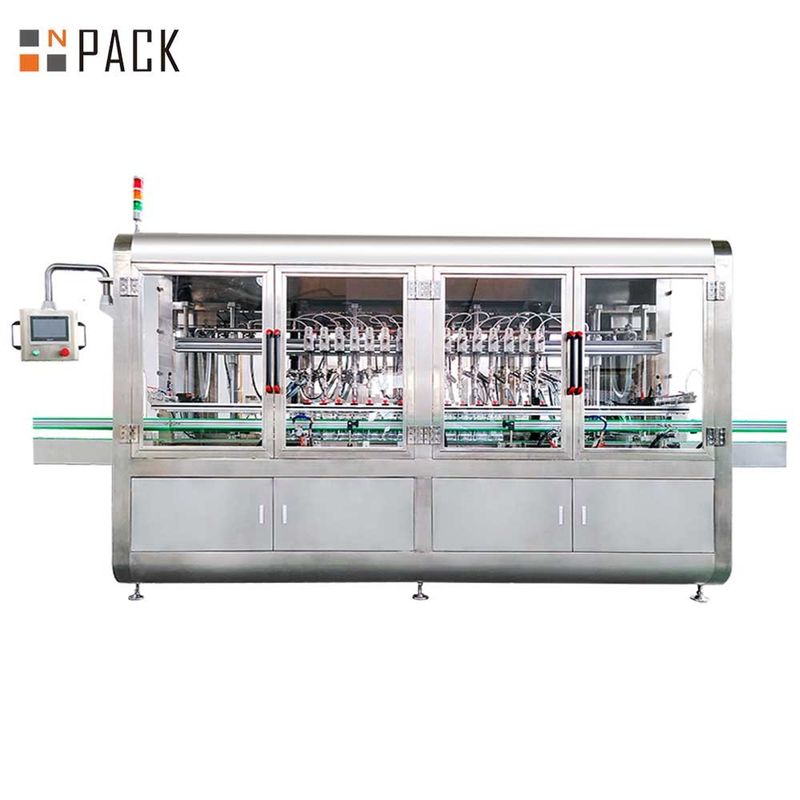

Automatic Vinegar Filling Machine for Glass Bottle

Vinegar is a liquid solution containing acetic acid that typically flows freely at room temperature. During the filling process, vinegar often produces foam. NPACK suggests utilizing an overflow filling machine for bottling vinegar. Alternatively, gravity and piston filling machines can also be employed for this purpose. To prevent foam production, it's essential to utilize down diving filling technology or employ filling nozzles with a suck-back function specifically designed for vinegar bottling.


Overflow filling equipment operates based on the principle of filling containers to a specific level. Regardless of slight variations in internal container volume, the specialized nozzles incorporated in these filling machines ensure uniform filling levels for each container. These fillers are particularly suitable for thin to medium viscosity products and excel in handling foamy substances.


NPACK's overflow filling machines are optimized for filling liquids with low to medium viscosity. They are particularly effective for filling foamy products at high speeds. Examples of products our overflow filling machinery can handle include sauces, syrups, light gels, shampoos, foamy cleansers, chemicals, water, fruit juice, wine, tea, and other non-carbonated beverages. Our machines are designed to accommodate various rigid plastic, metal, and glass containers. Constructed on heavy-duty stainless steel frames, all contact parts are made from food-grade materials to ensure compliance with safety standards.

Main Feature

1. Utilizing an advanced pneumatic valve for filling, the backflow filling head effectively implements suction to prevent foam and excess liquid, ensuring consistent liquid levels and preventing dripping.

2. Employing a low-level liquid storage cylinder, the entire machine facilitates easy cleaning and disinfection.

3. Featuring a bottle mouth device, the filling head accurately positions itself after the bottle mouth, enabling seamless filling as it extends into the container.

4. Offering convenient adjustment of filling volumes, the operation is user-friendly, allowing for quick adaptation to various bottle specifications.

5. Ensuring the integrity of the bottle mouth is essential for optimal performance.


Product details


Automatic Vinegar Filling Machine For Glass Bottle Liquid Solution 0Automatic Vinegar Filling Machine For Glass Bottle Liquid Solution 1

Automatic Vinegar Filling Machine For Glass Bottle Liquid Solution 2

Automatic Vinegar Filling Machine For Glass Bottle Liquid Solution 3



base on 500ml
12-14 bpm
24-28 bpm
36-42 bpm
48-56 bpm
60-70 bpm
70-80 bpm
80-100 bpm
Air Pressure(mpa)


Application of Overflow Filling Equipment
Those acquainted with NPACK and our machinery are likely familiar with the overflow filling machine, a staple in our packaging lineup. Unlike volumetric liquid fillers, overflow fillers operate on a cosmetic filling principle, ensuring uniform fill levels in each bottle, even when there are slight variations in interior volume.


Cosmetic fills are particularly advantageous for liquid products packaged in clear containers. Consistency across all products enhances shelf appeal, eliminating consumer concerns about product quantity discrepancies. While bottled water, distilled spirits, and various beverages are primary users of overflow filling equipment, many other products also benefit from this technology, regardless of container transparency. In essence, overflow fillers are valued for more than just their visual appeal.


Although typically suited for thin-viscosity products resembling water, overflow fillers can handle slightly thicker liquids as well. Salad dressings, whether in clear containers or not, commonly employ overflow filling methods. Even dressings containing small particulates like herbs can be efficiently filled using this technology. Additionally, detergents, shampoos, and manufacturers of thinner soaps often opt for overflow fillers. The practice of returning excess product to the reservoir can also minimize waste in these applications.


Overflow fillers are also well-suited for foamy cleaners and chemicals. In situations where products foam initially before settling, conventional filling methods may result in underfilled bottles. However, the specialized nozzles of overflow fillers create a seal over the container opening, allowing excess foam to be directed back into the reservoir via the return line. This ensures clean, consistent fills without messy spillage. Ultimately, overflow filling equipment finds application across a wide range of industries, including Food and Beverage, Household Items, and the cleaning and chemical sectors.


If you are interested in vinegar filling machine, please contact us
