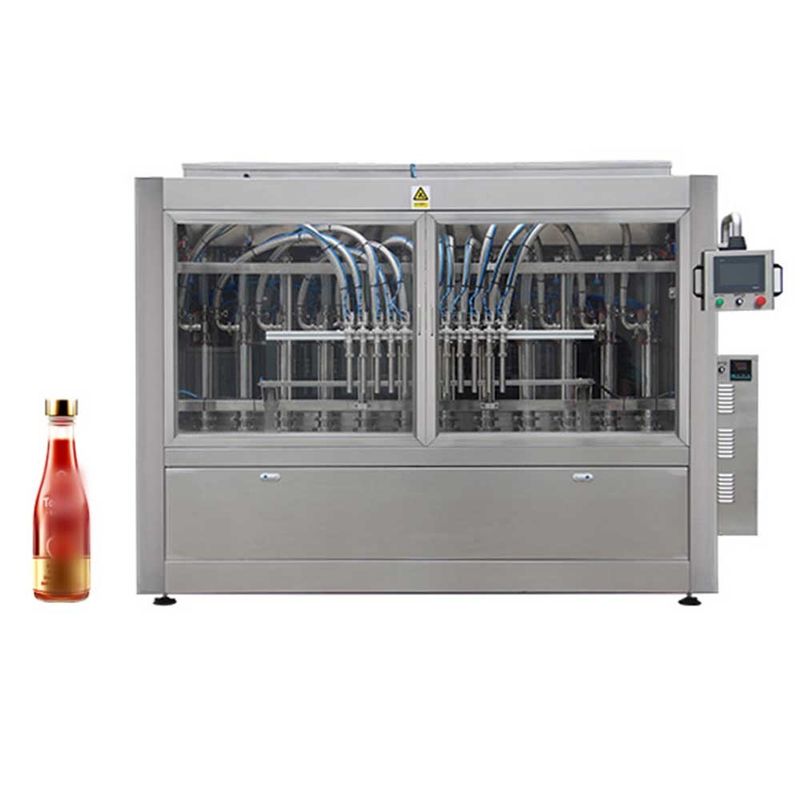

Automatic Food Grade Soft Tube Tomato Paste Bottle Filling Machine

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: NPACK
Certification: CE Model Number: NP-VF

Detail Information

Application: Sauce, Paste, Jam, Ketchup Automatic Grade: Automatic,
Bottle Material: PET Or Glass Contact Material: Stainless Steel 316
Feed Cylinder Structure: Multi-Room Feeding Filler: Ketchup, Sauce, Mayonnaise,peanut Butter
Filling Accuracy: ±1% Filling Rage: 100ml-5L
Packaging Material: Wooden Box Structure: Linear
The Material: Stainless Steel Warranty: One Year
After-sale Service: Online Support

Product Description

Tomato sauce encompasses a variety of sauces primarily derived from tomatoes, often served as a meal component rather than a condiment. These sauces are commonly paired with meats and vegetables and are well-regarded as bases for Mexican salsas or pasta sauces. Typically, tomato sauce exhibits a viscosity of around 200cps at room temperature, demonstrating liquid flow properties. Consequently, NPACK recommends the utilization of piston filling machines for such applications.


Piston fillers are engineered to measure and dispense free-flowing products, including thin and moderately dense liquids, into containers. Each machine is equipped with one or more volumetric pistons. During each fill/release cycle, the product is drawn from the container or hopper into the product cylinder during the intake stroke. Subsequently, the downward stroke commences once the product cylinder reaches its predetermined fill level, expelling the product from the cylinder and into the container.


Our piston fillers ensure precise, drip-free depositing, enhancing accuracy in your product lines. Configured to deposit precise amounts of sauces, stews, batters, meat/sauce mixtures, and pastes consistently, our piston fillers and depositors maintain the highest level of product fill accuracy while minimizing product degradation.


Key Features:

1. The equipment rack boasts an enclosed structure, ensuring safety and hygienic operation.

2. The granular sauce filling machine integrates a high-precision piston metering device driven by a servo motor, ensuring precision and reliability.

3. Constructed from SUS304 stainless steel, the chili sauce filling machine adheres to food production standards.

4. The automatic hot sauce filling machine utilizes premium sealing elements and effective anti-drip measures to prevent any dripping during filling.

5. With a dedicated material storage box, the equipment can autonomously clean the pipeline, offering convenience for maintenance and refilling.

6. The granulated sauce filling machine's servo motor incorporates a frequency conversion speed regulation conveying system, allowing adjustment based on production speed.

7. Equipped with a photoelectric system, the filling head accurately identifies the positioning status of filling bottles, facilitating efficient bottle filling and preventing errors.

8. The material box in the automatic chili sauce filling machine provides selection options and adjustable mixing speeds, simplifying the use of different mixing speeds for enhanced versatility.

Main Paramters

base on 500ml
12-14 bpm
24-28 bpm
36-42 bpm
48-56 bpm
60-70 bpm
70-80 bpm
80-100 bpm
Air Pressure(mpa)


Product Details

Automatic Food Grade Soft Tube Tomato Paste Bottle Filling Machine 0 Automatic Food Grade Soft Tube Tomato Paste Bottle Filling Machine 1
Automatic Food Grade Soft Tube Tomato Paste Bottle Filling Machine 2 Automatic Food Grade Soft Tube Tomato Paste Bottle Filling Machine 3



1. Servo Motor Drive
The NP-VF series volumetric filling system employs a cutting-edge servo motor drive to control the primary filling mechanism, ensuring exceptional stability and precise positioning. The vertical motion of the filling piston promotes long-term energy efficiency and effectively reduces machine load.


2. Tool-Free Adjustments
Adjustments can be effortlessly executed via the PLC without the need for tools, delivering swift and efficient results. The sophisticated servo control system design provides flexibility for filling surface layer liquids, bottom layer liquids, and bottle neck (opening) filling, tailored to different types of liquids.


3. Precision Accuracy
The advanced servo system regulates the filling volume through precise piston strokes, ensuring remarkable filling accuracy. The piston is intelligently designed with an adjustable mechanism, allowing users to achieve unparalleled precision.


4. Versatility
The Automatic Servo Filling Machine exhibits versatility and is suitable for applications in food, pharmaceuticals,

Company Profile

With a legacy rooted in innovation and precision engineering, we proudly position ourselves as a top-tier manufacturer of sauce filling machines. Npack, renowned for its specialization, has perfected its expertise in crafting paste filling machines that set industry standards. Our machinery is meticulously designed to meet the diverse needs of the sauce processing and packaging sector.


Committed to pioneering sauce filling technology, we continuously invest in research and development to deliver cutting-edge advancements. The Npack team remains unwavering in its dedication to providing exceptional service and support throughout our partnership. With a global footprint, we empower sauce processors and manufacturers to elevate their production capabilities.

After-sale Service

1. Setup:
Our team of skilled technicians is prepared to dispatch and install your sauce filling machine promptly. The service fee covers installation, travel expenses, meal allowances, and more.


2. Training:
To ensure optimal performance of your filling machine, we provide on-site or factory training sessions tailored for dealers, machine operators, engineers, and technicians.


3. Assurance:
When servicing the filler machine, expect efficient assistance, coupled with a one-year quality assurance period, parts supply, and prompt troubleshooting feedback.


4. Consulting:
Take advantage of our complimentary consultation service. Our experienced sales team will guide you to the most suitable solution, complete with CAD drawing designs for the bottle filling machine.


5. Technical Help:
Benefit from our extensive, ongoing technical support. Simply reach out via email or phone, and we'll provide swift assistance, ensuring your operations run smoothly.


6. Replacement Components:
Included in transportation are vital spare parts for the filling machine at no extra cost. Additionally, you have the option to order a comprehensive range of high-quality parts as needed.
