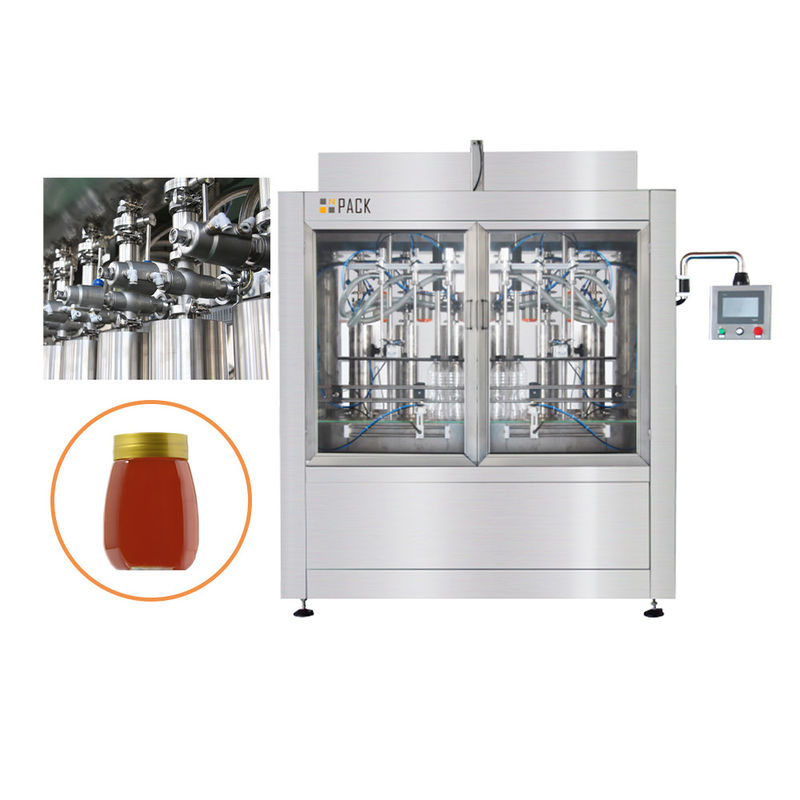

Automatic Honey Filling Capping Labeling Machine
The Honey Filling Capping Labeling Machine is a great way to pack honey for honey makers, food producers and those who package honey. This machine will help you produce more honey faster and maintain consistent product quality. This machine is designed to work with thick honey, honey paste and other sticky substances. It uses automatic filling technology, which is then paired with compatible capping and labeling equipment, to form a productive honey packaging process.
With its servo-driven piston filling technology, this equipment can provide accurate fill volume, stable performance and less dripping of product during the filling process. It also features a user-friendly PLC-based touch screen controller that allows the operator to adjust the fill parameters and customize the fill configurations. Therefore, this equipment will meet the needs of all types of honey packaging applications, including small-scale production and large-output manufacturing operations.
Key Features of the Honey Filling Capping Labeling Machine
1.High-Precision Servo Piston Filling System
The servo-driven piston filling system was specifically created to handle thick, sticky honey. This type of filling system allows you to accurately fill each container with a precise amount of product. Additionally, it will help you reduce product drip and minimize the variability in your filling process, which will allow you to achieve consistent filling results on every container.
2.Automatic Filling, Capping and Labeling Integration
The honey filling equipment can be combined with automated capping and labelling devices to create a complete honey packaging system. An integrated packaging system will assist in reducing the number of hands involved in the packaging process, and will also help to increase overall production efficiency.
3.PLC Touchscreen Control
An intuitive PLC touch screen is provided so that an operator can easily change filling volume, as well as other operational parameters. Filling parameters can be set differently for different size containers and product specifications; therefore, changing from one container size to another or from one product type to another is much simpler and faster.
4.Flexible Filling Head Configurations
With 2 to 16 filling heads available on the machine, it is possible to configure the machine for varying production capacity and output. The number of filling heads, volume of each fill, and the configuration of the machine are customizable based upon the production requirements of the user.
5.Compatible with Different Containers
This equipment is suitable for filling honey into various types of jars, bottles, and other suitable containers. This flexible setup allows this equipment to be a practical option for honey producers that use several sizes and shapes of packages and configurations.
6.Hygienic Stainless Steel Construction
The honey filling machine, constructed of stainless steel and food-grade product-contact components, was built specifically for use in food manufacturing facilities. The honey filling machine's practical design provides ease of cleaning and maintenance, which will help manufacturers provide a hygienic packaging process.
Parameters
|
|
|
|
|
|
|
|
NP-VF-16
|
|
|
|
|
|
|
|
|
16
|
|
|
100-500,100-1000,1000-5000
|
Capacity(bpm)base on 500ml
|
12-14
|
24-28
|
36-42
|
48-56
|
60-70
|
70-80
|
80-100
|
|
|
|
|
|
|
|
|
220VAC SINGLE PHASE 1500W
|
220VAC SINGLE PHASE 3000W
|
Application:
The Honey Paste Filling Machine is designed for filling bottles and jars with honey, honey paste, jam, syrup, cream and other thick or viscous products.
It can fill volumes from 50 ml to 5000 ml. It can be equipped with a varied number of filling heads to meet different production needs. The machine is perfect for honey processing, food production and viscous product packaging applications.
How the Honey Packaging Line Works?
A complete automated honey filling machine system can include any of the following types of machinery:
The Automatic Honey Filling Machine uses a servo-driven piston system to precisely fill honey into either jars or bottles.
Automatic Capping Machine: Applies and tightens the applicable caps on the container to help ensure that it is sealed.
Automatic Labeler - Used to apply product labels to containers, creating a uniform and professional look.
The machine selection process is based upon what type of container, caps, labels, and how much you wish to produce. You can configure the final system based on your own unique packaging process.
