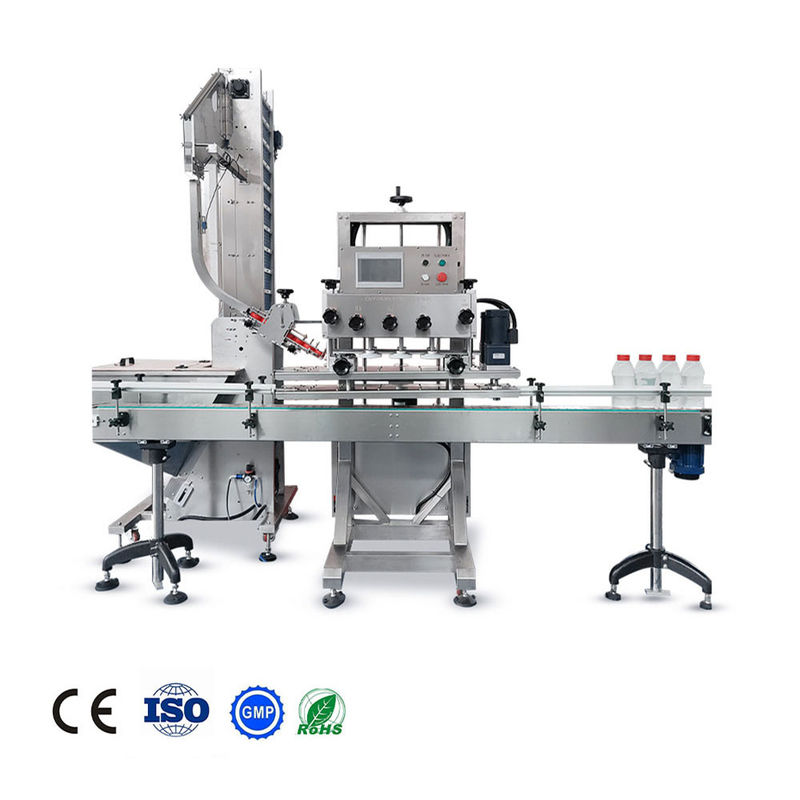

Automatic High Precision Flip Top Cap Screw Capping Machine

Product Detials

Advantage

1.The conveyor belt height of the Automatic Flip Top Cap Closing Machine is fully adjustable, allowing seamless alignment and integration with other equipment in the production line.

2.All exposed parts are either protected with high-grade stainless steel covers or treated with hard chrome plating, providing strong corrosion resistance and extended service life.

3.The system adopts synchronized A/C drives to coordinate the conveyor, star wheel, platform turret, and capping bowl, ensuring stable and precise machine operation.

4.A height-adjustable bottle positioning gauge enables quick setup and easy changeover for different container specifications.

5.Both the height and width of the gripper belts can be flexibly adjusted to suit a wide range of bottle and cap sizes.

6.Spindle wheels are equipped with ergonomic adjustment knobs and lock-nut hand wheels, allowing precise and repeatable fine-tuning.

7.The machine is designed for high flexibility, capable of handling various container types without the need for frequent change parts, significantly reducing downtime.

8.All drive shafts and adjustment support shafts are manufactured from sanitary-grade 304 stainless steel, ensuring durability and hygienic performance.

9.A timing belt transmission system is used to drive the spindle wheels smoothly and efficiently.

10.An integrated bottom screw changeover function within the spindle wheel assembly enhances adaptability for different capping requirements.

11.The cap feed chute is constructed with 1/2-inch aluminum mounting plates and hard-coat anodized supports, ensuring strong structural rigidity.

12.Dual gripper belt assemblies are designed for quick release, making routine cleaning and maintenance faster and more convenient.

FAQ about Automatic Flip Top Cap Closing Machine

Q1: What is an Automatic Flip Sealing Machine?

A1: An Automatic Flip Sealing Machine is a high-efficiency capping system designed to accurately apply and secure flip-top lids, also known as flip caps or sport caps, onto various types of containers such as bottles, tubes, and cans. It is widely used in the food, pharmaceutical, and daily chemical industries.

Q2: How does it work?

A2: Containers are conveyed into the working station via a conveyor system and precisely positioned using a bottle alignment device. The flip cap is then picked up by a capping head or robotic mechanism and applied to the container. Sealing is completed through controlled rotation or downward pressure, followed by optional inspection before the finished product is discharged.

Q3: What types of lids can it handle?

A3: The machine is compatible with multiple flip top lid types, including:

Buckle-type round and square flip caps
Sport bottle caps
CRC (Child-Resistant Caps)
Flip caps with straw openings
Custom tooling can be developed for special cap designs upon request.

Q4: What container materials are compatible?

A4: It is suitable for a wide range of containers, including PET, HDPE, and PP plastic bottles, glass bottles, metal tubes, and aluminum cans. Container dimensions and rigidity must meet the machine’s operational requirements for stable performance.

Q5: How is sealing accuracy ensured?

A5: Sealing precision is maintained through multiple control systems, including torque monitoring for consistent tightening force, servo-driven motion control for accurate positioning, and optional vision inspection systems to verify cap placement and sealing quality.
