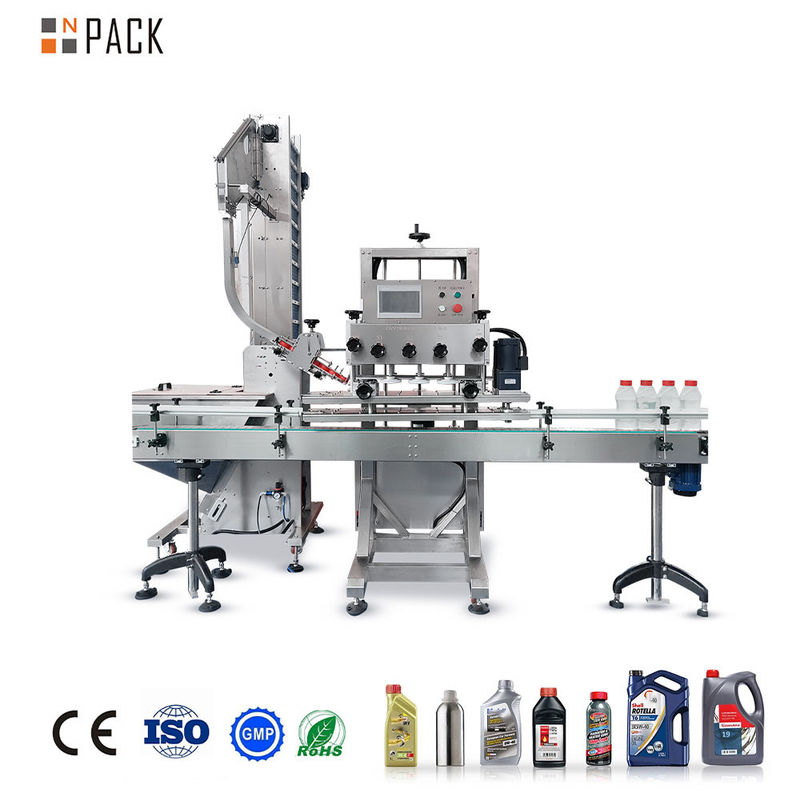

Automatic Inline Cap Sealing Machine
The automatic cap sealing machine is engineered to provide fast, accurate, and reliable sealing for a wide variety of containers, including plastic bottles, glass bottles, jars, and other packaging formats. It is compatible with multiple closure types, such as screw caps, pump caps, trigger sprayers, flip-top caps, sports caps, and specialty closures.
During operation, containers move continuously along the conveyor while caps are automatically positioned and tightened through a precision sealing system. Adjustable sealing heads apply consistent torque to ensure secure closures, preventing leakage while maintaining product quality and package integrity.
For enhanced productivity, the cap sealing machine can be equipped with automatic cap feeding systems, including cap elevators and vibratory bowl feeders, ensuring a continuous cap supply and minimizing production interruptions. The fully automated design reduces manual labor while delivering stable and repeatable sealing performance.
Ideal for food, beverage, cosmetic, pharmaceutical, and chemical industries, the cap sealing machine integrates seamlessly into automated packaging lines, helping manufacturers improve efficiency, reduce operating costs, and achieve consistent sealing quality across every production batch.
Key Features of the Cap Sealing Machine
1.No Bottle, No Cap System
Intelligent sensors ensure caps are only dispensed when a container is detected, reducing cap waste and improving operational efficiency.
2.Durable Stainless Steel Construction
Built with a high-quality stainless steel frame and premium surface finish, offering excellent corrosion resistance, durability, and easy cleaning.
3.Adjustable Conveyor Height
The conveyor system can be easily adjusted to match upstream and downstream equipment, enabling smooth integration into existing packaging lines.
4.High-Capacity Cap Feeding Hopper
The optimized hopper design increases cap storage capacity, minimizing refill frequency and supporting continuous production.
5.Low-Noise, Energy-Efficient Operation
Engineered for stable performance with reduced noise levels and low power consumption, helping create a quieter and more energy-efficient production environment.
6.Quick Bottle Changeover
Equipped with an adjustable bottle height mechanism, allowing fast setup and easy adaptation to different container sizes with minimal downtime.
Parameter
|
1
|
Name/Model
|
NP-LC Automatic linear spindle capping machine
|
|
2
|
Capacity
|
40-150 bottle/minute (actual capacity depends on bottle and caps
|
|
3
|
Cap diameter
|
20-120mm
|
|
4
|
Bottle Height
|
40-460mm
|
|
5
|
Dimension
|
1060*896*1620mm
|
|
5
|
Voltage
|
AC 220V 50/60HZ
|
|
6
|
Power
|
1600W
|
|
7
|
Weight
|
500KG
|
|
8
|
Cap feeding system
|
Elevator Feeder
|
Vibration cap sorter
|
Product Detials
How Does a Cap Sealing Machine Work?
Automatic cap sealing machine automates the process of placing, tightening, and securing caps onto containers, ensuring consistent sealing quality and efficient production. The process typically consists of the following stages:
Step 1: Bottle Infeed
Containers are automatically conveyed to the capping section via a conveyor system. The bottles are accurately guided and spaced to ensure smooth and continuous operation throughout the sealing process.
Step 2: Automatic Cap Feeding
Caps are loaded into a hopper and transferred to the cap feeding system. An integrated cap sorter automatically orients each cap in the correct position. Any incorrectly oriented caps are returned to the hopper for recirculation, ensuring reliable cap placement.
Step 3: Cap Placement and Bottle Stabilization
As bottles enter the capping area, caps are automatically applied to the container openings. Bottle stabilizing belts and holding mechanisms keep both the bottle and cap properly aligned, preventing movement during the sealing process and ensuring accurate cap engagement.
Step 4: Cap Tightening and Sealing
The containers then pass through the sealing station, where multiple spindle wheels apply controlled torque to tighten the caps securely. The capping wheels can be adjusted to accommodate different bottle heights, cap diameters, and closure types, delivering consistent and leak-proof sealing performance.
Step 5: Bottle Discharge
Once the caps are fully tightened, the sealed containers are automatically discharged from the capping station and conveyed to the next stage of production, such as labeling, coding, inspection, or packaging.
By combining automatic cap feeding, precise torque control, and continuous conveyor operation, a cap sealing machine delivers high-speed, reliable, and repeatable sealing performance for a wide range of packaging applications.
FAQ About Automatic Cap Sealing Machine
1.Can Automatic Cap Sealing Machine Be Used for Metal Caps?
Yes. automatic cap sealing machine is suitable for both plastic threaded caps and metal screw caps. The spindle-wheel capping system applies controlled pressure and torque to securely tighten a wide range of closure types while maintaining consistent sealing quality.
For metal cap applications, compatibility depends on factors such as cap material, cap dimensions, and required torque specifications. Selecting the appropriate capping wheel material is also important to prevent scratches, dents, or other surface damage to metal caps during the sealing process.
With proper configuration, a cap sealing machine can provide reliable, efficient, and high-quality sealing for both plastic and metal closures across a variety of packaging applications.
2.Can Cap Sealing Machine Be Integrated into a Complete Packaging Line?
Yes. Automatic sealing machine can be seamlessly integrated with filling machines, bottle unscramblers, labeling machines, inkjet coding systems, and other packaging equipment to create a fully automated packaging line.
Designed with a standardized modular structure, the machine offers excellent compatibility and flexibility for integration into various production environments. Its robust construction and reliable control system support continuous 24/7 operation, ensuring stable performance and consistent sealing quality throughout the production process.
Whether used as a standalone unit or as part of a complete filling and packaging line, the cap sealing machine is an ideal solution for manufacturers seeking higher productivity, reduced labor costs, and efficient automated packaging operations.
