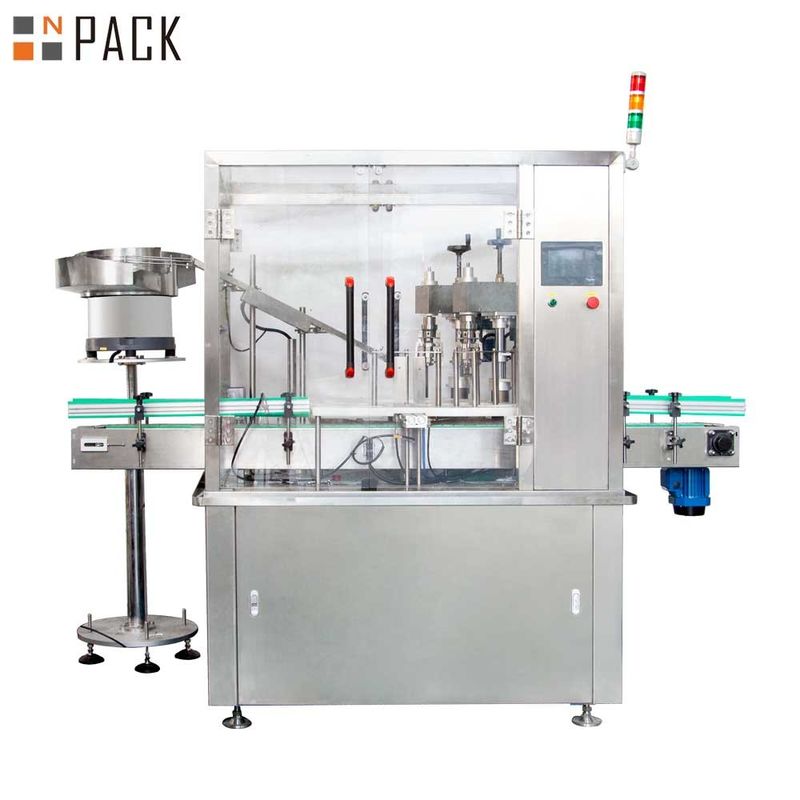

NPACK Automatic Ropp Capping Machine for Aluminum Caps

 Automatic Ropp Capping Machine for Aluminum Caps

The Automatic High-Speed Multi-Head Capping Machine for Aluminum Caps is specifically designed for the efficient and precise sealing of bottles fitted with aluminum caps. Utilizing a continuous rotary motion system, this machine delivers exceptional capping speed, consistency, and reliability, making it ideal for high-volume production environments.

Equipped with an advanced PLC control system and an intuitive touchscreen interface, the machine ensures smooth operation, easy parameter adjustment, and precise control throughout the entire capping process.

The automatic cap feeding and pick-and-place mechanism accurately positions each aluminum cap onto the bottle, while the high-precision planetary capping heads securely form and tighten the cap, ensuring a tamper-evident, leak-proof seal and a professional finished appearance.

This CE-certified aluminum cap capping machine can be customized with different numbers of capping heads to match specific production capacities and packaging requirements. Widely used in the beverage, edible oil, cosmetics, and chemical industries, it provides a dependable solution for manufacturers seeking high-speed, accurate, and fully automated aluminum cap sealing.

Main Features:

1. Specifically designed to meet a wide range of production speed requirements, this aluminum cap capping machine can be seamlessly integrated into existing or newly built automated packaging lines.

2. The machine incorporates three core functions: automatic cap feeding and sorting, automatic cap placement, and precision cap sealing, ensuring efficient and continuous operation.

3.Available with multiple capping head configurations, the system can be customized to match different production capacities and application requirements.

4.Equipped with an advanced PLC control system and an intuitive human-machine interface (HMI), the machine provides easy operation, quick parameter adjustments, reduced maintenance requirements, and highly reliable performance.

5. A full-color touchscreen control panel comes standard, allowing operators to conveniently monitor machine status and adjust production settings.

6. Constructed from high-quality SS304 stainless steel, the machine offers excellent durability, corrosion resistance, and compliance with stringent sanitary standards.

7. All product-contact parts are manufactured in accordance with GMP requirements, ensuring maximum product safety, hygienic processing, and consistent sealing quality.

8.The robust mechanical design ensures precise aluminum cap application, secure sealing performance, and long-term operational stability in demanding production environments.

9.CE-compliant construction and safety features provide reliable operation while meeting international quality and safety standards.

10.Suitable for a variety of industries, including beverages, edible oils, pharmaceuticals, cosmetics, chemicals, and other products packaged with aluminum caps.
​

Parameter

Application

ROPP (Roll-on Pilfer-Proof) caps are widely used across industries such as beverages, spirits, pharmaceuticals, edible oils, food products, lubricants, and agrochemicals due to their secure sealing performance and tamper-evident design.

One of the key advantages of ROPP capping systems is their versatility. The capping head can be quickly adjusted to accommodate bottles of various shapes and sizes. Equipped with threading and sealing rollers, it can effectively process caps with different diameters and heights, including standard, deep-drawn, and extra deep-drawn designs. This flexibility ensures reliable, consistent sealing for a wide range of packaging applications.

Product Details

How the Automatic Aluminum Cap Capping Machine Works?

The automatic aluminum cap capping machine operates through a fully automated and synchronized process designed to deliver high-speed production, precise cap application, and consistent sealing quality.

1. Bottle Feeding

Containers are automatically fed into the machine and accurately spaced using a bottle indexing system or screw feeder. The bottles are then transported by conveyor to the capping station.

2. Automatic Cap Feeding and Placement

Aluminum caps are automatically sorted and oriented through a cap feeding system, such as a vibratory bowl feeder. Each cap is then precisely positioned onto the bottle neck, ensuring accurate alignment before sealing.

3. Capping Head Engagement

As the bottle enters the capping zone, the capping head descends and securely holds the aluminum cap in place while applying controlled pressure to ensure proper positioning.

4. Aluminum Cap Forming and Sealing

Specialized capping rollers rotate around the aluminum cap, gradually forming the cap skirt to match the bottle neck threads. This process creates a tamper-evident, leak-proof seal while maintaining a professional package appearance.

5. Bottle Discharge

Once the sealing process is completed, the capped bottles are automatically transferred by conveyor to the next stage of production, such as labeling, coding, inspection, or packaging.

The entire process is controlled by an advanced PLC system and performed automatically without manual intervention. This ensures high production efficiency, excellent sealing accuracy, and consistent capping results across every production batch, making the machine ideal for beverage, pharmaceutical, edible oil, cosmetics, and chemical packaging applications.

FAQ About Ropp Capping Machine

Q: Can a ROPP Capping Machine handle different bottle and cap sizes?

A: Yes. Most modern ROPP capping machines are designed with adjustable settings and changeover components, allowing them to accommodate a wide range of bottle shapes, bottle sizes, and cap dimensions. With simple adjustments or replacement parts, the machine can quickly switch between different packaging formats while maintaining accurate and consistent sealing performance.
