Automatic Glass Bottle Aluminum Cap Sealing Machine Olive Oil Bottle Ropp Capping Machine

Automatic Olive Oil Bottle Ropp Capping Machine

The ROPP (Roll-On Pilfer-Proof) capping system is specifically engineered to deliver a secure, tamper-evident seal for bottles, ensuring product integrity throughout storage, transportation, and retail distribution. This type of closure is widely used across industries such as food & beverage, pharmaceuticals, cosmetics, and chemicals—especially for premium products like olive oil, where sealing quality directly impacts brand trust and shelf stability.

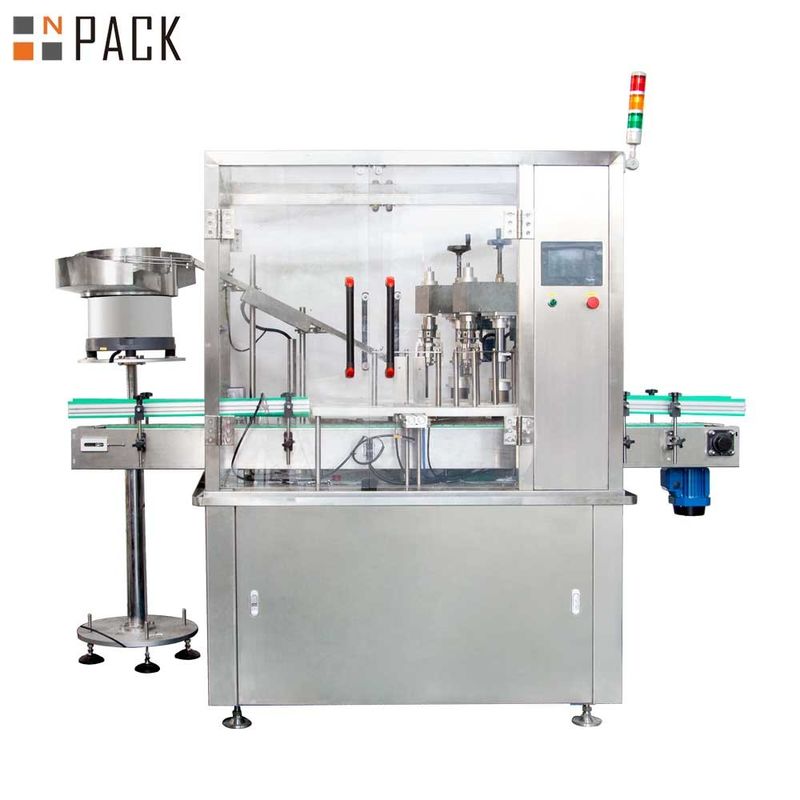

A typical ROPP olive bottle capping machine consists of three core modules: a bottle conveying system for continuous infeed and outfeed handling, an automatic cap feeding and sorting unit, and the central capping head assembly. The capping heads are equipped with precision rollers that apply controlled pressure and rotational force to form the aluminum cap tightly onto the bottle neck. This roll-on process ensures a consistent, leak-proof, and tamper-resistant seal without damaging the container or closure.

Designed for modern automated production lines, ROPP capping machines offer high-speed, continuous operation with excellent stability and repeatability. They can be seamlessly integrated with upstream and downstream equipment such as olive oil filling machines, labeling systems, and induction sealing units, forming a fully automated packaging line that improves efficiency, reduces labor costs, and ensures consistent packaging quality.

Main Features

1.Built to match defined production speed requirements, the machine integrates efficiently into fully automated production lines for stable, continuous operation.

2.The system consists of three key sections: automatic cap handling and sorting, precise cap delivery, and automated capping application.

3.The capping station can be customized with different numbers of capping heads to meet various production capacities and line speeds.

4.Equipped with an advanced PLC control system and intuitive interface, the machine ensures reliable operation, straightforward maintenance, and consistent performance. All parameters can be easily set and adjusted within the permitted range.

5.A standard PLC control system with a color touchscreen HMI is included, providing clear visualization and convenient operational control.

6.The frame and main structure are made of SS304 stainless steel, offering excellent durability, corrosion resistance, and hygienic performance.

7.All product-contact parts are designed in full compliance with GMP requirements, ensuring safe, clean, and high-quality production standards.

Parameter

Working Principle of Olive Bottle Capping Machine (ROPP System)

The working principle of this olive bottle capping machine is based on the ROPP (Roll-On Pilfer-Proof) sealing process, designed to create a secure, tamper-evident closure for premium products such as olive oil.

During operation, downward pressure is applied while the forming rollers rotate around the cap at high speed. These rollers precisely press and mold the aluminum cap skirt onto the bottle neck, allowing it to conform perfectly to the thread profile of the container. As a result, the cap is permanently shaped into a tight, customized fit that matches the bottle neck geometry.

This process produces an exceptionally strong and leak-proof seal. Once properly applied, the closure cannot be opened without visible damage or destructive force, ensuring clear tamper evidence and maintaining product integrity throughout storage, transportation, and retail handling.

Product Details

FAQ About Olive Oil Ropp Capping Machine

1.What Is the Difference Between a ROPP Capping Machine and a Standard Screw Capping Machine?

ROPP (Roll-On Pilfer-Proof) capping machine operates on a roll-forming principle. In this process, the aluminum cap is initially smooth and does not contain pre-formed threads. During capping, the machine uses precision rollers to mold and form the threads directly onto the bottle neck, creating a tight, tamper-evident seal.

In contrast, a standard screw capping machine is designed for pre-threaded closures, such as plastic screw caps. It works by applying controlled torque to tighten an already threaded cap onto a matching bottle neck, without any forming process.

Due to these fundamental differences in working principle, cap type compatibility, and mechanical structure, ROPP capping machines and screw capping machines are not interchangeable and must be selected according to the specific packaging requirements.

2.Can the ROPP Capping Machine Be Integrated into an Automatic Packaging Line?

 Yes. The ROPP capping machine is designed for seamless integration into a fully automated liquid packaging line. It can be connected upstream with a filling machine and downstream with equipment such as a collection turntable or labeling machine.

This configuration enables a continuous, fully automated workflow covering filling, capping, and post-processing operations. As a result, it significantly improves production efficiency, reduces manual labor, and ensures consistent packaging quality across the entire production line.
