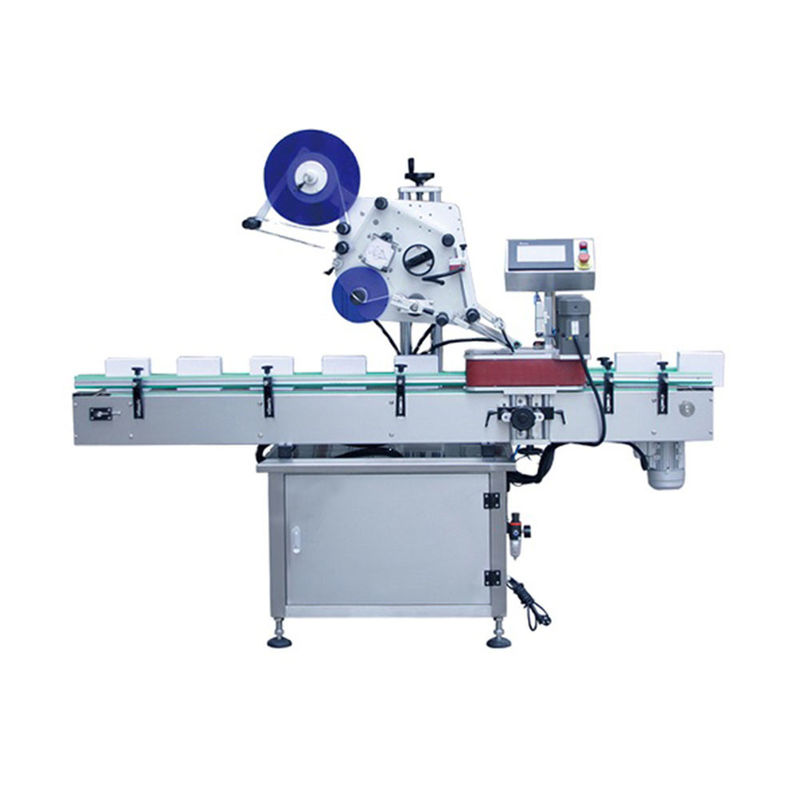

Full Automatic High Speed Carton Self-adhesive Labeling Machine

Automatic Carton Self-adhesive Labeling Machine

The fully automatic carton self-adhesive labeling machine is part of the new generation of equipment. It is specially designed and manufactured according to the process and technical requirements of automatic labeling machines. It ensures that the self-adhesive labels applied to the carton surface are smooth and aesthetically pleasing. The labeling process is stable and reliable, with the label position fully meeting the desired specifications.

This machine is an electromechanical integration product with a simple and well-organized structure. It automatically applies self-adhesive labels to cartons. In case of missing boxes, the machine's control system ensures that no labels are dispensed, effectively preventing label waste. Additionally, the production capacity can be continuously adjusted according to the specifications and characteristics of the cartons and labels. This labeling machine is highly adaptable to various bottles and boxes in industries such as food, pharmaceuticals, and cosmetics, and it can apply labels to bottles and boxes of different sizes and materials with satisfying results.

Equipment Advantages:

1. Easy adjustment with seats for direction and tilt angle adjustments, ensuring no dead angles when switching bottle shapes, meeting GMP standards.

2. Automatic bottle sorting eliminates misalignment, improving stability.

3. Includes automatic shutdown, production counting, energy-saving mode, and parameter protection functions for easier management.

4. Color touch screen with a bilingual interface, data memory for 50 sets of parameters, and one-click product switching, simplifying operations.

5. High stability with imported sensors, ensuring accurate detection and long-lasting durability.

6. Safe and hygienic, made of rust-resistant SUS304 stainless steel and T6 aluminum alloy, meeting GMP standards.

List of Components

Product Details

Carton Labeling Machine Workflow

Workflow: Manually place the products (on a conveyor line or bottle sorting turntable) → Products are automatically separated, corrected, and conveyed → Product detection → Labeling → Collect labeled products (for the next process) → Remove products.

Working Principle: After the bottles enter the labeling machine conveyor, they are fed into the labeling machine at a constant speed. The fixed device on the machine separates the items to be labeled by a fixed distance and pushes them along the conveyor. The mechanical system (drive wheels, labeling wheels, and spool) intermittently moves the label tape, pulling labels from the spool and applying them to the items through the labeling device.

Optional Functions and Components:

1. Coding Machine: Hot coding machine prints production date, expiration date, batch number, etc. Coding and labeling are synchronized to improve production efficiency.

2. Inkjet Printer: Compatible with mainstream inkjet printers on the market, it can print codes at specified positions on the label, perfectly integrating with the labeling machine.

3. Sensors: Ordinary sensors cannot detect transparent labels; the German-imported Leuze special photoelectric sensor must be used for compatibility.

4. Reader: Reads QR codes, barcodes, and other information, facilitating the establishment of a product database for traceability
