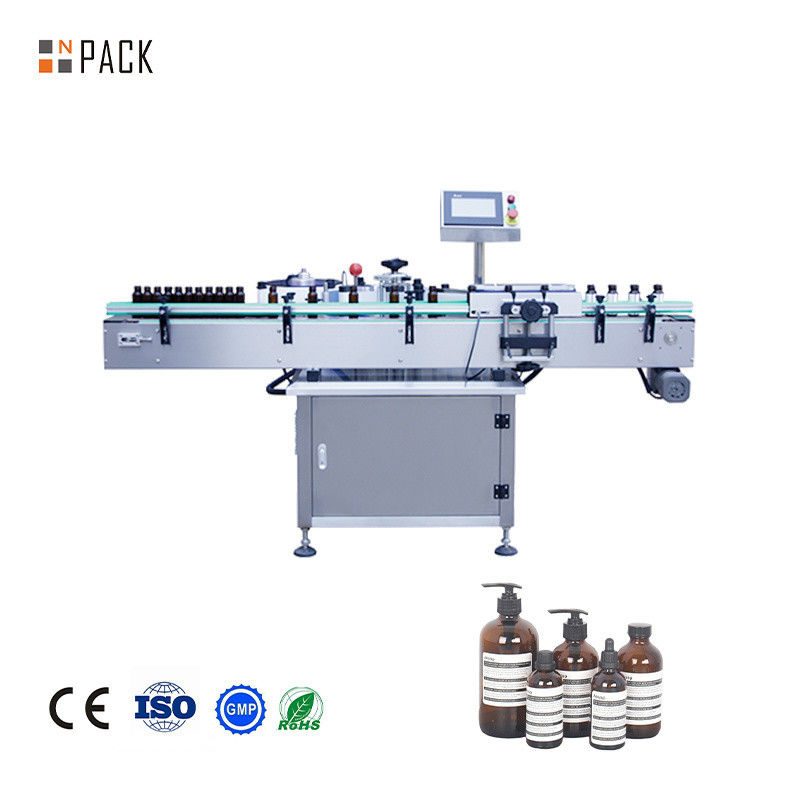

Round Bottle Vertical Self-adhesive Labeling Machine
The automatic vertical round bottle self-adhesive labeling machine is designed to optimize production efficiency. It automates the labeling process, ensuring simple operation, fast production speed, and uniform, attractive, and neat labeling. This machine is ideal for labeling circular containers in the pharmaceutical, chemical, food, and other industries, supporting both full-circle and semi-circular labeling. Optional features include a color matching tape printer and an inkjet printer, allowing simultaneous printing of batch numbers, production dates, and other information during the labeling process. This integration of labeling and coding reduces packaging steps and enhances production efficiency.
Main Feature
1. Imported electrical components ensure stable performance and a low failure rate.
2. Utilizing photoelectric detection, PLC control, and software operation, the conveyor belt ensures precise and accurate labeling.
3. The machine can operate independently or integrate with the production line.
4. It features automatic alarms for missing labels and stops labeling if no bottle is detected.
5. The entire machine is constructed from S304 stainless steel and anodized high-grade aluminum alloy.
| Model / technical parameters |
NP-RL |
| Labeling speed (pcs/min) |
40-150
(relate to the material and label size) |
| Labeling accuracy(mm) |
±1.0mm
(material and label sizes are not counted in) |
| Label size(mm) |
(L)20-280mm (H)30-144mm |
| Material Size (mm) |
Φ20-φ100mm (H)40-200mm |
| Roll inside(mm) |
φ76mm |
| Roll outer diameter(mm) |
Max:Φ350mm |
| Machine size (mm) |
(L)2000*(W)850*(H)1450(mm) |
| Power supply |
AC220V 50Hz/60Hz 1500W |
Product Details
Product Application
Working Principle:
The sensor detects the passing product and sends a signal to the labeling control system. At the appropriate position, the system triggers the label to be dispensed and attached to the product. As the product moves through the labeling applicator, the label adheres to the product, completing the labeling process.
