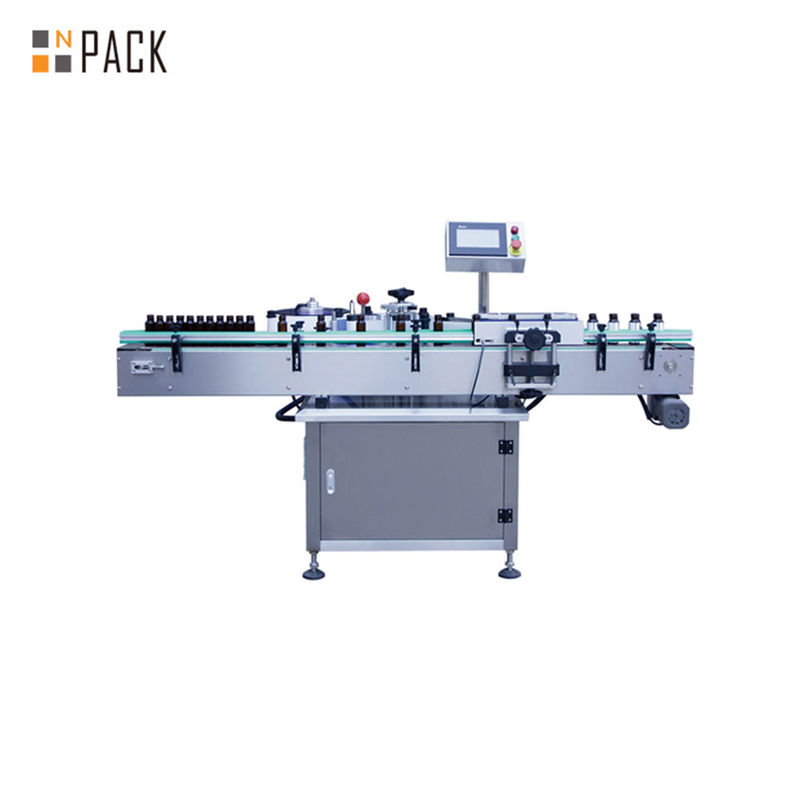

Automatic E Liquid Self-adhesive Labeling Machine
The e liquid labeling machine, is specifically designed for precise and efficient labeling of small round bottles commonly used in the e-liquid, essential oil, and vape juice industries. It supports both full and partial wrap-around labeling and operates at speeds of up to 150 bottles per minute, depending on bottle and label size.
Equipped with an advanced PLC control system and a user-friendly touch screen interface, this machine ensures accurate label placement, easy operation, and minimal downtime. The system is ideal for labeling 10ml to 60ml PET or glass bottles with child-resistant caps or dropper tops.
Widely used in the e-liquid, cosmetics, pharmaceutical, and personal care sectors, the e liquid labeling machine is suitable for labeling products like vape liquids, eye drops, essential oils, lip balm, hand sanitizers, and more.
Key Advantages:
-
Flexible Adjustment: Multi-directional adjustments (up/down, left/right, tilt) for fast bottle changeover—GMP compliant.
-
Automatic Bottle Separation: Reduces misalignment due to bottle variation, ensuring smooth and stable operation.
-
Smart Features: Auto stop, production counter, energy-saving standby mode, production target reminder, and password-protected parameter settings for better management.
-
User-Friendly Interface: Color touchscreen with Chinese/English options, memory for up to 50 product settings, one-touch switching, and real-time fault alerts.
-
High Stability: Uses premium imported sensors for accurate label and product detection. Modular stainless steel and aluminum structure supports 24/7 operation.
-
Hygienic Design: Made of SUS304 stainless steel and T6 aluminum—rust-proof and GMP standard compliant.
| Model / technical parameters |
NP-RL |
| Labeling speed (pcs/min) |
40-150(relate to material and label size) |
| Labeling accuracy(mm) |
±1.0mm
(material and label sizes are not counted in) |
| Label size(mm) |
(L)20-280mm (H)30-144mm |
| Material size (mm) |
Φ20-φ100mm (H)40-200mm |
| Roll inside(mm) |
φ76mm |
| Roll outer diameter(mm) |
Max:Φ350mm |
| Machine size (mm) |
(L)2000*(W)850*(H)1450(mm) |
| Power supply |
AC220V 50Hz/60Hz 1500W |
Product Details
Optional Add-ons:
-
Date Coder: Prints batch number, expiry, and production date in sync with labeling.
-
Inkjet Printer: Compatible with major brands for label printing.
-
Transparent Label Sensor: German Leuze sensor required for clear labels.
-
Code Reader: Scans QR codes/barcodes for product tracking.
FAQ
1. Labeling Machine Fails to Start
Possible Causes:
Solutions:
2. Touch Screen Unresponsive or Displays Abnormally
Possible Causes:
Solutions:
3. Label Misalignment
Possible Causes:
Solutions:
-
Calibrate the photoelectric sensor
-
Verify and adjust label size parameters
-
Check and tighten conveyor belt tension
4. Label Wrinkling or Falling Off
Possible Causes:
Solutions:
