Home > products >
Piston Filling Machine
>
Automatic High Speed Quantitative Small Juice Fillig Machine For Bottle

Automatic High Speed Quantitative Small Juice Fillig Machine For Bottle

Product Details:
Place of Origin: China
Brand Name: N PACK
Certification: CE
Model Number: NP-VF
Detail Information
Place of Origin:
China
Brand Name:
N PACK
Certification:
CE
Model Number:
NP-VF
Color:
Silver
Application:
Liquid, Paste, Cream, Sauce
Filling Nozzle:
2 – 16 Head
Port:
Shanghai Port
Weight:
700kg
Advantage:
Stable Performance
Controller:
PLC+touchscreen
Condition:
New
Capping Machine:
Liquid Filling Production Line
Bottle Type:
PET Plastic Bottle
Filling Precision:
1%
Processing Types:
Liquid Filling Machinery
Trading Information
Minimum Order Quantity:
1
Price:
9000USD/set to 50000USD/set
Packaging Details:
Wooden box
Delivery Time:
40 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100SETS
Product Description

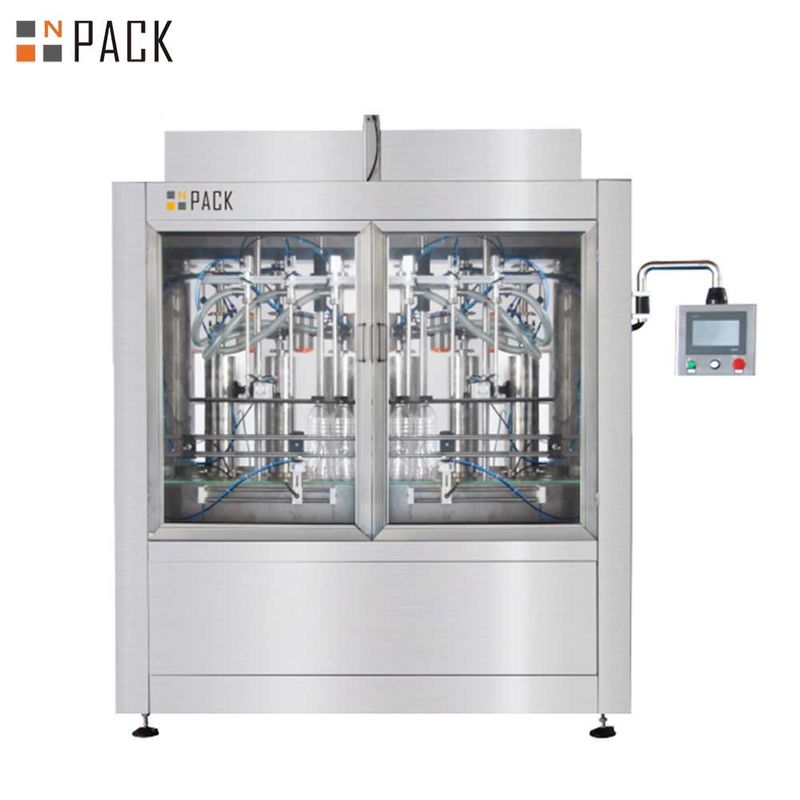

Automatic Small Juice Fillig Machine

Our small juice filling machine features piston filling technology, designed to handle a variety of viscosities in sauces and liquid products. These machines use a cylinder to push the piston, incorporating high-quality pneumatic components for accurate and consistent filling.



They are ideal for filling thicker materials such as various sauces (including tomato sauce, salsa, and fruit jam), as well as high-concentration beverages with pulp or granules, and even pure liquids, including juices.



Tailored to meet the evolving demands of the juice industries, our liquid filling machines are designed to support smooth or chunky small-scale juice bottling. Whether for low- or high-viscosity products, these machines can efficiently handle diverse liquid food items.



For seamless operation, our small juice filling machine can be easily integrated with other machinery to enhance production efficiency in your facility.



Main Feature

  1. The machine offers customizable capacity hoppers, the option to add heating and stirring equipment, and a liquid level controller for precise and easily adjustable filling.

  2. All parts that come into contact with the material are made from stainless steel, ensuring easy disassembly and cleaning, while meeting food hygiene standards.

  3. Both the filling volume and speed can be easily adjusted, with an automatic no-fill function when no bottle is detected.

  4. Automatic liquid level control guarantees consistent feeding while maintaining an aesthetically pleasing design.

  5. The machine allows for quick adjustments and bottle changes for different shapes and sizes, without requiring part replacements.

  6. The filling nozzle is equipped with an anti-drip device to prevent spillage during the filling process.

Note:

During operation, the salsa bottling equipment's performance is influenced by the following factors:

  1. Filling accuracy is impacted by the stability of compressed air, material consistency, and filling speed.

  2. Filling speed is influenced by material viscosity, cylinder stroke, filling nozzle size, and conveyor speed.





Product details

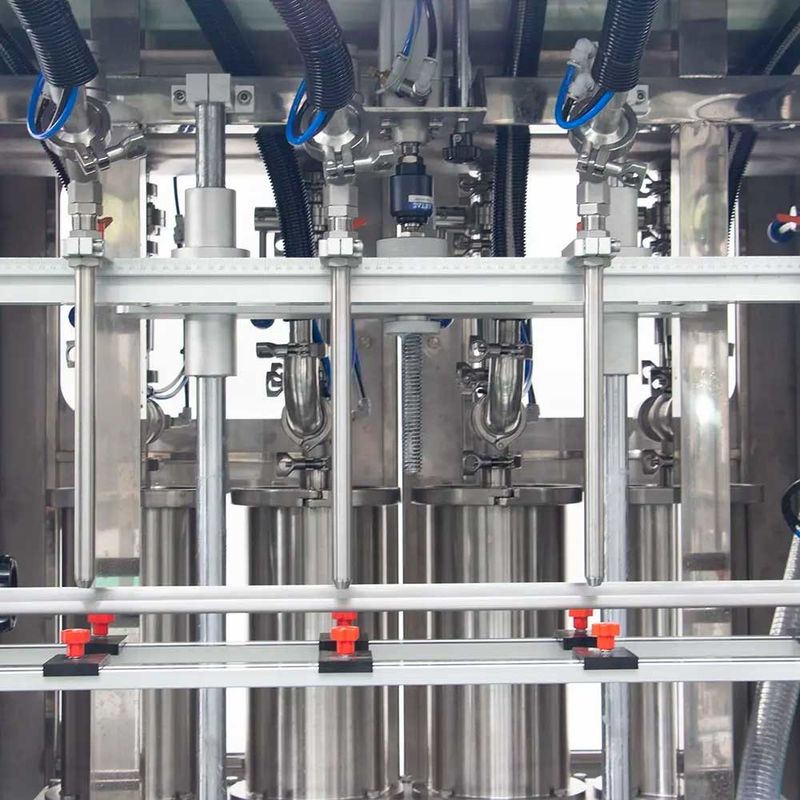

Automatic High Speed Quantitative Small Juice Fillig Machine For Bottle 0Automatic High Speed Quantitative Small Juice Fillig Machine For Bottle 1 Automatic High Speed Quantitative Small Juice Fillig Machine For Bottle 2Automatic High Speed Quantitative Small Juice Fillig Machine For Bottle 3



Advantages:

1.Advanced Servo Drive System:
The NP-VF series incorporates a state-of-the-art servo drive system, ensuring optimal stability and precise positioning of the main filling mechanism. This contributes to long-term energy savings and minimizes the overall machine load.

2.Effortless Tool-Free Adjustments:
With the easy-to-use PLC interface, adjustments can be made quickly and without the need for tools, streamlining the process for more efficient results. The system’s versatile servo control allows for flexibility in handling various liquid filling applications.

3.Exceptional Accuracy:
Thanks to the advanced servo technology, the filling quantity is controlled with precise piston strokes, ensuring outstanding accuracy. The intelligently designed piston and adjustment mechanism allow for unmatched precision in each fill.

4.Wide-Ranging Applicability:
The Automatic Servo Filling Machine is suitable for numerous industries, including food, pharmaceuticals, chemicals, cosmetics, and more. Its flexibility makes it a valuable asset across a broad spectrum of liquid filling needs.



Parameter

Model
NP-VF-2
NP-VF-4
NP-VF-6
NP-VF-8
NP-VF-10
NP-VF-12
NP-VF-16
Heads
2
4
6
8
10
12
16
Range
100-500ML,100-1000ML,1000-5000ML
Capacity
base on 500ml
12-14 bpm
24-28 bpm
36-42 bpm
48-56 bpm
60-70 bpm
70-80 bpm
80-100 bpm
Air Pressure(mpa)
0.6
Accuracy(%)
±0.1-0.3
Power
220VAC SINGLE PHASE 1500W
220VAC SINGLE PHASE 3000W





Implementing a Comprehensive Juice Filling Machine System

After the liquid filling process is completed, you can incorporate capping machines to apply secure, liquid-tight, and airtight caps, preserving the quality of your salsa by preventing contamination and leakage. Labeling machines can also be used to apply custom labels, highlighting your brand and providing important nutritional details. To ensure continuous efficiency, a conveyor system can effortlessly move product containers throughout the production line. By integrating our advanced equipment into a customized liquid packaging system, you can enhance the longevity of your production line and maximize profitability.
