Automatic High Speed 7g 10g 15g Honey Spoon Filling Machine with PLC Control

Product Description

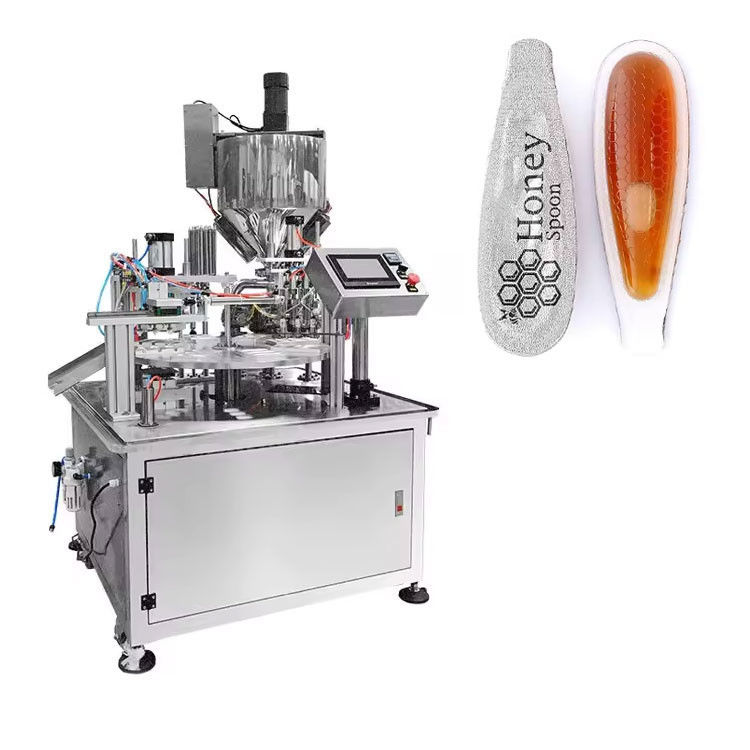

Automatic 7g 10g 15g Honey Spoon Filling Machine

The automatic honey spoon filling machine is designed for the production of various containers, including boxes and cups. It features automatic filling and sealing capabilities, with a filling range of 10-50 grams. The entire machine is equipped with an intelligent digital display temperature control system, offering excellent sealing performance and a low failure rate. This machine is widely used in industries such as beverages and food.

Honey Spoon Filling Machine Features:

1. Equipped with a user-friendly touch screen interface for easy parameter settings, supporting multiple languages.
2. Adjustable filling volume and speed, ensuring high precision in the filling process.
3. Reliable operation through an intelligent PLC control system.
4. Independent PID temperature control, ideal for various sealing film materials.
5. Multiple automatic alarm functions, including no-fill alerts when material is absent, minimizing material waste.
6. Innovative turntable design with a compact footprint, making detection and maintenance more convenient.

Parameters

Application of Honey Spoon Filling Machine

This specialized machine is custom-built for efficiently filling honey spoons. In addition to the filling process, we offer design services for both the spoon and its outer packaging. The spoon mold can be tailored to meet specific requirements, ensuring a perfect fit for your product needs.

Honey Spoon Machine Working Process

-Spoon Feeding
a. Manual Spoon Feeding: Spoons are manually fed into the machine.
b. Automatic Spoon Feeding: An additional spoon feeder is integrated, where spoons are manually loaded into the feeder and then automatically fed into the machine.

- Filling Part:
The honey is filled using a piston pump, equipped with an anti-leak device to prevent spillage on the spoon edge, ensuring a proper seal. The hopper includes a temperature-preserving feature to maintain consistent honey fluidity.

- Sealing Film Feeding System:
The sealing film is automatically sucked, flipped, and placed onto the spoon.

- Sealing Part:
The sealing component is made of copper, known for its excellent thermal conductivity, ensuring a high-quality seal. The sealing temperature can be adjusted from 0 to 400°C.

- Spoon Discharging System:
The finished spoons are discharged using a suction cup system.

After-Sales Service

1. Installation:
Our expert technicians are available to travel and install your filling machine, ensuring a smooth setup. The service fee includes installation, travel, meals, and any related expenses.

2. Training:
To maximize the efficiency of your filling machine, we offer comprehensive training sessions, either on-site or at our facility, for dealers, machine operators, engineers, and technicians.

3. Warranty:
We offer prompt repair services with a one-year quality assurance period. Our service includes parts supply and rapid troubleshooting support to keep your machine running smoothly.

4. Consultation:
Take advantage of our free consultation services. Our knowledgeable sales team will help you find the best solution, complete with CAD drawings for your labeling machine.

5. Technical Support:
We provide 24/7, long-term technical support. Whether by email or phone, our team is ready to offer swift assistance, allowing you to focus on your business without worries.

6. Spare Parts:
We include a set of essential spare parts for the filling machine at no extra cost during shipment. Additionally, you can order a wide range of high-quality parts whenever needed.

If you have any questions, please contact us immediately
