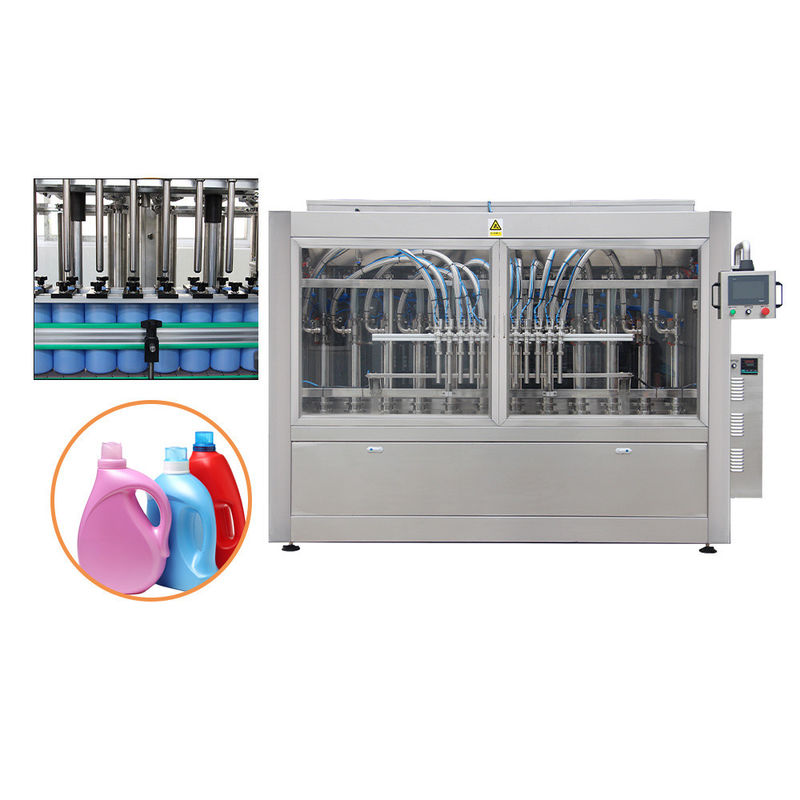

Automatic Liquid detergent Filling Machine
The liquid detergent filling machine, designed for volumes ranging from 1ml to 5L, utilizes piston pumps and servo motor control to ensure precise filling. This waterproof machine is ideal for filling liquid detergents and is compliant with GMP standards, making it suitable for plastic and PET bottles. The servo control mechanism ensures that the piston always reaches the same position, providing a high degree of accuracy. The variable speed filling allows for faster processing and includes a provision for slow speed filling when approaching the target volume. The user-friendly interface allows for easy adjustment of all parameters and fine-tuning of dosages. The filling volume can be precisely adjusted on the touch screen. The bottles are automatically conveyed, filled, and discharged. Additionally, it features a diving filling system that prevents foaming and overfilling during the filling process.
MAIN FEATURE
1. High precision filling is achieved through PLC control, with adjustable settings for volume, filling speed, and more. Separate ball screws connect guide pillars and lifting beams.
2.Filling heads can be finely adjusted for precise filling.
3. Sensorsalert to high or low levels and automatically stop filling before overflowing. Imported components from trusted brands ensure reliability and long service life.
4. Automatic bottle feeding and counting.
5. Easy to clean and disassemble.A single row of cylinders reduces pollution or leakage during cleaning.
6. The three-way valve for filling prevents any leakage and extends service life.
7. Reduced foaming.The liquid holder prevents bottles from being filled when the filling nozzle is off.
8. PTFE sealing parts improve abrasion resistance, and the stainless steel 304 structure prevents corrosion. A glass door prevents pollution.
9. The filling machine automatically stops if bottles are jammed or fall.
Product Parameters
|
|
|
|
|
|
|
|
NP-VF-16
|
|
|
|
|
|
|
|
|
16
|
|
|
100-500,100-1000,1000-5000
|
Capacity(bpm)base on 500ml
|
12-14
|
24-28
|
36-42
|
48-56
|
60-70
|
70-80
|
80-100
|
|
|
|
|
|
|
|
|
220VAC SINGLE PHASE 1500W
|
220VAC SINGLE PHASE 3000W
|
Long Diving Filling Head
1.Filling nozzles are diving design and anti drops
2.With Drop tray
3.High Filling Accuracy
4.Diving Nozzles are optional for foamy Liquid
5.304SS contruction
6.High quality O rings and seals inside of the nozzles
No Dead Corner Top Tank.
1.The top tank is with round or semi round design no dead corner, more easy cleaning
2.Double jacket hopper optional
3.Mixing system optional
4.CIP system optional
5.304SS constuction material, 316SS for option seals inside of the nozzles
Automatic Piston Take Off System
1.Easy cleaning
2.No need tools to clean the pistons which gurantee the food grade,save time and labor.
3.CIP system is for option
ESG Valve
1.Easy disassembly three way connectors
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably
4.Sutiable for thin to viscous liquid
High Quality Hose
Adapt 304/316 stainless steel
hose characteristics:
1. High strength, good seismic resistance, strong external impact resistance.
2,.strong corrosion resistance, high temperature resistance, high pressure, large flow, wide range of use
3. Low coefficient of thermal expansion, strong resistance to high temperature, slow thermal expansion and cold contraction, not easy to leak;
Company Profile
As a specialized manufacturer, NPACK has refined the design and functionality of its filling machines to set industry standards. Engineered to meet the diverse needs of the sauce processing and packaging sector, our machinery ensures robust performance and adaptability.
Committed to maintaining a leadership position in filling technology, NPACK continually invests in research and development, ensuring that our equipment remains at the forefront of technological advancements. Our team is dedicated to delivering exceptional service and support, fostering a productive partnership throughout your engagement with us. NPACK's global presence enables us to assist processors and manufacturers worldwide in enhancing their production capabilities, ensuring they remain competitive and efficient in their operations.
After-sale Service
1. Installation:
Our team of skilled technicians is ready to travel and install the filling machine. The service fee covers installation, travel, meal expenses, and other related costs.
2. Training:
To ensure optimal performance of the filling machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.
3. Guarantee:
When repairing the filling machine, we provide efficient service, a one-year quality assurance period, parts supply, and swift feedback for troubleshooting.
4. Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the filling machine.
5. Technical Support:
Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide quick feedback, ensuring you can be carefree.
6. Spare Parts:
During transportation, we include a set of vulnerable spare parts for the filling machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time
