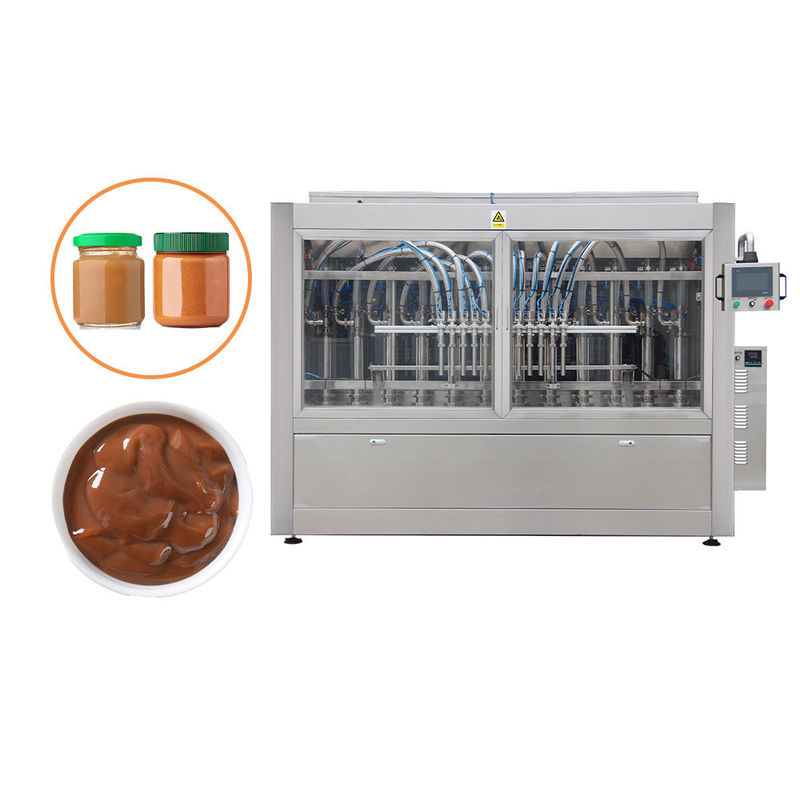

Shanghai Npack 50-1000ml 1000ml-5000ml Plastic Peanut Butter Heating Filling Machine

NPACK automatic chili sauce filling machine plays a key role in the market. It integrates light, machine, electricity, and gas, and adopts piston-type quantitative principle, with high filling accuracy, simple operation, and convenient maintenance. The main material of the equipment is SS304 stainless steel, which meets the sanitary requirements. The acrylic transparent plate is used in the filling process to isolate from the outside world, Ensure the sanitary requirements of filling. The pressure type filling is adopted for filling, without the need to install a high-level tank, which simplifies the installation process and improves the filling efficiency. It can be widely used in automatic packaging production of the food and sauce industry.

This series of filling machines adopts the principle of piston-cylinder drive, which is suitable for filling more viscous sauces such as chili sauce, Douban sauce, chili sauce, mushroom sauce, and so on. The filling rotary valve can be customized to meet the filing requirements of different customers. It is equipped with a horizontal mixing hopper to ensure the uniformity of materials and no separation of oil and sauce in the filling process. The design of the equipment greatly shortens the filling distance from the hopper to the filling head and overcomes the shortcomings of large filling errors in the filling process of the materials with large oil content, such as more oil in some bottles and more jam in some bottles.

High-Pressure Endure SS Hose and Sanitization Filling Head

1. Food-grade 304ss hose

2. Shut off filling heads

3. With a drop collection tray

4. High filling accuracy

5. Diving Nozzles are optional for bubble sauce, like honey

6. 304SS Food construction, no dead corner

7. High quality and food grad O rings and seals inside of the nozzles

Three-way valve

1. Easy disassembly of three-way connectors, No dead corner

2. Long-life valve and high performance

3. This valve guarantees the shut-off accuracy and more stability, and no dead corner

4. Suitable for thin to viscous liquid and Sauce

Automatic Piston Take Off

1. Easy cleaning

2. No need for tools to clean the pistons which guarantees the food grade and saves time and labor.





No Dead Corner Top Tank.

1. The top tank is with a round or semi-round design with no dead corners, more easy Cleaning
2. Double jacket hopper optional
3. Mixing system optional
4. 304SS construction material, 316SS for option
5. Mixing and heating function for potion
