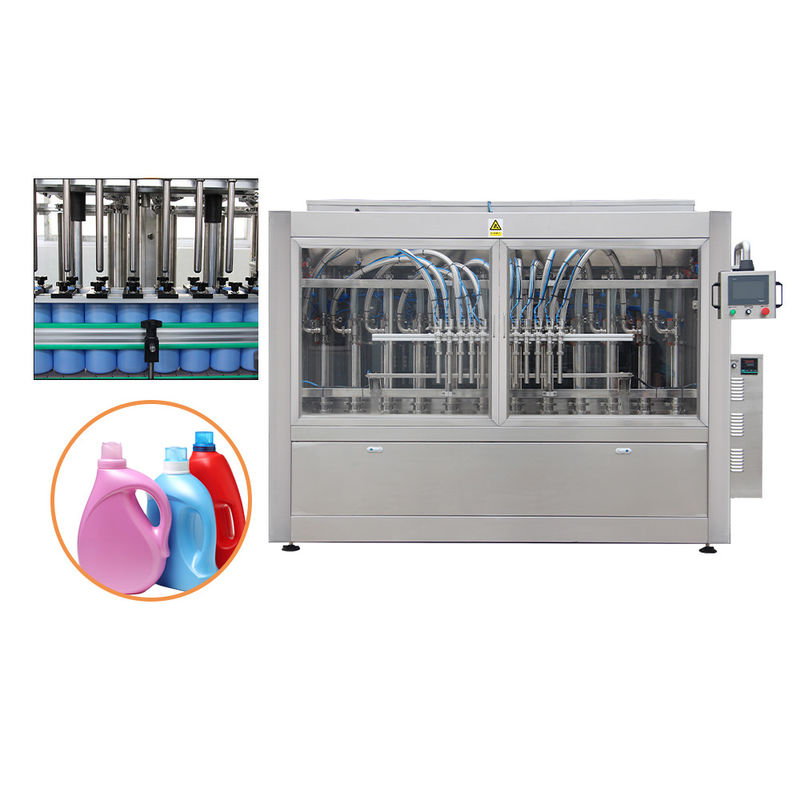

Automatic Linear 4000bph Laundry Detergent Filling Machine For Bucket

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-VF

Detail Information

Touch Material: SUS304 / SUS316L Model No: NP-VF Filling Machine
Capping Function: Optional Packing Material: Wooden Case Packing
Trademark: N PACK Filling Error: <0.1%
Condition: New Machinery Test Report: Provided
Filling Nozzle: Diving Nozzle Port: Shanghai
Warranty: One Year Automatic Grade: Automatic
Highlight:

Bucket Laundry Detergent Filling Machine

,

4000bph Laundry Detergent Filling Machine

,

Automatic Laundry Detergent Filling Machine

Product Description

The automatic laundry detergent filling machine is designed for precise quantitative filling of detergents, particularly those that are prone to foaming, using downward filling technology. This piston filling machine can handle detergents of varying consistencies, from thin to viscous, and is more cost-effective compared to other quantitative filling methods.



Filling Process
Piston fillers accurately measure and dispense free-flowing products, such as thin or moderately dense liquids, into containers. Each machine is equipped with one or more volumetric pistons. The fill/release cycle includes an intake stroke, during which the product is drawn from the container or hopper into the product cylinder. The downstroke begins when the product cylinder reaches its preset fill level, and the piston expels the product from the cylinder into the container.



Parameter

Model
NP-VF-2
NP-VF-4
NP-VF-6
NP-VF-8
NP-VF-10
NP-VF-12
NP-VF-16
Heads
2
4
6
8
10
12
16
Range(ml)
100-500,100-1000,1000-5000
Capacity(bpm)base on 500ml
12-14
24-28
36-42
48-56
60-70
70-80
80-100
Air Pressure(mpa)
0.6
Accuracy(%)
±0.1-0.3
Power
220VAC SINGLE PHASE 1500W
220VAC SINGLE PHASE 3000W



Main Feature

1. Compact and Reasonable Design:The automatic laundry detergent filling equipment is designed for optimal compactness and efficiency.

2. High-Quality Electrical Components: International brand electrical components are selected to ensure good quality and lasting, steady performance.

3. Customizable Configuration:The machine can be customized with specific numbers of filling heads and particular cylinder volumes based on production demands. Options include 6-head, 8-head, and 10-head configurations. Piston cylinder volume choices range from 25-250ml, 50-500ml, 100-1000ml, and 250-2500ml. The entire machine is speed-adjustable.

4. Easy Maintenance: Maintenance can be performed without tools. The machine can be easily disassembled, cleaned, and reassembled. Both filling precision and quantity are adjustable, allowing for broad range initial adjustments followed by fine-tuning.

5. Adaptability to Different Viscosities: A special filling valve is included to accommodate different material viscosities. A descending filling lift system ensures accurate material placement into the bottle mouth, complemented by a horizontal bottle-aiming fixture device.

Product Detail

Automatic Linear 4000bph Laundry Detergent Filling Machine For Bucket 0 Automatic Linear 4000bph Laundry Detergent Filling Machine For Bucket 1
Automatic Linear 4000bph Laundry Detergent Filling Machine For Bucket 2 Automatic Linear 4000bph Laundry Detergent Filling Machine For Bucket 3



Main structure of the automatic filling machine Detergent:

1. Available with a top hopper capacity ranging from 20L to 200L, and an optional double jacket hopper with heating and mixing systems.
2. The machine's main body is made from 304 stainless steel.
3. Specially designed filling nozzles to prevent dripping of sauces.
4. Vertically adjustable filling nozzles, with options for adjustment via air cylinders or a servo motor.
5. PLC control system with a user-friendly HMI interface.
6. Custom-made hose and valve for honey, with a CIP system connection for hygiene.

Advantages

1. Servo Motor System
The NP-VF series volumetric filling system utilizes an advanced servo motor system to control the main filling mechanism, ensuring high stability and precise positioning. The vertical movement of the filling piston enhances long-term energy efficiency and reduces machine workload.

2. Tool-Free Configuration
Adjustments can be made through the PLC interface without using tools, allowing users to achieve quick and efficient results. The sophisticated servo control system provides flexibility for filling surface layer liquids, bottom layer liquids, and bottle neck (opening) filling, adapting to various liquid types.

3. Precision Accuracy
The precise servo system manages the filling volume with exact piston strokes, ensuring outstanding filling accuracy. The piston features an intelligent adjustment mechanism, enabling users to achieve unparalleled precision.

4. Versatile Application
The Automatic Servo Filling Machine is applicable across various industries, including food, pharmaceuticals, chemicals, cosmetics, and more, demonstrating its versatility.

After-sales Support:

1. Installation:
Our team of seasoned technicians is equipped to deliver and install your filling machine. The service fee covers installation, travel, meal expenses, and more.

2. Training:
To optimize the performance of your filling machine, we offer on-site or factory training sessions for dealers, machine operators, engineers, and technicians.

3. Warranty:
Rest assured, our repair service for the automatic filling machine is efficient, backed by a one-year quality assurance period, parts supply, and prompt troubleshooting feedback.

4. Consultation Service:
Take advantage of our complimentary consultation service. Our knowledgeable sales team will guide you to the most suitable solution, providing CAD drawing designs for your bottling machine.

5. Technical Support:
Benefit from our round-the-clock, long-term technical support. Whether you reach out via email or phone, we'll promptly address your inquiries, ensuring your peace of mind.

6. Spare Parts:
Included in transportation are essential spare parts for the filling machine at no additional cost. Moreover, you can order a comprehensive range of high-quality parts at any time.
