Automatic Tomato Ketchup Filling Machine Sauce Filler Machine With Capacity 3000bph

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-VF

Detail Information

Filler: Ketchup, Sauce, Mayonnaise,peanut Butter Machine Type: Liner Type Piston Filling Machine
Machine Body Material: Stainless Steel 304 Condition: New
Liquid Material: Oil, Sauce, Honey,paste,cream Application: Food/Beverage/Chemical Industry
Filling Head: Multi Filling Head Bottle Height: 80-280mm
Transport Package: Packed In Wooden Cases Feed Cylinder Structure: Multi-Room Feeding
Warranty: One Year Control System: PLC Control System+Touch Screen
Automatic Grade: Automatic Accuracy: ±0.1%
Highlight:

3000bph Tomato Ketchup Filling Machine

,

Automatic Tomato Ketchup Filling Machine

,

Tomato Ketchup Filler Machine

Product Description

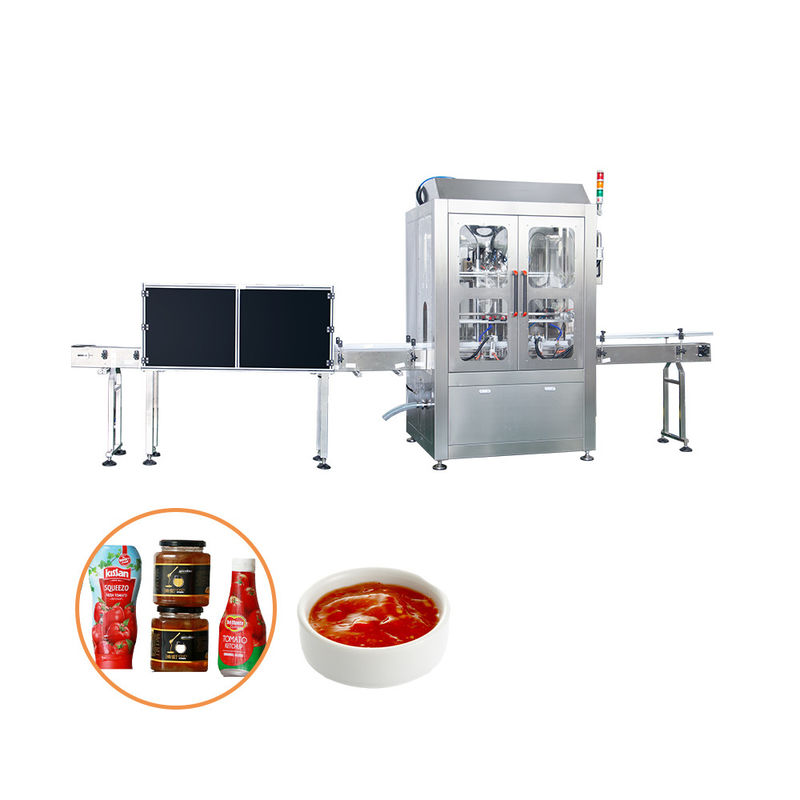

Automatic Tomato Ketchup filling machine

This fully automatic tomato ketchup filling machine is designed using the piston pump filling principle, accommodating a standard filling capacity ranging from 100 to 5000ML. If your bottle sizes fall within this range, we can tailor the machine to meet your specific requirements. The operation of the machine is governed by a PLC and a servo motor, which contribute to its high filling accuracy and rapid filling speed, making it highly efficient for production lines.



The machine is versatile, suitable for handling bottles of different capacities and shapes. Adjustments to the filling capacity can be easily made through the user-friendly touch screen interface. This feature allows for flexibility across various production demands. The machine is engineered to fill a range of viscous liquids, making it suitable for multiple industries.



Each component of the machine features a quick-loading interface, which simplifies the process of disassembly and cleaning, ensuring that production standards are met without compromising quality. This design consideration helps maintain hygiene standards and enhances the overall efficiency of the maintenance process, supporting continuous and reliable operation.



Key Features:

1. Enhanced PLC software support enables optimal filling operations.
2. The touch-operated color screen displays production status, operational procedures, and filling methods, making it straightforward to use and maintain.
3. Each filling head is equipped with a bottle-mouth clamping device to ensure precise targeting during material injection.
4. This machine accommodates different vessel sizes and allows quick adjustments to filling volumes.
5. Optional servo filling system available for greater precision.
6. Features anti-drip and anti-silk technology, along with an automatic cut-off for blocked nozzles, ensuring a clean and efficient process with viscous liquids.
7. The machine uses advanced technology-treated pistons and piston barrels for enhanced durability, accuracy, and wear resistance.
8. Includes a material stirring system, three-point liquid level control, and is suitable for both cold and hot filling processes, guaranteeing accurate fill levels.



Main Parameters



Model
NP-VF-2
NP-VF-4
NP-VF-6
NP-VF-8
NP-VF-10
NP-VF-12
NP-VF-16
Heads
2
4
6
8
10
12
16
Range
100-500ML,100-1000ML,1000-5000ML
Capacity
base on 500ml
12-14 bpm
24-28 bpm
36-42 bpm
48-56 bpm
60-70 bpm
70-80 bpm
80-100 bpm
Air Pressure(mpa)
0.6
Accuracy(%)
±0.1-0.3
Power
220VAC SINGLE PHASE 1500W
220VAC SINGLE PHASE 3000W



Product Details

Automatic Tomato Ketchup Filling Machine Sauce Filler Machine With Capacity 3000bph 0 Automatic Tomato Ketchup Filling Machine Sauce Filler Machine With Capacity 3000bph 1
Automatic Tomato Ketchup Filling Machine Sauce Filler Machine With Capacity 3000bph 2 Automatic Tomato Ketchup Filling Machine Sauce Filler Machine With Capacity 3000bph 3



Company Profile

With a legacy rooted in innovation and precision engineering, we proudly position ourselves as a leading manufacturer of filling machines. Npack, as a specialized manufacturer, has honed its expertise in crafting filling machines that set industry standards. Our machinery is meticulously designed to meet the diverse requirements of the  processing and packaging sector.

Dedicated to remaining at the forefront of filling technology, we continually invest in research and development to deliver the latest advancements. The Npack team is steadfast in its commitment to providing exceptional service and support throughout our partnership with you. With a global reach, we assist sauce processors and manufacturers in enhancing their production capabilities.



After-sales Service:

1. Installation:
Our team of skilled technicians is prepared to dispatch and install the filling machine. The service fee covers installation, travel, meal expenses, and more.



2. Training:
To ensure optimal performance of the filling machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.



3. Warranty:
When repairing the filling machine, expect efficient service, a one-year quality assurance period, parts supply, and prompt troubleshooting feedback.



4. Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the filling machine.



5. Technical Support:
Benefit from our round-the-clock, long-term technical support. Simply drop us an email or give us a call, and we'll provide prompt feedback, ensuring your peace of mind.



6. Spare Parts:
During transportation, we include a set of vulnerable spare parts for the filling machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time.
