Automatic Cream 2/4 Nozzle Bottle Filling Machine Piston Pump Filling Machine

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: NPACK
Certification: CE Model Number: NP-EVF

Detail Information

Application: Liquid, Paste, Jam, Sauce Automatic Grade: Automatic,
Bottle Material: PET Bottle,Plastic Bottle, Glass Bottle Contact Material: Stainless Steel 316
Feed Cylinder Structure: Multi-Room Feeding Filler: Shampoo, Detergent,hand Soap, Sauce
Filling Accuracy: ±1% Filling Rage: 100ml-5L
Packaging Material: Wooden Box Structure: Linear
The Material: Stainless Steel Warranty: One Year
After-sale Service: Online Support
Highlight:

2 nozzle bottle filling machine

,

piston pump filling machine

,

piston cream filling machine

Product Description

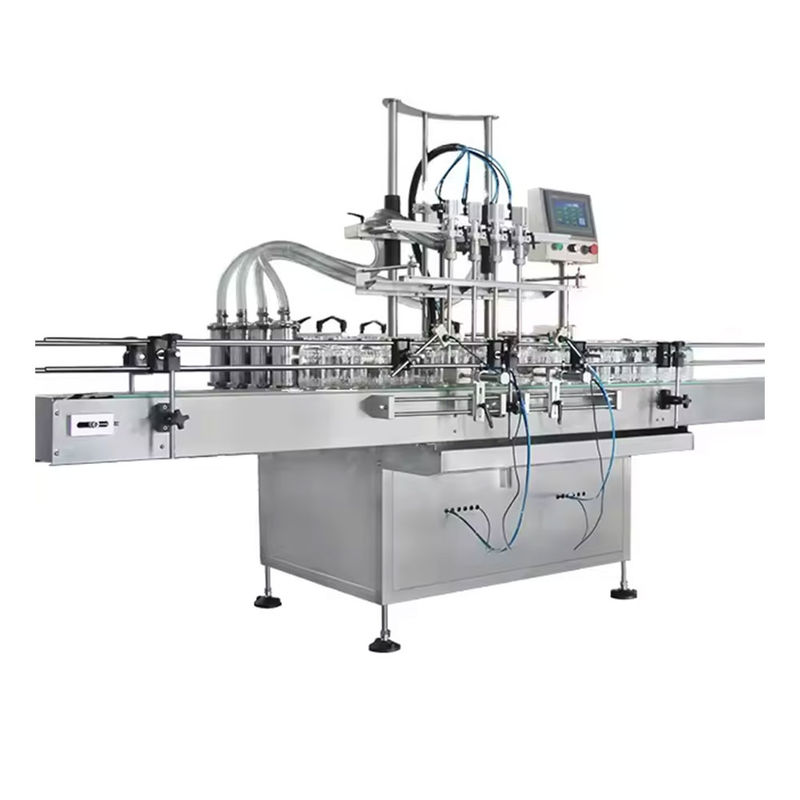

Automatic Economical 2/4 Nozzle Bottle Filling Machine

The NP-EVF automatic linear viscous piston filling machine is designed based on the NP-VF model, offering exceptional flexibility in accurately and rapidly filling thin to medium viscosity liquids.



Manufactured with a 304 stainless steel frame, the NPACK automatic linear piston filler is equipped to support 2 to 4 fill nozzles, featuring PLC Controls, a touch screen interface, food-grade contact parts, stainless steel, and anodized aluminum construction, along with numerous other standard features.



It enhances efficiency across various production lines in industries such as cosmetics, food, specialty chemicals, pharmaceuticals, and personal care. Additionally, options are available to meet specific requirements for sanitary, hazardous, flammable, and corrosive environments.



1. We have introduced a new design for our automatic piston liquid filling machine, inspired by innovations from abroad. This machine utilizes a programmable control system, offering selectable filling models, adjustable specifications, and emergency stop alerts. With intelligent indications and a user-friendly interface, operation becomes more convenient. Additionally, it is simpler to adjust, clean, and maintain, providing the versatility to fill various bottle types accurately.

2. To meet diverse requirements, we offer customization for all kinds of models. Optional features include anti-drip and anti-drawing filling heads, a lifting system for filling foamy liquids, and a lateral bottle positioning system. The quantity of filling heads can be increased according to specific needs.



Working Principle:

1. Upon activation of the automatic filling system, empty bottles pass through a photo detector. When the input bottle photo detector registers the preset quantity of bottles, the system controls the bottle blocker to engage, halting the bottles. The filling head descends to fill the bottles until they reach the correct position, ensuring security and reliability. If set for secondary operation, the system performs a second fill after the first. Upon reaching the set fill level, the PLC sends a signal to stop filling, prompting the filling head to rise, and the bottle blocker to retract. As the posterior bottle blocker returns, the output photo detector counts four bottles, signaling the release of the first bottle blocker. Simultaneously, new bottles enter, repeating the process.



2. Concurrently, the PLC receives signals from the liquid level sensor, monitoring changes in the work liquid stored in the cylinder. The liquid compensation system maintains the liquid level within the cylinder's appropriate range, ensuring precise filling.



Main parameters

1 Filling Nozzles 2 or 4 nozzles
2 Filling speed 10-40bottles/min
3 Filling range 50-5000ml
4 Measurement precision ±1%
5 Standard construction material 304SS
6 Standard working power 220V, 50/60HZ, single phase or 380V, 50/60Hz
7 Air pressure 6~8㎏/㎝²
8 Air consumption 1m³/min
9 Power rate 0.8-1 kw
10 Other devices power rate 7.5kw(air compressor)
11 Dimension and weight subject to the model configuration and customer products
12 Drive Mode Pneumatic Driven or servo motor

Product Detail

Automatic Cream 2/4 Nozzle Bottle Filling Machine Piston Pump Filling Machine 0 Automatic Cream 2/4 Nozzle Bottle Filling Machine Piston Pump Filling Machine 1

Feature

1. Constructed from 304 stainless steel, with liquid contact parts crafted from 316L stainless steel.
2. All contact parts can be customized with Teflon, Vinton, and hoses according to your specifications.
3. PLC control ensures no fill without a bottle present.
4. Filling nozzles feature anti-drip, silk, and automatic cut-off functionalities for viscous liquids.
5. Ensures accurate filling volume, with a deviation of within ±1%, along with a total bottle counter.
6. Maintenance is hassle-free, requiring no specialized tools.
7. Special seals or hoses are utilized if the liquids are corrosive.
8. Diving nozzles are available for bottom-up filling of foaming products, if required.
9. Capable of locating bottle mouths for precise filling.




Company Profile

Immersed in a legacy of groundbreaking innovation and exacting engineering, we proudly position ourselves as leading manufacturers of filling equipment. Npack, a renowned authority in this realm, has honed its expertise in crafting paste filling machines that redefine industry benchmarks. Our equipment is painstakingly designed to cater to the varied requirements of the sauce processing and packaging sector.



Motivated by a steadfast commitment to pioneering filling technology, we consistently invest in research and development to introduce state-of-the-art advancements. The Npack team remains steadfast in its pledge to provide exceptional service and support throughout our collaboration. With a global footprint, we empower sauce processors and manufacturers to enhance their production capabilities.

Post-Sale Services:

1. Installation:
Our team of proficient technicians stands ready to deploy and install the filling equipment. The service fee encompasses installation, travel, accommodation, and related expenses.



2. Training:
To optimize the performance of the filling equipment, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.



3. Warranty:
When it comes to repairing the filling equipment, expect prompt service, a one-year quality assurance period, parts provisioning, and expedited troubleshooting assistance.



4. Consultation Services:
Leverage our complimentary consultation service. Our seasoned sales team will steer you towards the most fitting solution, complete with CAD drawing designs for the filling equipment.



5. Technical Assistance:
Take advantage of our round-the-clock, long-term technical support. Just drop us an email or give us a call, and we'll provide swift assistance, ensuring your peace of mind.



6. Spare Parts:
During transit, we include a set of essential spare parts for the filling equipment at no extra charge. Additionally, you can order a comprehensive array of premium-quality parts at your convenience.
