Rotary Piston Pump Filling Machine Automatic Multy Heads High Speed CIP Function

Minimum Order Quantity : 1 Price : 95000USD to 320000USD
Packaging Details : cases Delivery Time : 90 days
Payment Terms : T/T, L/C Supply Ability : 2sets/month
Place of Origin: CHINA Brand Name: NPACK
Certification: CE Model Number: NP-RVF

Detail Information

Port: Shanghai Port Filling Form: Piston-type Filling
Packaging Type: Bottles, Cans Advantage: High Accuracy
Filling Head: 12heads To 32 Heads Total Power: 5000W
Accuracy: 0.2% Cip Cleaning: Available
Filling Volume: 100ml-1000ml Filling Heads: 12-32 Heads
Anti-Drip Function: Available Drive: Servo Driven

rotary piston filling machine


rotary piston pump filling machine


piston type filling machine

Product Description

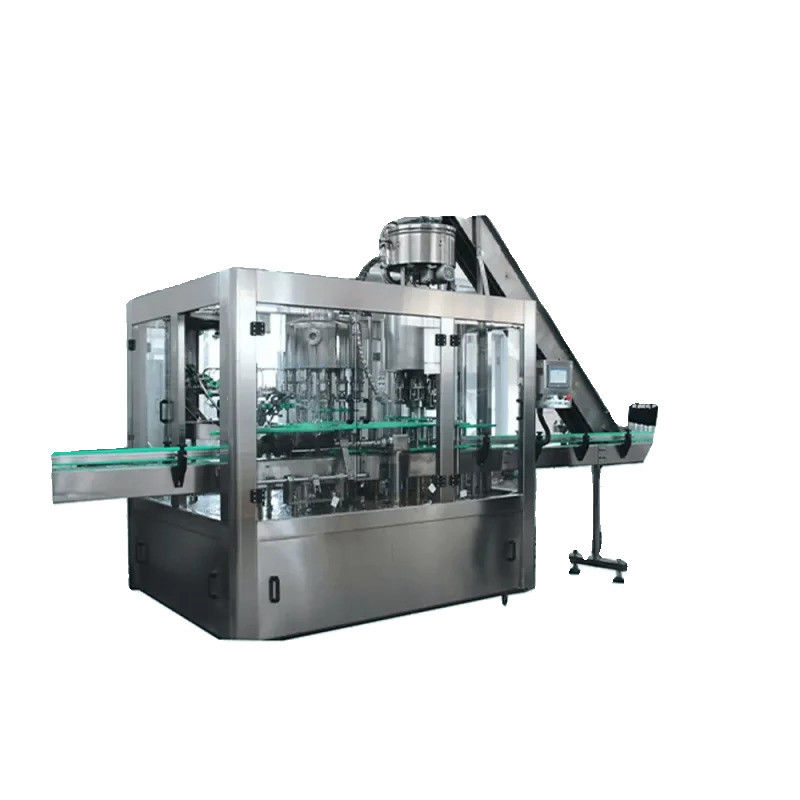

Automatic Rotary Multy heads high speed Piston Filling Machine with CIP function

Automatic Rotary Piston Filling Machine

The NP-RVF Automatic Rotary Piston Filling Machine was originally designed to meet the high-capacity filling requirements for packaging single viscous liquid products. This rotary piston filler functions seamlessly, ensuring a continuous flow of liquid into bottles without any interruptions in the transfer process. Over the years, Npack has incorporated technological advancements to enhance the machine's versatility. The recent updates simplify the process of switching parts, making it more efficient to adapt the machine for different container sizes. This innovative feature enhances flexibility and user-friendliness, catering to a variety of packaging needs.

Rotary Piston Pump Filling Machine Automatic Multy Heads High Speed CIP Function 0

The NP-RVF stands out as an exceptional piece of equipment designed for accurately dosing various viscous liquids. Its versatility makes it highly suitable for applications in daily chemicals and cosmetics, accommodating products like body lotion, cosmetic creams, emulsions, gels, hand soap, serums, shampoo, and detergents. Furthermore, it is well-regarded for its efficient filling capabilities with food liquids and sauces, including tomato sauce, ketchup, honey, soy sauce, and edible oils.

This equipment excels as an ideal high-capacity filler for viscous liquids falling within the filling volume range of 300ml to 1000ml. Whether used in the cosmetics or food industry, the NP-RVF demonstrates its capability to handle a diverse range of products while ensuring precise and efficient dosing.



Utilizing high-precision volumetric dosing technology for accuracy, the system operates with simplicity, requiring no specialized skills. It incorporates a no-fill function in the absence of a bottle, streamlining the process. Maintenance is user-friendly, and the equipment allows for swift changeovers between different products. Constructed with durable 304 stainless steel, it ensures reliability.

The equipment's compatibility with other machines in a filling line enables seamless synchronization. It boasts a leak-proof design, preventing drips and minimizing product waste. The inclusion of pneumatic shut-off filling nozzles further enhances the precision and control of the dosing process.



Features of the Optional Machine Configuration:

  1. Individual Servo Motor Drive:Each servo motor is dedicated to driving the piston stroke movement independently, providing precise control and flexibility in the dosing process.
  2. Mixing Top Hoppers:Incorporates top hoppers designed for mixing, ensuring homogeneous blending of ingredients before the filling process, enhancing product consistency.
  3. Double Jacket Hopper with Heating:The hopper is equipped with a double jacket for efficient heating. This feature facilitates temperature control, crucial for various applications, and ensures the viscosity of the liquid remains optimal.
  4. Pressure Top Tank:A pressure top tank is integrated to maintain consistent pressure during the filling operation. This promotes stability and accuracy, particularly for applications requiring controlled pressure conditions.
  5. Rotary Valve for Food Sauce with Granular Solids:Features a rotary valve specifically designed for handling food sauces containing granular solids. This enhances the machine's capability to accommodate a broader range of products with varying consistencies, ensuring smooth and efficient filling
