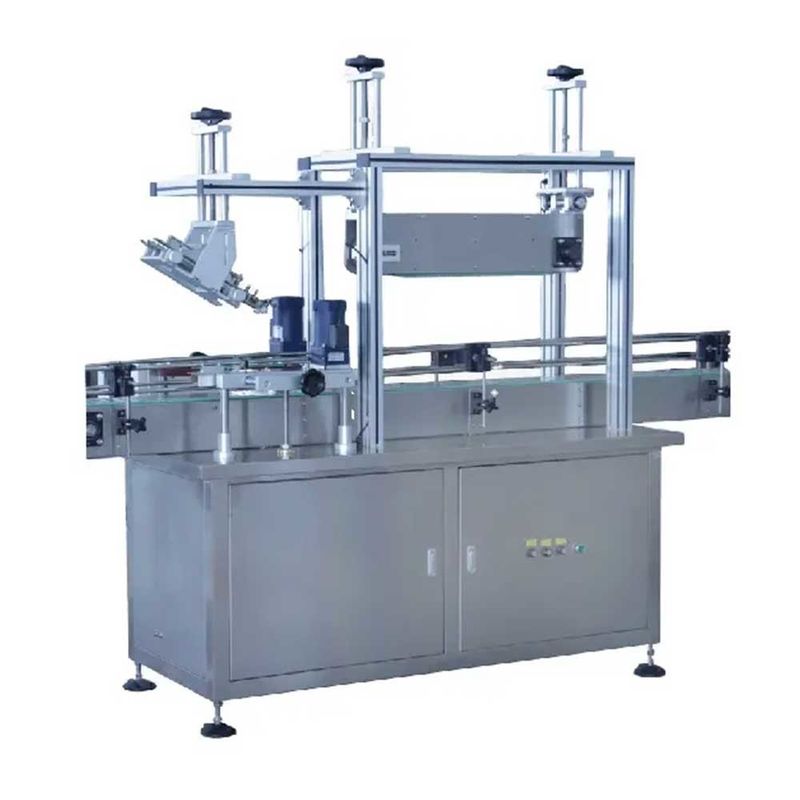

Automatic Essential Oil Plastic Pet Bottle Press Capping Machine

Automatic Essential Oil Plastic Pet Bottle Press Capping Machine

Product Details:
Place of Origin: China
Brand Name: N PACK
Certification: CE
Detail Information
Place of Origin:
China
Brand Name:
N PACK
Certification:
CE
Highlight:

High Light

Highlight:

essential oil capping machine

,

pet bottle capping machine

,

Press Capping Machine

Trading Information
Minimum Order Quantity:
1
Price:
5000USD/set to 50000USD/set
Packaging Details:
Wooden box
Delivery Time:
40 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100SETS
Product Description

Automatic Oil Plastic Pet Bottle Press Capping Machine

The Automatic Press Capping Machine is designed for sealing press-type caps, comprising three main components: cap feeding system, cap loading system, and cap closing system. Its distinguishing features include a simple structure and a high qualification rate. This machine can function independently or as part of an inline setup. Its linear design enhances versatility, making it suitable for a range of caps and bottles. Widely applied in industries such as food, beverages, cosmetics, chemicals, etc., it excels at press-sealing jar caps, plastic bottle caps, and can caps.


Feature

1. Crafted from stainless steel plate, this machine ensures reliability.
2. The synchronous chain plate cover principle is employed to seamlessly cover various types of plastic anti-counterfeit caps without causing any scratches.
3. Notable for its novel structure, minimal faults, extended service life, and dependable operation.
4. Equipped with stepless variable frequency motor speed control, it accommodates a wide range of bottle types.
5. Featuring a linear structure, it effortlessly handles bottles of different sizes without the need for change parts.
6. The cap feeding system is tailored to cap samples, utilizing either a vibrating bowl or cap elevator. With an automated cap-feeding design, the top belt continuously presses caps online, meeting the requirements of high-speed cap production.
7. The option of a PLC control system and touch screen is available for enhanced control.
8. Primarily constructed from SUS304, including the frame and body, this machine ensures continuous operation and high automation, guaranteeing efficiency.



Parameter

1
Model
NP-LC
2
Applied bottle range
100ml-1000ml 1000ml-5000ml
3
Applied cap size
Dia:12-120mm
4
Yield of capping
>99%
5
Power Supply
220V 50HZ
5
Power Consumption
<2KW
6
Air Pressure
0.4-0.6Mpa
7
Speed Control
Frequency Conversion
8
Single machine noise
<=70Db
9
Weight
850kg
10
Dimension (LxWxH)
2000x1100x1800(mm)
11
Production Capacity
5000-7200 bottles/h



Product Details

Automatic Essential Oil Plastic Pet Bottle Press Capping Machine 0 Automatic Essential Oil Plastic Pet Bottle Press Capping Machine 1
Automatic Essential Oil Plastic Pet Bottle Press Capping Machine 2 Automatic Essential Oil Plastic Pet Bottle Press Capping Machine 3



Advantage

1. The press snap capping machine is an integral part of a bottle filling line. Teaming up with a high-speed cap loading machine, it efficiently loads and presses caps onto round, square, and oblate plastic bottles. This versatile equipment finds extensive use in pharmaceutical, health food, and the food and chemical industries.

2. Utilizing a chain drive and a continuously variable speed control system, the press snap capping machine ensures stability, efficiency, durability, and easy maintenance and adjustment.

3. With rapid cap supply, steady operation, and a broad adjustment range, this machine seamlessly integrates with various high-speed counting lines. When switching products, adjustments to the cap loader's clamping device, cap pressing assembly, and cap pressing machine are all that's needed—no part replacements required.

4. The key components of the press snap capping machine are constructed from stainless steel and high-quality aluminum. Critical electronic parts are sourced from Europe, the USA, and Japan. All materials used adhere to pharmaceutical industry standards and meet GMP requirements.

5. Applicable to pharmaceuticals, healthcare products, and the food industry, it suits a variety of caps and different materials, accommodating round, oblate, square, and flat square bottles.



Company Profile
With a heritage steeped in innovation and precision engineering, we proudly position ourselves as a premier manufacturer of capping machine. Npack, as a specialized manufacturer, has refined its expertise in the creation of capping machine that establish industry benchmarks. Our machinery is meticulously crafted to cater to the varied requirements of the processing and packaging sector.

Committed to staying at the forefront of bottle capping technology, we consistently invest in research and development to deliver the latest advancements. The Npack team is unwavering in its dedication to providing exceptional service and support throughout your association with us. Our reach extends globally, as we assist  processors and manufacturers in elevating their production capabilities.



After-sale Service

1.Install:
Our team of skilled technicians is ready to dispatch and install the capper machine. The service fee covers installation, travel, meal expenses, and so on.



2.Train:
For optimal performance of the capping machine for bottle, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.



3.Guarantee:
When repairing the capping machine, expect efficient service, a one-year quality assurance period, parts supply, and swift feedback for troubleshooting.



4.Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the capper machine



5.Technical Support:
Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide quick feedback, ensuring you can be carefree.



6.Spare Part:
During transportation, we include a set of vulnerable spare parts for the capping machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time.



Packing and Shipping:
Packaging and Shipment for the capping machine
Packaging:
The capping machine will be securely encased in a robust wooden crate, guaranteeing its safe transport.
To prevent any shipping-related damage, the machine will be enveloped in protective materials.
All components and accessories will be meticulously packed, and clear labels will facilitate easy identification.
Included in the packaging are a comprehensive user manual and a warranty card.
Shipping:
We provide a range of shipping alternatives, encompassing air, sea, and land transportation, tailored to meet our customers' specific requirements.
Our adept logistics team will thoughtfully plan the shipping route and manage all essential customs procedures.
In collaboration with trustworthy shipping companies, we ensure the punctual and secure delivery of our products.Customers will receive a tracking number to monitor the real-time status of their shipment.
