Bottle Rotary Pick And Place Capping Machine Fully Automatic Jar Capping Machine

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE

Detail Information

Applied Bottles: φ35-95mm; Height 80-230mm Bottle Type: Round Vial
Cap Diameter: 20-50mm Capping Head: 1 Or 2
Function: Screwing Caps Grade: Automatic
Oem: Yes Packaging Type: Case
Port: Shanghai Power Source: 220V 50Hz
Suitable Size: According To Customer's Model

pick and place capping machine


automatic capping machines


automatic jar capping machine

Product Description

Rotary Pick And Place Bottle Capping Machine Fully Automatic

The pick and place capping machine is engineered and fabricated to accommodate caps that cannot be directly fed onto bottles. Primarily utilized for capping daily chemical bottles, cosmetics containers, and pilfer-proof caps, this capper can be integrated within our filling machine or used as a stand-alone unit. It is available with 1 or 2 heads, capable of achieving speeds of up to 4,000 caps per hour (dependent on cap and bottle type and size).


The pick and place (P&P) system is an automated capper designed to pick, place, and torque caps for PET, PVC, and glass bottles. Featuring a star wheel indexing system, it effectively controls and manages delicate bottles. Additionally, the star wheel aids in maintaining bottle stability during torque application.

The Npack auto pick and place capper is compatible with various bottle types, including PET, PVC, plastic, and glass. To prevent cap damage, it offers adjustable electronic torque settings.


1. Bottles are processed on star wheels, requiring a changeover of the star wheel for different bottle sizes.

2. Ensures stable operation, primarily suitable for containers under 1000ml.

3. Caps are fed using various systems, including elevators, vibrators, and centrifuge plates, which store and transport the caps to the dispenser and chute.

4. Cam divider or pneumatic rail, equipped with vacuum or robotic hand systems, is employed for cap picking and placement.

5. Capping heads are customized based on cap types and driven by servo motors.

6. Capping torque can be adjusted via the HMI (Human-Machine Interface).



Capping heads 1 or 2
Capacity 1500b/h to 4000b/h
Size 2000mm*1400mm*2100mm
Voltage 220V single phase
Power 1.5KW


Product Details

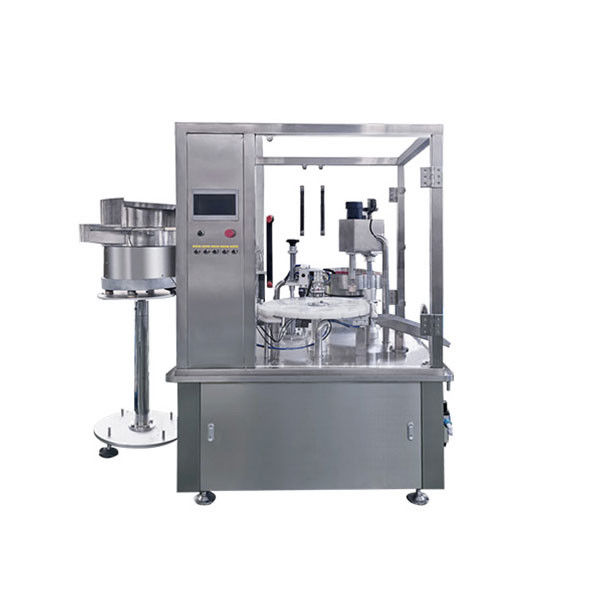

Bottle Rotary Pick And Place Capping Machine Fully Automatic Jar Capping Machine 0 Bottle Rotary Pick And Place Capping Machine Fully Automatic Jar Capping Machine 1


Principle of Operation:
Filled bottles are conveyed along a conveyor belt and guided into an in-feed star wheel by an in-feed worm. As the bottles travel through the in-feed star wheel, they individually pick up caps from a delivery chute. Descending rotary sealing heads then apply the desired pressure to the neck of each bottle. Sealing occurs in a programmed roll-on manner, with the caps accurately positioned mechanically by a rotating unscrambler to ensure correct alignment into the chute. Once the chute is filled, the drive for the rotating unscrambler is disengaged, preventing any potential damage to the caps. Sealing is achieved through the rotation of the sealing head and the transfer movement of sealing threading rollers driven by a sealing cam. Finally, the sealed bottles are discharged by an exit star wheel onto conveyors


After-sale Service

Our team of skilled technicians is ready to dispatch and install the capping machine. The service fee covers installation, travel, meal expenses, and so on.


For optimal performance of the capping machine. we offer on-site or factory training for dealers, machine operators, engineers, and technicians.


When repairing the capping machine, expect efficient service, a one-year quality assurance period, parts supply, and swift feedback for troubleshooting.


4.Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the capping machine


5.Technical Support:
Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide quick feedback, ensuring you can be carefree.


6.Spare Part:
During transportation, we include a set of vulnerable spare parts for the chili sauce filling machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time.
