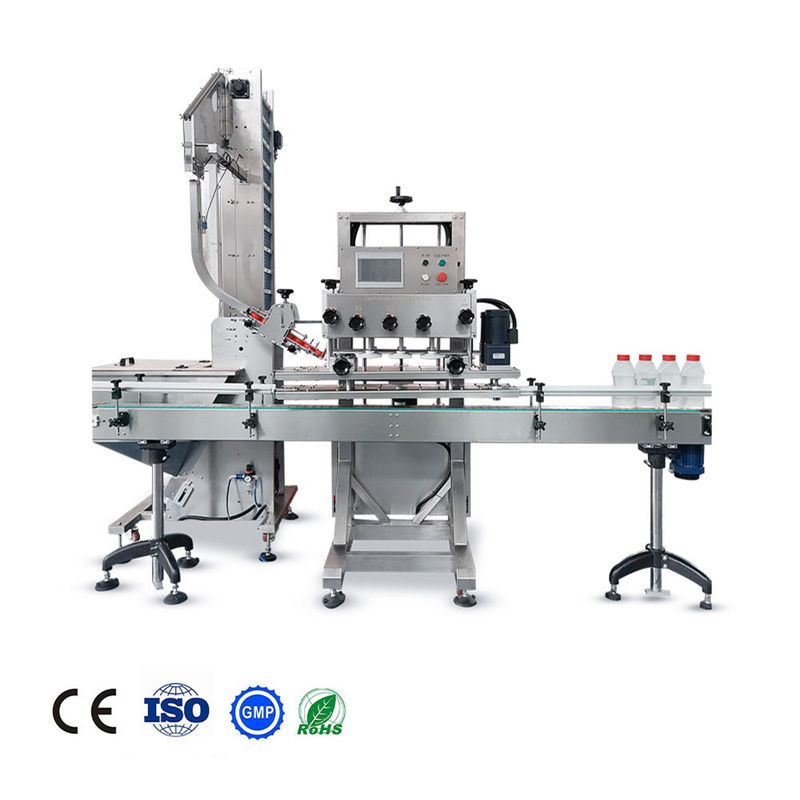

Automatic 6 Wheel Screw linear bottle capping machine

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: N PACK
Certification: CE Model Number: NP-LC

Detail Information

Suitable Cap Size: 20-120mm Color: Silver
After Sales Service: Online Video Teaching Support Pump Range: 1.1-10 Ml
Function: Screw Cap Usage: Bottle Capping
Type: Linear Capping Machine Machine Weight: 500KG
Model: NP-LC Key Selling Points: High Safety Level
Screw Cap Rate: ≥99.9% Control System: PLC Control System+Touch Screen
Automatic Grade: Automatic

linear capping machine


linear screw capping machine


linear bottle capping machine

Product Description

Automatic 6 wheel linear screw capping machine

This six wheel capping machine is designed for securely tightening threaded caps and is equipped with a vertical wheel cap sorter, an elevator-style cap sorter, and the option for either a Vibratory or Centrifugal Sorting Bowl. Here are the key features:

It is employed for screwing caps onto round, square, or oblate bottles.
The machine is versatile and can be utilized on an independent rack, making it suitable for cap screwing in large-scale production lines.
It caters to the needs of customers requiring cap screwing for bottles of different specifications.
Specifically, it is suitable for wide-mouth bottles, performing thread cap screwing on large-caliber glass and plastic bottles used for fermented bean curd, pickles, and pulps.


NP-LC Automatic linear spindle capping machine
40-150 bottle/minute (actual capacity depends on bottle and caps
Cap diameter
Bottle Height
AC 220V 50/60HZ
Cap feeding system
Elevator Feeder
Vibration cap sorter


Product Detials

Automatic 6 Wheel Screw linear bottle capping machine 0 Automatic 6 Wheel Screw linear bottle capping machine 1
Automatic 6 Wheel Screw linear bottle capping machine 2 Automatic 6 Wheel Screw linear bottle capping machine 3


1. The conveyor belt height is adjustable to seamlessly integrate with other machines in the production line.
2. All exposed parts are either clad in stainless steel or subjected to hard chrome plating to ensure prolonged life and resistance against corrosion.
3. Synchronized A/C drives are implemented to coordinate the functioning of the conveyor, star wheel, platform turret, and capping bowl.
4. An adjustable bottle height gauge facilitates quick and easy settings.
5. Adjustment options are provided for both height and width of the gripper belt.
6. Spindle Wheels feature adjustment knobs and lock nut hand wheels for precise tuning.
7. The machine requires no change parts for handling a diverse range of containers.
8. Drive shafts and adjustment support shafts are constructed from sanitary 304 stainless steel.
9. Timing belt power transmission is employed for the Spindle Wheels.
10. Bottom screw changeover functionality is integrated into the Spindle Wheels.
11. Cap Feed Chute incorporates 1/2” aluminum mounting plates and 1/2” hard coat anodized supports.
12. The dual gripper belts are easily removable for maintenance and cleaning purposes.


After-sale Service

Our team of skilled technicians is ready to dispatch and install the capping machine. The service fee covers installation, travel, meal expenses, and so on.


For optimal performance of the
capping machine
, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.


When repairing the
capping machine, expect efficient service, a one-year quality assurance period, parts supply, and swift feedback for troubleshooting.


4.Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the
capping machine.


5.Technical Support:
Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide quick feedback, ensuring you can be carefree.


6.Spare Part:
During transportation, we include a set of vulnerable spare parts for the
capping machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time.


Packing and Shipping:
Packaging and Shipment for the
capping machine
capping machine will be securely encased in a robust wooden crate, guaranteeing its safe transport.
To prevent any shipping-related damage, the machine will be enveloped in protective materials.
All components and accessories will be meticulously packed, and clear labels will facilitate easy identification.
Included in the packaging are a comprehensive user manual and a warranty card.
We provide a range of shipping alternatives, encompassing air, sea, and land transportation, tailored to meet our customers' specific requirements.
Our adept logistics team will thoughtfully plan the shipping route and manage all essential customs procedures.
In collaboration with trustworthy shipping companies, we ensure the punctual and secure delivery of our products.
Customers will receive a tracking number to monitor the real-time status of their shipment.
