Automatic Inline Multy Heads Horizontal Piston Filling Equipment System Volumetric Servo Driven

Product Description

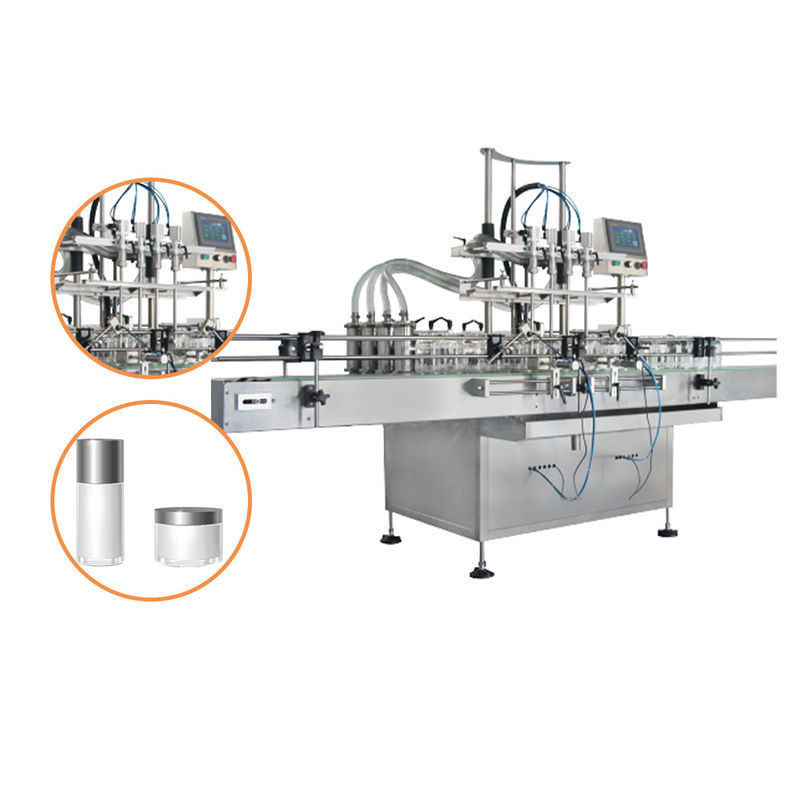

NP-EVF Automatic inline Multy heads horizontal Piston Filling machine servo driven

NP-EVF Automatic inline Multy heads horizontal Piston Filling machine

The NP-EVF automatic inline Multy heads horizontal Piston Filling machine was driven by a main servo motor or each piston driven by individual air cylinder.It is one of the earliest automatic piston filler.Even after some years development, this type of economy affordable piston filler is still popular for liquid packagings and dosing.

NP-EVF Horizontal Piston Filling Machine: Applications

The NP-EVF is ideal for dosing semi-viscous liquids and those with easy flow characteristics. In its standard configuration, it does not come equipped with a top liquid hopper or tank. Instead, the piston draws liquid from a nearby tank and dispenses it into the packaging containers. The piston cylinder is positioned horizontally for this operation. It’s important to note that the NP-EVF is most suitable for products that do not have high viscosity due to its design and functionality.

Machine Features

• 304 Stainless steel construction material , and the liquid contact parts are 304SS or 316SS food grade stainless steel
• No bottle ,no fill, PLC control,automatic warning on failure
• The filling blocked nozzles are anti drips, silk, and auto cut viscous liquid
• Accurate filling volume, within ±0.5% and a total bottle counter.
• Easy to maintain, no special tools are required.The horizontal piston cylinder layout makes easy disassemble and dismantle
• Special SKF seals or hoses are adapted if the liquid are corrosive.
• Diving nozzles for bottom up filling of foaming products if need
• Bottle mouth can be located.
• Drips trays are standard

Option Machine Features

• Each servo motor driven by each piston stroke movement individually
• Mixing top hoppers
• Double jacket hopper with heating
• Pressure top tank
• Rotary valve for food sauce with granular solid
• Filling Valves for food sauce
• Filling Valves for oils products
• Diving Filling

Parameter
