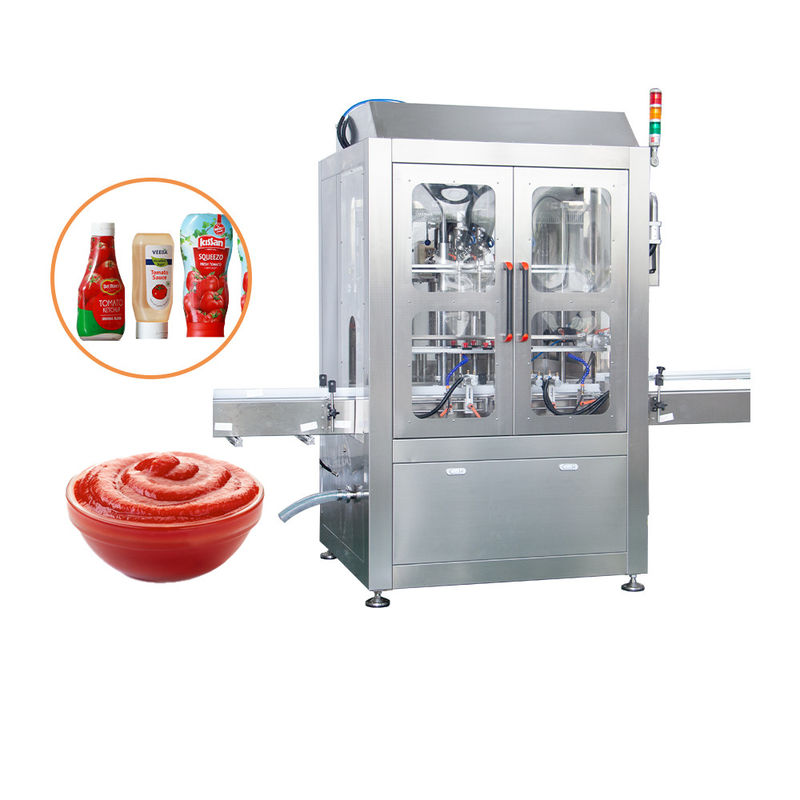

Automatic 2000-6000bhp Chili Hot Sauce Paste Filling Machine For Jar

Minimum Order Quantity : 1 Price : 9000USD/set to 50000USD/set
Packaging Details : Wooden box Delivery Time : 40 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100SETS
Place of Origin: China Brand Name: NPACK
Certification: CE Model Number: NP-VF

Detail Information

Application: Sauce, Paste, Jam, Ketchup Automatic Grade: Automatic,
Bottle Material: PET Or Glass Contact Material: Stainless Steel 316
Feed Cylinder Structure: Multi-Room Feeding Filler: Ketchup, Sauce, Mayonnaise,peanut Butter
Filling Accuracy: ±1% Filling Rage: 100ml-5L
Packaging Material: Wooden Box Structure: Linear
The Material: Stainless Steel Warranty: One Year
After-sale Service: Online Support

Product Description

Chili sauce serves as a versatile condiment, enhancing the spiciness and flavor of a wide range of dishes, from Asian cuisines to Western favorites.



Chili sauce comes in hot, sweet, or blended variations, setting it apart from traditional hot sauces. Unlike hot sauces, chili sauce includes sweet or mild varieties, introducing a spectrum of flavors. Some preparations, such as Thai sweet chili sauce and Filipino agre dulce, incorporate sugar to add a hint of sweetness. Additionally, certain chili sauces feature red tomatoes as a primary ingredient, contributing to their unique flavor profile. In terms of consistency, chili sauce often boasts a thicker texture compared to hot sauces.



Chili paste, on the other hand, typically consists of chili peppers as the main ingredient. While some variations are used during cooking, others serve as a seasoning applied after the dish is prepared. Fermented options, like Chinese doubanjiang with beans or Korean gochujang with powdered fermented beans, add complexity to the range of chili pastes available. Different regions and even cuisines offer their distinct takes on chili paste.



Both chili sauces and pastes find utility as dipping sauces, cooking glazes, and marinades. The market offers numerous mass-produced varieties, meeting diverse preferences. Automatic chili sauce bottle filling equipment ensures efficiency and completeness in function. With a small investment, high output, and superior quality can be achieved. The chili sauce bottle filling line complies with food safety laws, accommodating various products such as tomato sauce, peanut butter, jam, seasoning sauce, mayonnaise, and granules. This filling machine consists of bottle washing machine, tunnel sterilizer, automatic labeling machine, and packing machine, providing a comprehensive solution for chili sauce production.



Automatic 2000-6000bhp Chili Hot Sauce Paste Filling Machine For Jar 0

Our company has developed the fully automatic chili sauce filling machine in response to market demands. This machine is equipped with a volumetric plunger pump known for its resistance to high temperatures, acids, and alkalis, ensuring a prolonged service life. The integration of machinery, electricity, and gas, along with the use of a programmable controller (PLC), enables real-time monitoring and control, ensuring ease of use and adjustment. The machine seamlessly performs various operations, including bottle counting, metering filling, and bottle conveying.



Designed to accommodate materials with diverse viscosities, such as chili sauce, spicy sauce, beef sauce, mushroom sauce, seafood sauce, garlic sauce, etc., this filling machine offers versatility. Furthermore, it can be seamlessly integrated with bottle washing machines, capping machines, labeling machines, and other equipment to create a complete production line that adheres to GMP requirements.

Automatic 2000-6000bhp Chili Hot Sauce Paste Filling Machine For Jar 1



Features

1. The equipment rack features a enclosed structure, ensuring safe and sanitary operation.


2. The granular sauce filling machine incorporates a high-precision piston metering device driven by a servo motor, guaranteeing accuracy and reliability.


3. Constructed from SUS304 stainless steel, the chili sauce filling machine adheres to food production standards.


4. The automatic hot sauce filling machine employs top-quality sealing elements and effective anti-dripping measures to prevent any dripping at the filling site.


5. With its dedicated material storage box, the equipment can independently clean the pipeline, providing convenience for maintenance and refueling.


6. The servo motor in the granulated sauce filling machine includes a frequency conversion speed regulation conveying system, allowing adjustment based on production speed.


7. The filling head is equipped with a photoelectric system, accurately identifying the positioning status of filling bottles. This enables filling with bottles, filling without bottles, and avoiding filling when there are too few bottles.


8. The material box in the automatic chili sauce filling machine offers selection options and adjustable mixing speeds, facilitating the use of different mixing speeds.





Main Paramters

Model
NP-VF-2
NP-VF-4
NP-VF-6
NP-VF-8
NP-VF-10
NP-VF-12
NP-VF-16
Heads
2
4
6
8
10
12
16
Range
100-500ML,100-1000ML,1000-5000ML
Capacity
base on 500ml
12-14 bpm
24-28 bpm
36-42 bpm
48-56 bpm
60-70 bpm
70-80 bpm
80-100 bpm
Air Pressure(mpa)
0.6
Accuracy(%)
±0.1-0.3
Power
220VAC SINGLE PHASE 1500W
220VAC SINGLE PHASE 3000W



Product Details

Automatic 2000-6000bhp Chili Hot Sauce Paste Filling Machine For Jar 2 Automatic 2000-6000bhp Chili Hot Sauce Paste Filling Machine For Jar 3
Automatic 2000-6000bhp Chili Hot Sauce Paste Filling Machine For Jar 4 Automatic 2000-6000bhp Chili Hot Sauce Paste Filling Machine For Jar 5



Company Profile

With a heritage steeped in innovation and precision engineering, we proudly position ourselves as a premier manufacturer of sauce filling machines. Npack, as a specialized manufacturer, has refined its expertise in the creation of paste filling machines that establish industry benchmarks. Our machinery is meticulously crafted to cater to the varied requirements of the sauce processing and packaging sector.

Committed to staying at the forefront of sauce filling technology, we consistently invest in research and development to deliver the latest advancements. The Npack team is unwavering in its dedication to providing exceptional service and support throughout your association with us. Our reach extends globally, as we assist sauce processors and manufacturers in elevating their production capabilities.

After-sale Service

1.Install:
Our team of skilled technicians is ready to dispatch and install the chili sauce filling machine. The service fee covers installation, travel, meal expenses, and so on.



2.Train:
For optimal performance of the hot sauce filling machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.



3.Guarantee:
When repairing the chili sauce filling machine, expect efficient service, a one-year quality assurance period, parts supply, and swift feedback for troubleshooting.



4.Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the hot sauce filling machine.



5.Technical Support:
Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide quick feedback, ensuring you can be carefree.



6.Spare Part:
During transportation, we include a set of vulnerable spare parts for the chili sauce filling machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time.
