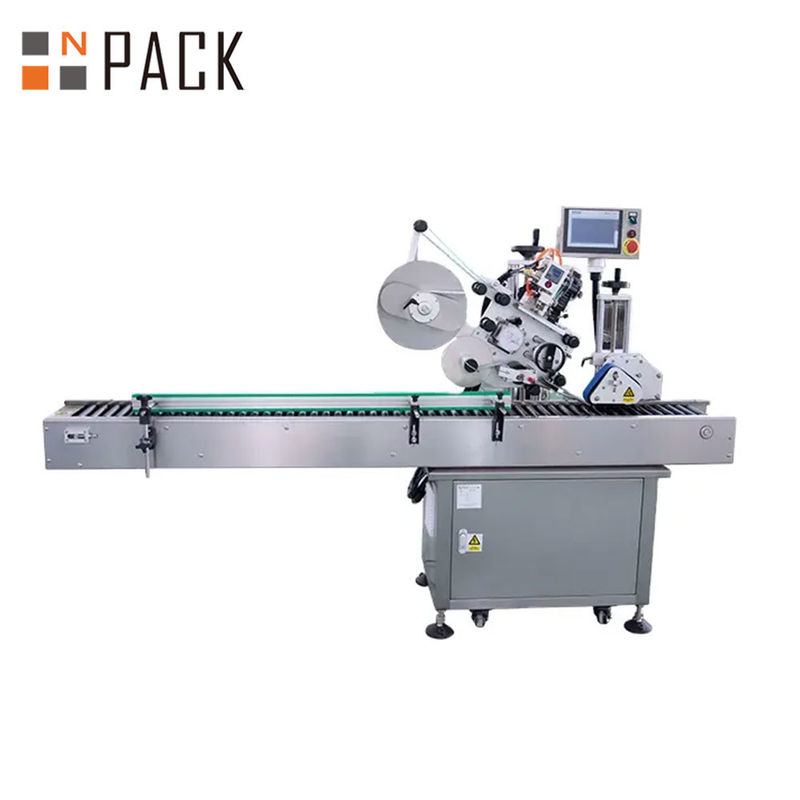

Npack High Speed PLC Control Horizontal Small Vial Labeling Machine

Automatic Small Vial Labeling Machine

    The Small Vial Labeling Machine is an automatic labeling solution designed for precise labeling of small round containers, including vials, reagent tubes, ampoules, and oral liquid bottles. Its horizontal labeling design ensures stable handling of small and lightweight containers that are difficult to label in an upright position.

With high labeling accuracy and gentle product handling, this machine helps prevent bottle damage while improving production efficiency. Custom designs are available to meet different vial sizes, shapes, and specific labeling requirements.

Main Features of Small Vial Labeling Machine

1.Easy Adjustment System

The Small Vial Labeling Machine features a flexible adjustment system that allows quick positioning in multiple directions. It supports accurate labeling for different vial shapes and sizes, ensuring smooth operation without label gaps or misalignment.

2.Stable Bottle Separation

Equipped with an automatic bottle separation mechanism, the machine uses a star-wheel system to ensure consistent vial feeding and prevent positioning errors during labeling.

3.User-Friendly Touch Screen Control

The intuitive touch screen interface makes operation simple and efficient. Operators can easily adjust labeling parameters and switch between different production settings.

4.Intelligent Labeling Control

With automatic photoelectric detection, the machine applies labels only when a vial is detected. Automatic correction and inspection functions help prevent labeling errors and reduce label waste.

5.Durable GMP-Compliant Construction

Made of stainless steel and high-quality aluminum alloy, the machine offers excellent durability, easy cleaning, and hygienic performance, meeting GMP requirements for pharmaceutical and medical applications.

6.Energy-Saving Functions

The Small Vial Labeling Machine includes automatic stop, counting, and standby functions. It automatically reduces power consumption when no products are detected, improving operational efficiency.

Product Details

Feeding bottle


volume label


Product Application

Working Principle of Horizontal Small Vial Labeling Machine

The Horizontal Small Vial Labeling Machine is designed for accurate labeling of small round bottles, vials, ampoules, and other unstable containers. Its horizontal feeding and labeling method ensures smooth transportation and precise label application.

1. Horizontal Bottle Feeding

Small vials are loaded into the machine and separated individually by the bottle separation wheel. The containers are arranged horizontally on the conveyor and move forward steadily for labeling.

2. Automatic Label Peeling and Application

The label roll is driven by the traction system. When passing through the peeling mechanism, labels are automatically separated from the backing paper and accurately applied to the vial surface.

3. Label Rolling and Finishing

After labeling, the vial passes through pressing rollers or a wrapping belt. The container rotates during the process, allowing the label to be smoothly wrapped around the bottle surface and firmly attached without wrinkles or bubbles.
