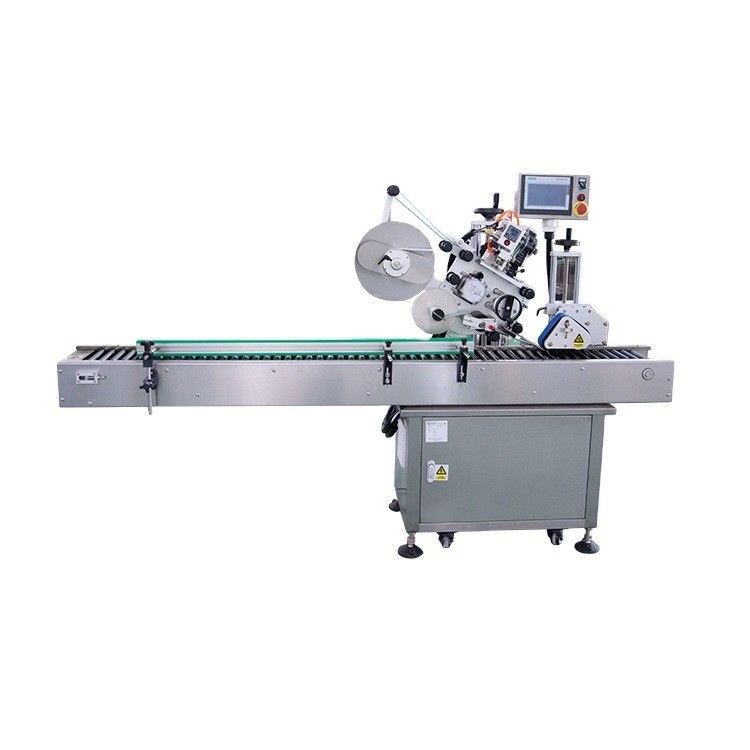

Automatic High Speed Horizontal Labeling Machine For Vials

Automatic Horizontal Labeling Machine For Vials

The Automatic Horizontal Sticker Labelling Machine features the latest Micro Processor Control Label Dispensing system and an easy-to-use sensing system for both labels and products. This machine is designed for labeling small diameter round objects that may be unstable, such as round ampoules, vials, pre-fill syringes, inhalers, and other small-sized round items. It can label up to 120 units per minute, depending on the product's diameter and label size. For regular-shaped round objects, the machine can be equipped with an optional product feeding hopper for continuous feeding.

The Horizontal Sticker Labelling Machine utilizes a unique, single-point synchronized speed control system. The built-in automated label length detection system eliminates the need for manual feeding and storing of label length data in memory, ensuring the same data is retrieved every time the label size changes or the machine restarts. This feature saves valuable time, reduces machine downtime, and helps to achieve higher production efficiency.

Advantages:

1. Advanced User Interface:
- Features a Chinese language human-machine interface touch screen with multi-group data memory storage for easy adjustment and operation.

- Changing the labeling unit and label length is simple and efficient, making it widely applicable in industries such as food, pharmaceuticals, cosmetics, fine chemicals, cultural products, and electronics.

- Ideal for labeling small-diameter objects that are difficult to stand upright, including oral liquid bottles, ampoules, syringe bottles, batteries, hams, sausages, test tubes, pencils, lipsticks, and solid glue bottles.

2. High-Speed Labeling:
- Incorporates a side-lying roller conveyor mechanism with a tilted conveyor chain for automatic bottle guidance, ensuring stable bottle transfer.

- Labeling speed can reach up to 100 bottles per minute, significantly reducing labor and material costs.

3. Low Breakage Rate:
- Utilizes flexible bottle-separating and labeling technologies for smooth bottle handling.

- Breakage rate is minimized to less than one in 100,000.

4. Superior Labeling Quality:
- Features a label tape correction system for high overlap accuracy between label head and tail.

- Rolling-type labeling ensures smooth application without wrinkles or air bubbles, enhancing packaging aesthetics.

5. High Stability:
- Equipped with a Panasonic PLC, touch screen display, Panasonic needle-shaped photoelectric sensor, and Italian Tisch label detection sensor.

- Designed for continuous high-speed operation, supporting 24/7 production demands.

6. Intelligent Control:
- Automatic photoelectric tracking prevents labeling without a product, auto-corrects label positioning, and includes an automatic detection function to avoid label wastage.

7. Robust and Hygienic Construction:
- Made primarily of stainless steel and high-grade aluminum alloy, adhering to GMP production standards.

- Features a solid structure and a visually appealing design.

Product Details





Optional Features:

1.Thermal Coding/Printing Function: Enables date, batch number, and other essential information to be printed directly on the label during the labeling process.

2.Automatic Product Collection: Facilitates automatic collection of labeled products for streamlined workflow (customizable based on product requirements).

3.Automatic Product Feeding: Designed for enhanced automation with automatic loading of products before labeling (customized to meet specific customer needs).

After-Sales Services

1.Installation Services: Our professional technicians provide full installation services for your labeling machine. The service package covers all necessary expenses, including installation, travel, meals, and other associated costs, ensuring a smooth setup.

2.Comprehensive Training: We offer in-depth training sessions tailored to meet your operational needs, either at your location or in our factory. Designed for dealers, machine operators, engineers, and maintenance staff, the training ensures optimal equipment performance and efficiency.

3.Warranty Assurance: Benefit from our one-year warranty, which includes prompt repair services, readily available replacement parts, and immediate troubleshooting support to minimize any operational downtime.

4.Consultation Services: Our expert sales team offers free consultation services to help you find the most suitable labeling solutions for your production needs. We also provide detailed CAD drawings to assist you in planning your equipment setup effectively.

5.Technical Support: Enjoy 24/7 access to our technical support team through email or phone. Our specialists are committed to providing fast, reliable assistance to keep your operations running smoothly.

6.Spare Parts Provision: Each machine order comes with a complimentary set of essential spare parts. Additionally, we offer a comprehensive selection of high-quality spare parts available for purchase, ensuring continuous and efficient production
