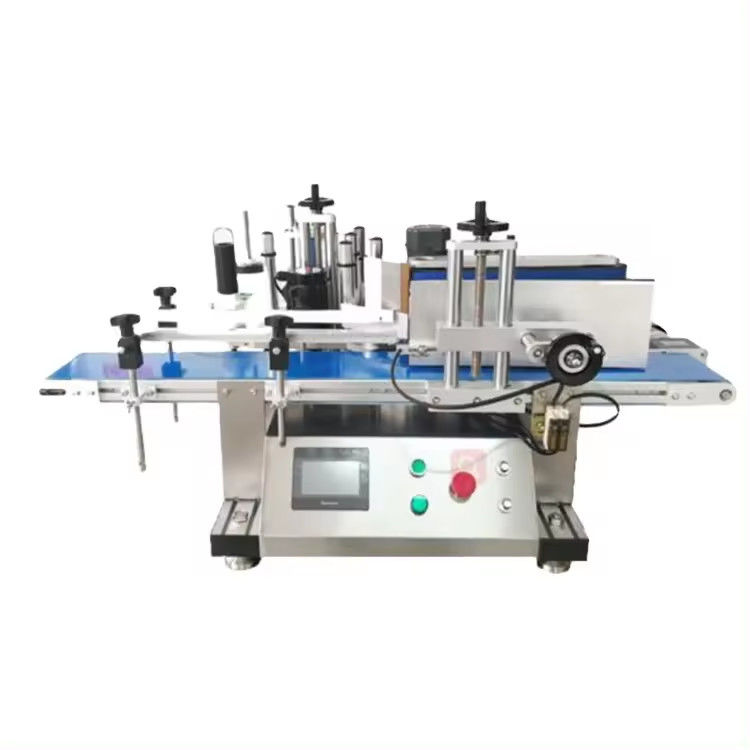

Automatic Table Top Labeling Machine
Automatic Table Top Labeling Machine is designed for accurate application of self-adhesive labels on various round containers, such as PET bottles, glass bottles, wine bottles, and vials. Its compact structure makes it an ideal solution for production environments with limited space.
The machine operates automatically and is equipped with a high-performance servo motor, ensuring fast speed and precise labeling. Built with stainless steel and aluminum alloy, it offers durability and meets industrial standards. The PLC control system with a user-friendly interface enables easy operation and quick parameter adjustment.
High-quality optoelectronic components ensure reliable detection and positioning. Suitable for industries such as food, pharmaceuticals, and daily chemicals, the machine supports both full-wrap and semi-wrap labeling. With stable bottle positioning, quick changeover, and encoder-based speed tracking, it delivers consistent and efficient labeling performance.
Main Features
1.Suitable for labeling a wide range of cylindrical containers in different sizes.
2.Labeling speed can reach up to 40 pcs/min, improving production efficiency.
3.Composed of key modules including the main unit, label feeding system, label collection system, and bottle conveying rollers.
4.Delivers high labeling accuracy with fast and stable operation.
5.Ensures smooth label application without wrinkles or air bubbles for a clean, professional finish.
6.Equipped with reliable PLC control, sensors, and high-quality electronic components for consistent performance.
7.Modular structure allows for easy maintenance and lower servicing costs.
8.Flexible adjustment system supports various bottle sizes and different labeling positions before or after processing.
Technical Parameters
|
1
|
Model
|
NP-ERL
|
|
2
|
Speed
|
20-60 pcs per minute
|
|
3
|
Accuracy
|
±0.5mm
|
|
4
|
Available Bottle Diameter
|
30-120mm
|
|
5
|
Label Width
|
25-150mm
|
|
5
|
Label Length
|
25-300mm
|
|
6
|
Label Roll Inner Diameter
|
76mm
|
|
7
|
Max.OD of label roll
|
275mm
|
|
8
|
Voltage
|
220/110V 50/60Hz
|
|
9
|
Power Rating
|
120W
|
|
10
|
Packing Size
|
1220*950*800cm
|
|
11
|
Weight
|
80Kg
|
Automatic Table Top Labeling Machine Application Scope
The Table Top Round Bottle Labeling Machine is suitable for a wide range of cylindrical products, including edible oils, sauces, wine bottles, pharmaceutical bottles, tea canisters, lotions, shampoos, detergents, perfumes, cosmetics such as lipsticks and lip glosses, as well as plastic bottles, glass bottles, aluminum cans, and metal containers.
Label Compatibility:
Supports various label types such as self-adhesive labels, promotional labels, tamper-evident labels, tube labels, vial labels, laboratory labels, and transparent labels (with dedicated photoelectric sensor support).
Labeling Types:
Capable of wrap-around labeling, half-wrap labeling, and single-side labeling to meet different packaging requirements.
High Speed Adjustment-Free Table Top Labeling Machine
This Table Top Labeling Machine provides a cost-effective solution for small to medium-scale production, especially for manufacturers handling multiple product types while maintaining consistent quality. Its compact design and straightforward operation make it highly suitable for limited workspace environments.
Equipped with an intelligent photoelectric detection system, the machine enables automatic labeling of round bottles with minimal setup—operators can complete the process with simple controls, eliminating the need for complex parameter configuration or manual speed adjustments. This reduces setup errors and improves operational efficiency.
The conveyor speed and labeling position can be easily adjusted to match different bottle sizes and production requirements. Widely used in industries such as food & beverage, pharmaceuticals, biotechnology, and daily chemicals, this tabletop model ensures stable performance and reliable labeling quality, making it a practical and efficient investment for growing businesses.
