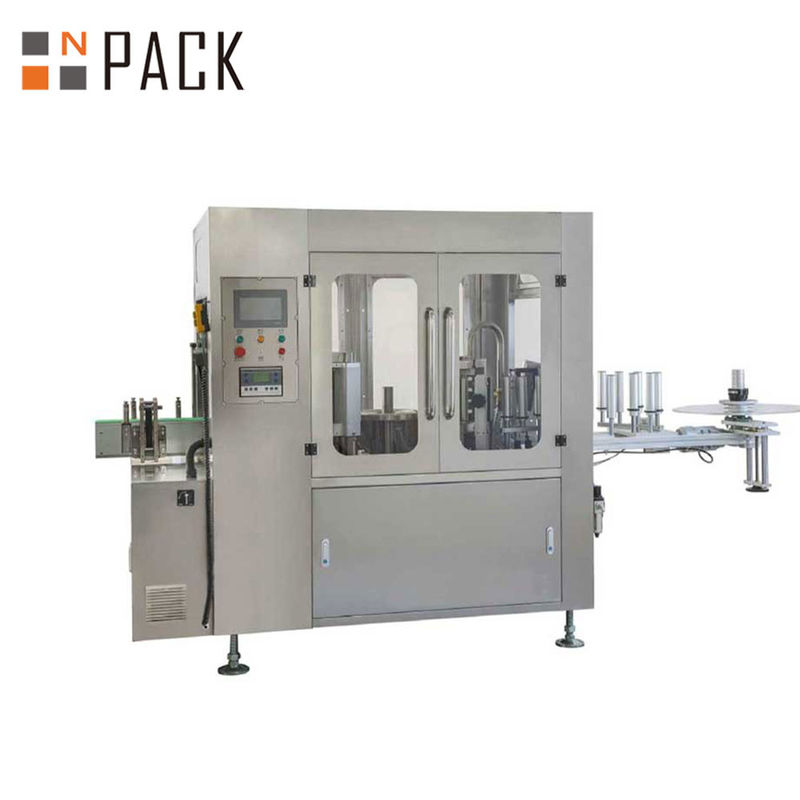

Automatic High Speed Opp Labeling Machine For Water Bottles

Automatic Bopp Labeling Machine For Water Bottle

Automatic OPP labeling machine for water bottles is designed for high-speed, cost-efficient labeling across a wide range of bottle shapes and plastic label materials. Using roll-fed OPP labels, it significantly reduces labeling costs, making it an ideal choice for large-scale bottled water production lines.

Equipped with advanced positioning technology and high-precision photoelectric sensors, the machine ensures accurate label placement on every bottle. Its automatic correction system maintains consistent alignment, even at high speeds. Integrated functions such as automatic label cutting and synchronized feeding further enhance stability and efficiency, delivering reliable, precise labeling for modern water bottling operations.

Main Feature

1.Vertical labeling structure with integrated automatic label cutting and application

2.Microcomputer-controlled variable speed system that detects bottle flow and adjusts output for stable performance

3.Star-wheel feeding mechanism ensures smooth bottle transfer without tipping at high speeds

4.Main drive combines a central controller with a frequency-controlled three-phase motor for precise transmission

5.Servo-driven label supply with synchronous tracking and vacuum drum adsorption for accurate, high-speed labeling

6.Linked transmission design enhances overall stability and precision during continuous operation

7.Electronic calibration system delivers label cutting accuracy within ±0.5 mm

8.Built-in safety protection automatically stops the machine in case of abnormal conditions or overload

9.Adjustable labeling height to accommodate different bottle sizes and formats

10.Hot melt system prevents operation if the required temperature is not reached

11.Automatic stop and alarm when labels are missing

12.Alarm and shutdown function triggered if labeling is incomplete or misapplied

Parameter

How OPP Labeling Machines Work

1.Label Unwinding

The OPP label roll is automatically unwound and smoothly guided into the labeling unit through a series of precision rollers, ensuring stable and continuous label feeding.

2.Bottle Labeling Application

As water bottles move along the conveyor, the machine applies OPP labels at high speed with precise positioning. The labeling system controls tension and alignment to ensure each label is accurately placed on the bottle surface.

3.Adhesion Process

Depending on production requirements, labels are bonded using hot melt glue or other suitable adhesive systems. The hot melt OPP labeling method is especially effective for water bottles, providing strong adhesion and long-term durability.

4.Label Finishing & Pressing

After application, bottles pass through pressing rollers that firmly secure the label onto the surface. This step eliminates wrinkles, bubbles, or misalignment, ensuring a clean, smooth, and professional finish suitable for beverage packaging.

After-Sales Service

1.Installation Service

Our experienced engineers provide on-site installation for the OPP labeling machine for water bottle production lines. The service covers equipment setup, commissioning, travel arrangements, and related support to ensure a smooth and efficient start-up.

2.Operator Training

We offer professional training for operators, technicians, and maintenance staff. Training can be conducted either at your facility or at our factory, helping your team fully understand machine operation, adjustment, and daily maintenance.

3.Warranty Coverage

All OPP labeling machines come with a one-year warranty, including technical support, spare parts replacement, and troubleshooting assistance to ensure stable and reliable operation.

4.Technical Consultation

We provide free consultation to help you select the most suitable labeling solution for your water bottling line. Detailed layout drawings (including CAD design) can be supplied to support production planning and integration.

5.24/7 Technical Support

Our technical team is available around the clock via phone or email to provide fast troubleshooting and support, helping you reduce downtime and maintain continuous production.

6.Spare Parts Supply

To ensure uninterrupted operation, essential spare parts are included with the machine. We also maintain a full inventory of high-quality replacement parts available for long-term supply and maintenance needs.
