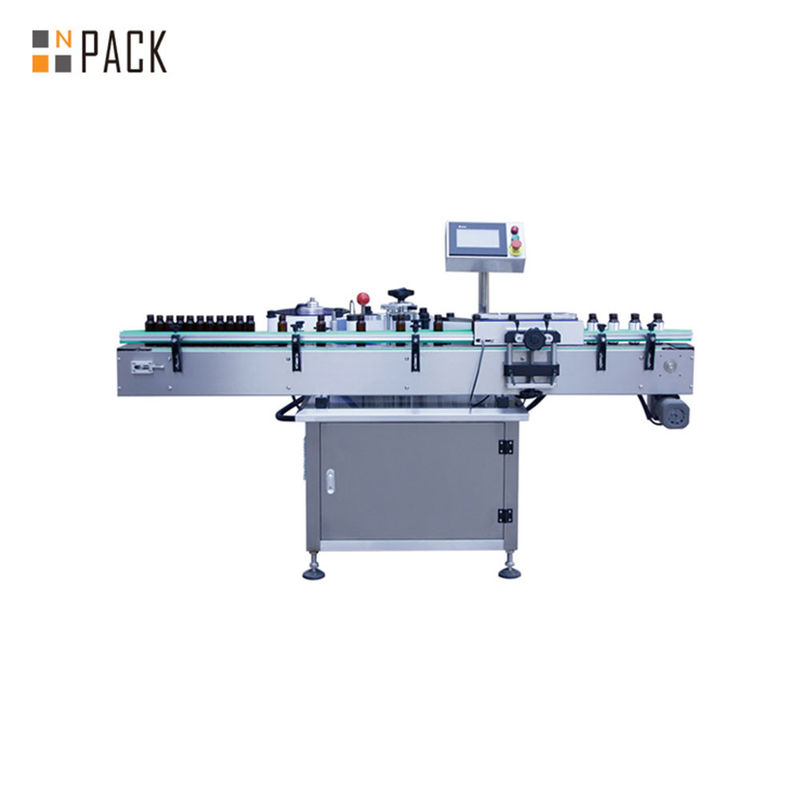

Automatic Round Bottle Self-adhesive Labeling Machine
The automatic labeling machine, is specifically designed for precise and efficient labeling of small round bottles commonly used in the essential oil, and oral liquid industries. It supports both full and partial wrap-around labeling and operates at speeds of up to 150 bottles per minute, depending on bottle and label size.
Equipped with an advanced PLC control system and a user-friendly touch screen interface, this machine ensures accurate label placement, easy operation, and minimal downtime. The system is ideal for labeling 10ml to 60ml PET or glass bottles with child-resistant caps or dropper tops.
Widely used in the e-liquid, cosmetics, pharmaceutical, and personal care sectors, the labeling machine is suitable for labeling products like eye drops, essential oils, lip balm, hand sanitizers, and more.
Key Advantages:
-
Flexible Adjustment: Multi-directional adjustments (up/down, left/right, tilt) for fast bottle changeover—GMP compliant.
-
Automatic Bottle Separation: Reduces misalignment due to bottle variation, ensuring smooth and stable operation.
-
Smart Features: Auto stop, production counter, energy-saving standby mode, production target reminder, and password-protected parameter settings for better management.
-
User-Friendly Interface: Color touchscreen with Chinese/English options, memory for up to 50 product settings, one-touch switching, and real-time fault alerts.
-
High Stability: Uses premium imported sensors for accurate label and product detection. Modular stainless steel and aluminum structure supports 24/7 operation.
-
Hygienic Design: Made of SUS304 stainless steel and T6 aluminum—rust-proof and GMP standard compliant.
| Model / technical parameters |
NP-RL |
| Labeling speed (pcs/min) |
40-150(relate to material and label size) |
| Labeling accuracy(mm) |
±1.0mm
(material and label sizes are not counted in) |
| Label size(mm) |
(L)20-280mm (H)30-144mm |
| Material size (mm) |
Φ20-φ100mm (H)40-200mm |
| Roll inside(mm) |
φ76mm |
| Roll outer diameter(mm) |
Max:Φ350mm |
| Machine size (mm) |
(L)2000*(W)850*(H)1450(mm) |
| Power supply |
AC220V 50Hz/60Hz 1500W |
Product Details
Optional Add-ons:
-
Date Coder: Prints batch number, expiry, and production date in sync with labeling.
-
Inkjet Printer: Compatible with major brands for label printing.
-
Transparent Label Sensor: German Leuze sensor required for clear labels.
-
Code Reader: Scans QR codes/barcodes for product tracking.
FAQ
1. Labeling Machine Fails to Start
Possible Causes:
Solutions:
2. Touch Screen Unresponsive or Displays Abnormally
Possible Causes:
Solutions:
3. Label Misalignment
Possible Causes:
Solutions:
-
Calibrate the photoelectric sensor
-
Verify and adjust label size parameters
-
Check and tighten conveyor belt tension
4. Label Wrinkling or Falling Off
Possible Causes:
Solutions:
